Linksys SRW2024 User Manual

20
Chapter 5: Using the Web-based Utility for Configuration
Sys. Info. (System Information) Tab - Time Synchronization
16- or 24-Port 10/100/1000 Gigabit Switch with WebView
Status. This indicates how the entry was created, Dynamic (dynamically learned) or Static (statically configured).
When you click the paper and pencil icon, you can add a forwarding interface by configuring these settings:
Interface. Select the appropriate interface, either a port number or LAG (Link Aggregation Group) number.
MAC Address. Enter the MAC address for this entry.
VLAN ID. If you want to use a VLAN ID, then select the radio button and enter the ID number of the VLAN.
VLAN Name. If you want to use a VLAN Name, select the radio button and then enter a name here.
Status. Select the status of your entry, Permanent, Delete On Reset, or Delete On Time Out.
Click the Submit button to save your changes.
Sys. Info. (System Information) Tab - Time Synchronization
The Time Synchronization screen allows you to configure the time settings for the Switch.
Clock Source. If you want to set the system clock via an SNTP (Simple Network Time Protocol) server, then select
SNTP. Otherwise, select None.
Local Settings
Date. Specify the system date here.
Local Time. Specify the system time here.
Time Zone Offset. Enter the difference between Greenwich Mean Time (GMT) and local time.
Daylight Saving. Select Daylight Saving to enable it on the Switch. If the Switch should use US daylight
savings, then select USA. If the Switch should use EU daylight savings, then select European. If it should use
another kind of daylight savings, then select Other and complete the From and To fields.
Time Set Offset. For non-US and European countries, specify the amount of time for daylight savings. The default
is 60 minutes.
From. If you selected Other for the Daylight Saving setting, then enter the date and time when daylight savings
begins.
To. If you selected Other for the Daylight Saving setting, then enter the date and time when daylight savings ends.

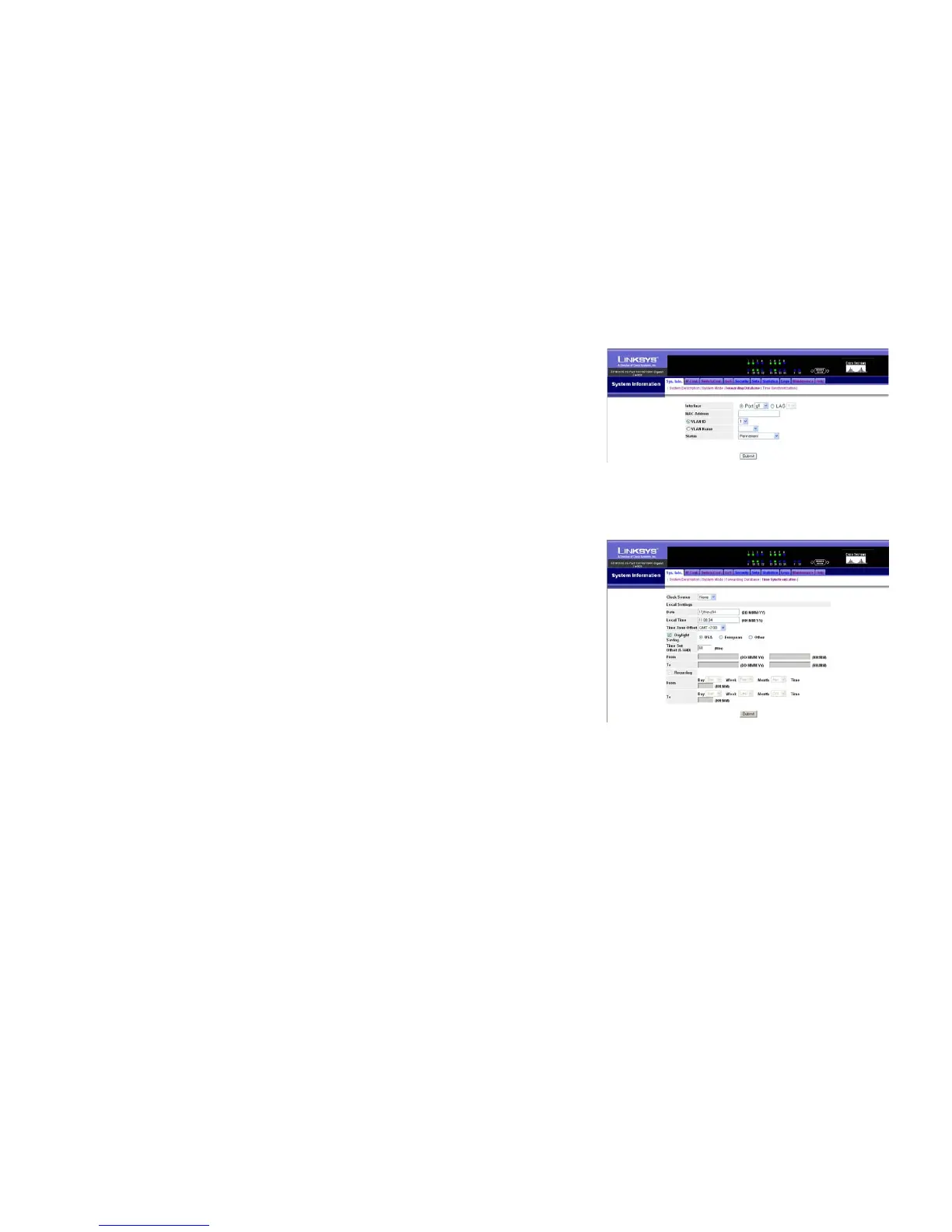

Figure 5-5: Forwarding Database - Add Entry
Figure 5-6: System Information - Time Synchronization

Linksys SRW2024 Specifications

General

Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
QoS	Yes
Management	Web-based, SNMP
Jumbo Frame Support	Yes
Features	IGMP snooping, Port mirroring, Link aggregation
Power Supply	Internal
Dimensions	440 x 44 mm
Ports	24 x 10/100/1000 Mbps
