Chapter 4: Using the Console Interface for Configuration
Overview
16- or 24-Port 10/100/1000 Gigabit Switch with WebView
Chapter 4: Using the Console Interface for Configuration
Overview
The Switch features a menu-driven console interface for basic configuration of the Switch and management of
your network. Before you can use the console interface, you will need to configure the HyperTerminal application
on your PC.
Configuring the HyperTerminal Application
1. Click the Start button. Select Programs and then Accessories. Select Communications. HyperTerminal
should be one of the options listed in this menu. Select HyperTerminal.
2. On the Connection Description screen, enter a name for this connection. In the example, the name of
connection is SRW2016. Select an icon for the application. Then click OK.
3. On the Connect To screen, select a port to communicate with the Switch, COM1, COM2, or TCP/IP.

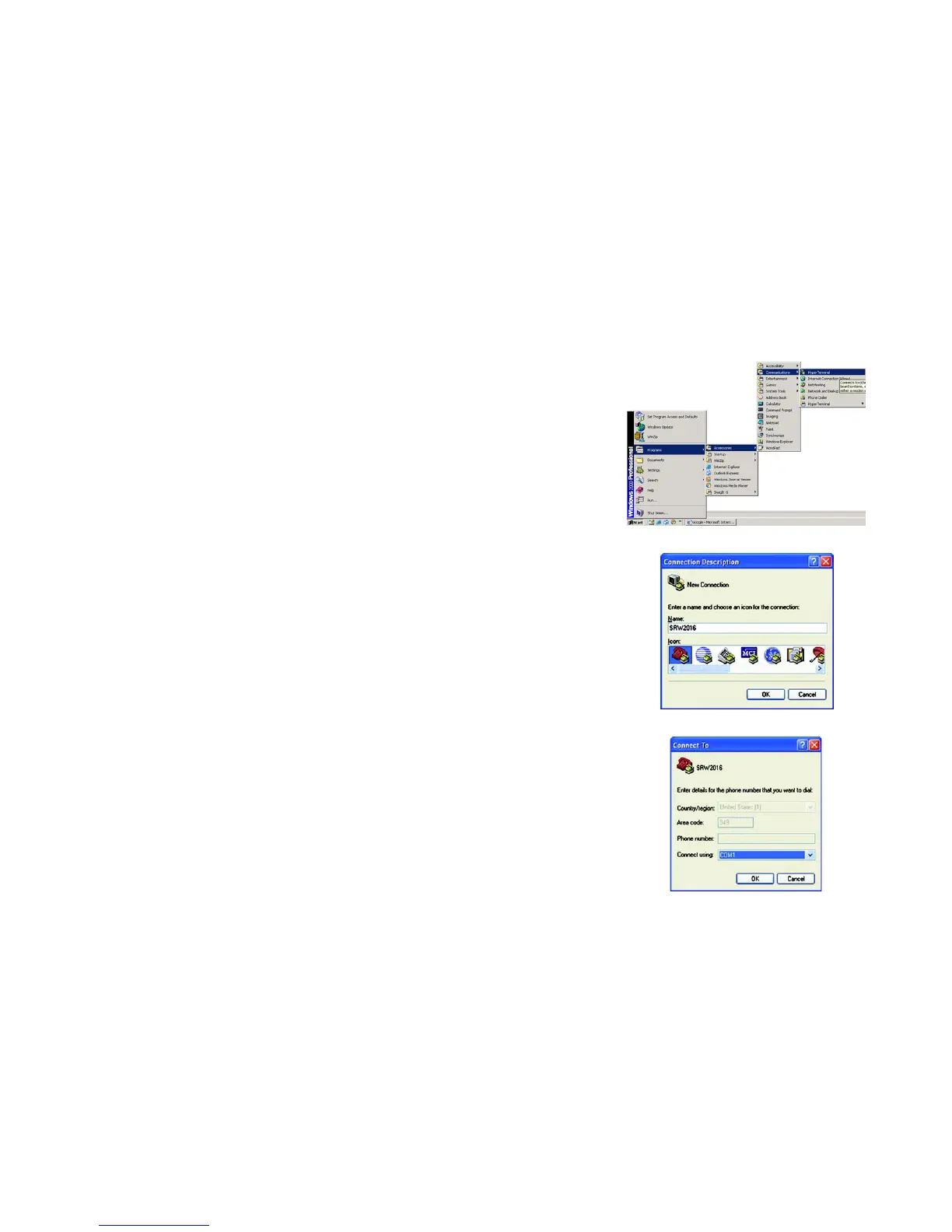

Figure 4-2: Connection Description
Figure 4-1: Finding HyperTerminal
Figure 4-3: Connect To

Linksys SRW2024 Specifications

General

Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
QoS	Yes
Management	Web-based, SNMP
Jumbo Frame Support	Yes
Features	IGMP snooping, Port mirroring, Link aggregation
Power Supply	Internal
Dimensions	440 x 44 mm
Ports	24 x 10/100/1000 Mbps
