WAP4410N User Guide 41
The Status - System Performance Tab
Configuring the Wireless-N Access Point
The Status - System Performance Tab

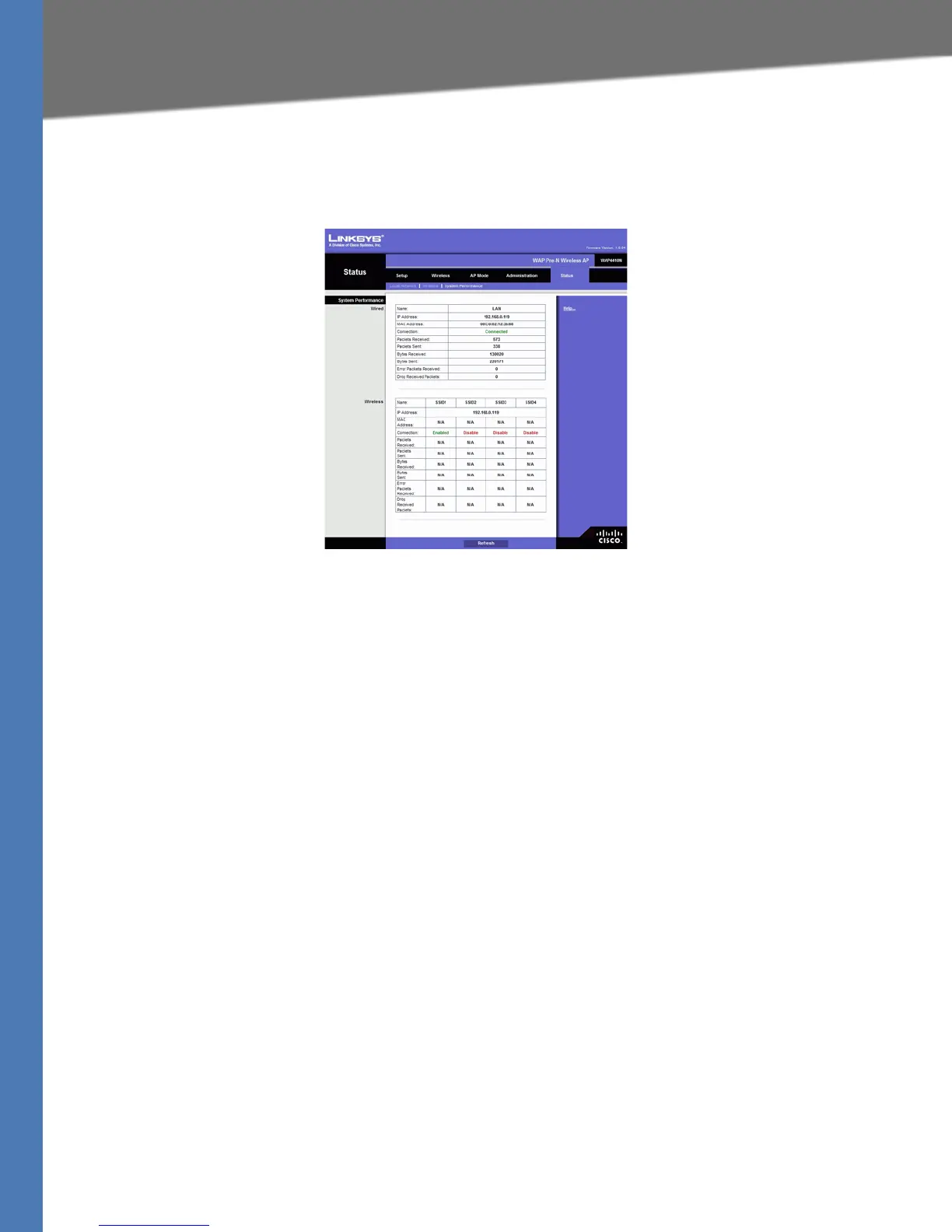

The System Performance screen displays the Access Point’s status information for its current
settings and data transmissions.
System Performance
Wired
• Name—This indicates that the statistics are for the wired network, the LAN.
• IP Address—The Access Point’s local IP address is displayed here.
• MAC Address—This shows the MAC Address of the Access Point’s wired interface.
• Connection—This shows the status of the Access Point’s connection for the wired
network.
• Packets Received—This shows the number of packets received.
• Packets Sent—This shows the number of packets sent.
• Bytes Received—This shows the number of bytes received.
• Bytes Sent—This shows the number of bytes sent.
• Error Packets Received—This shows the number of error packets received.
• Drop Received Packets—This shows the number of packets being dropped after they
were received.
Wireless
• Name—This indicates the wireless network/SSID to which the statistics refer.
• IP Address—The Access Point’s local IP address is displayed here.
