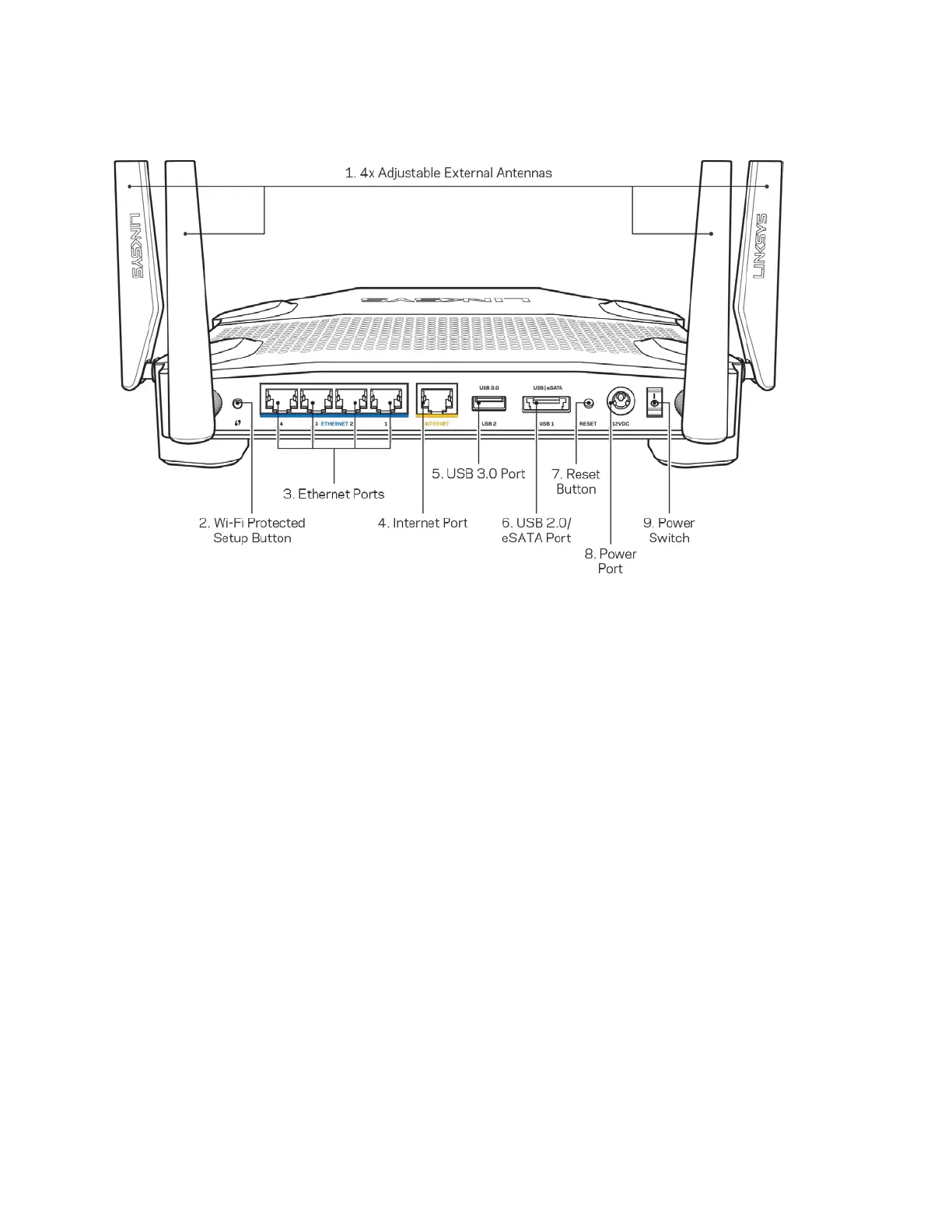

Adjustable antennas (1)
—The four adjustable external antennas should be connected to the
router before powering it on. Twist the antenna connector clockwise onto the antenna port on the
router.
Note
—
For best performance, position the side antennas vertically as shown in the picture on the
left.
Wi-Fi Protected Setup™ button (2)—Press to configure wireless security on Wi-Fi Protected
Setup-enabled network devices.
Ethernet ports (3)—Connect ethernet cables to these blue gigabit (10/100/1000) ports, and to
wired devices on your network.
Note
—
For best performance, use CAT5e or higher rated cables on the ethernet ports.
Internet port (4)—Connect an ethernet cable to this yellow gigabit (10/100/1000) port, and to a
broadband internet cable/DSL or fiber modem.
Note
—
For best performance, use CAT5e or higher rated cables on the Internet port.
