Cross-flow fan unit type GSG-NV1 / 2
14 - 64
010980-26-E BA GSG-NV1_2 / 23.03.2012
Recycling filter – mesh width 0.508 mm:
 The recycling filter in the return
flow of the recycled spray must
be checked several times daily
and cleaned, if necessary.

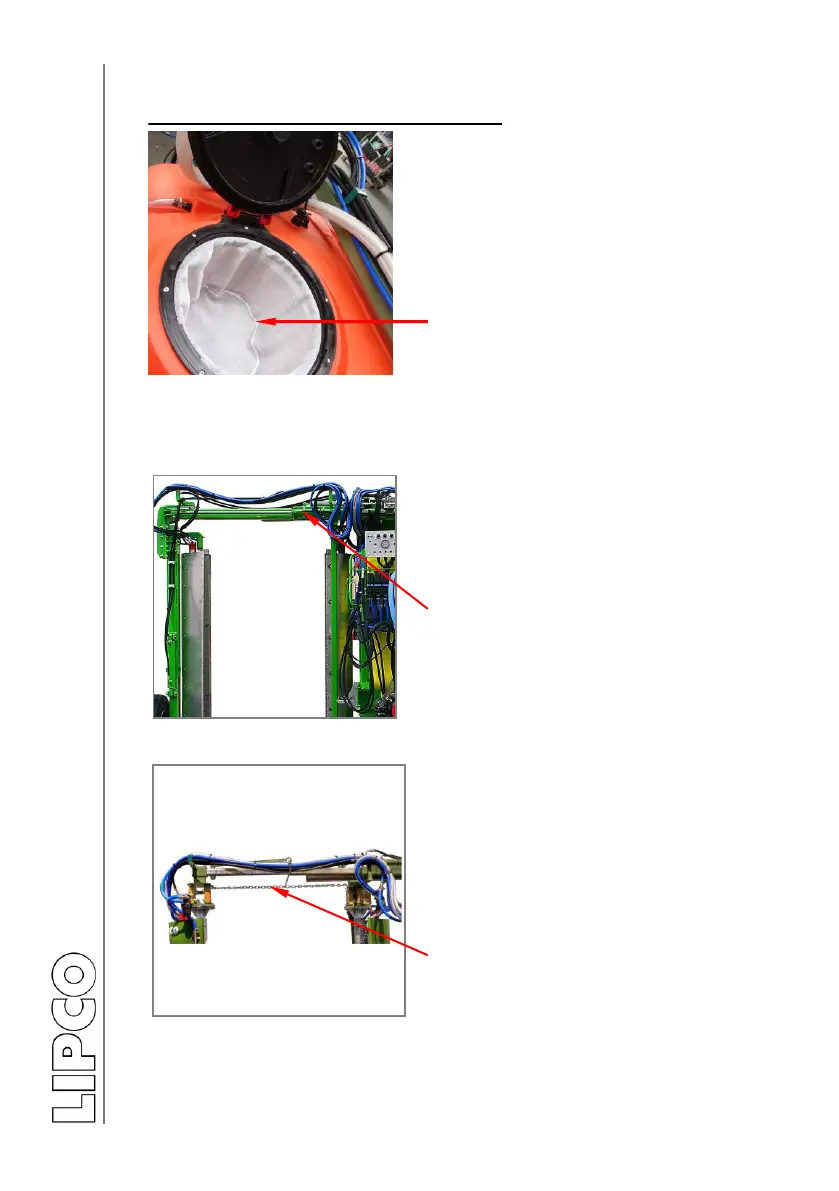

Recycling filter insert
Fig. 4
10.2. Fan width adjustement
 The fan width is adjusted man-
ually from the tractor via hy-
draulic, double-action control
valve.
Hydraulic cylinder for tunnel
width adjustment.
Fig. 5
Row width can be adjusted by
reallocating adequate chain.
Chain
Fig. 6
