Rev: 10.05.18
Page 5
CCD-0001632

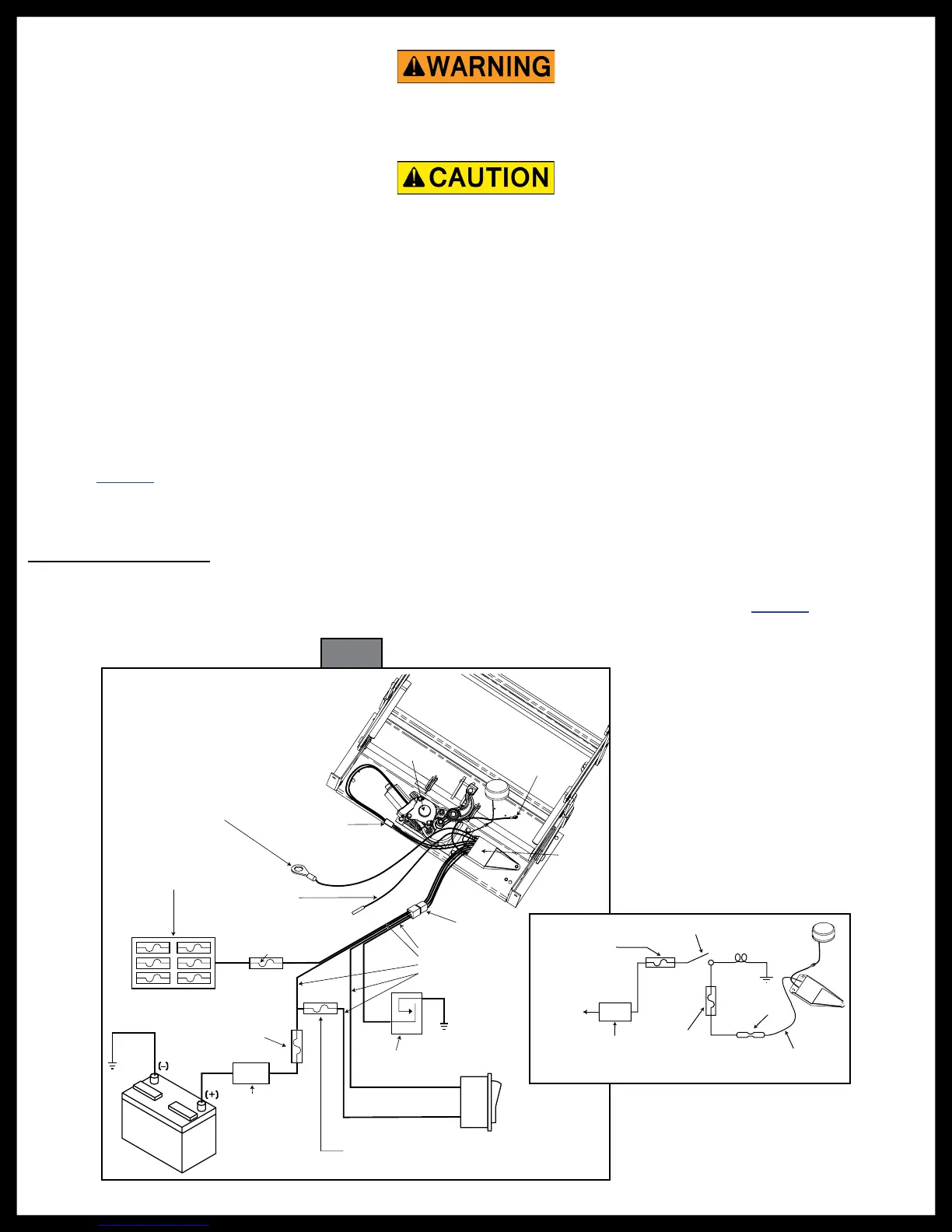

Vehicle Wiring
Motor
assembly
Understep light
(not available on
all step models)
12 AWG green
ground to step top
Control unit
(black)
Four-way
connector
16 AWG brown
16 AWG yellow
12 AWG red
16 AWG white
Step
Switch
Chassis ground
Normally OPEN
magnetic door switch
20-25 amp fuse or
curcuit breaker required
Battery
disconnect
box/switch
IMPORTANT:
If the switch is
'OFF' the step
will not
operate.
Chassis
ground
12 volt DC
battery
Fuse block
IMPORTANT:
The yellow wire must go to a
terminal marked IGN (ignition)
or to another terminal that is hot
when the ignition is turned on.
Two-way
connector
12 AWG green ground wire
must be securely attached to
the chassis for step to operate
16 AWG purple
optional step light switch
may be connected to porch
light switch (see Inset 10A)
5-6 amp maximum fuse or
circuit breaker required
5-6 amp maximum fuse or
circuit breaker (not supplied)
Step Wiring
Battery disconnect
box/switch
IMPORTANT: If the
switch is 'OFF' the
light will not operate.
Porch light switch
Step Light
Control Unit
Butt connector
Porch light
To Battery
Purple wire
from Control Unit
Alternate
fuse location
Fuse location
1 amp max
or circuit breaker required
(not supplied)
Fig. 1
NOTE: Step assembly illustrations should be used only for general components identification.
The following Step Test Procedures have been provided to troubleshoot and test all of the Kwikee® Automatic
Electric Step functions. They are designed to initially check the step's basic functions separately from the RV wiring
to determine whether or not the step is malfunctioning. The following procedures test the various components of
the step until the source of the malfunction is located. Using these procedures will shorten and reduce the time
spent troubleshooting.
Some portions of the test procedures require additional equipment. This equipment includes: a voltmeter, a well
charged 12 volts DC automotive battery, and a 4-way connector/pigtail Part Number 909306000 (Kwikee®) or Part
Number 369243 (LCI®).
If you need assistance, contact Lippert Components, Inc. Customer Service at 1-574-537-8900.
Step Test Procedure
1. Inspect the step for visible damage that might restrict the step operation.
2. Obtain a 4-way pigtail connector Part Number 909306000 (Kwikee®) or Part Number 369243 (LCI®).
Troubleshooting
12 volt automotive batteries contain sulfuric acid which can cause severe burns. Avoid contact with
the skin, eyes and clothing. 12 volt automotive batteries produce hydrogen gas which is explosive;
keep cigarettes, open ames and sparks away from the battery at all times.
Keep ngers, arms, and legs clear of step mechanism while performing these tests. Do not allow the
battery terminals to come in contact with the step.
