4. At this point, an alarm will sound and the LCD display will read "**ZERO POINT CALIBRATION** ENTER
to Set, POWER to Exit."
5. Press ENTER (Fig. 1C) to set the Zero Point.
6. Screen will then display "PLEASE WAIT."
7. Alarm will sound and the screen will display "ZERO POINT SUCCESSFUL."
8. LCD will display "configuring air feature".
9. Control will then turn off.
Fig. 1
A
B
E
K
C
D
F
H
G
J
I

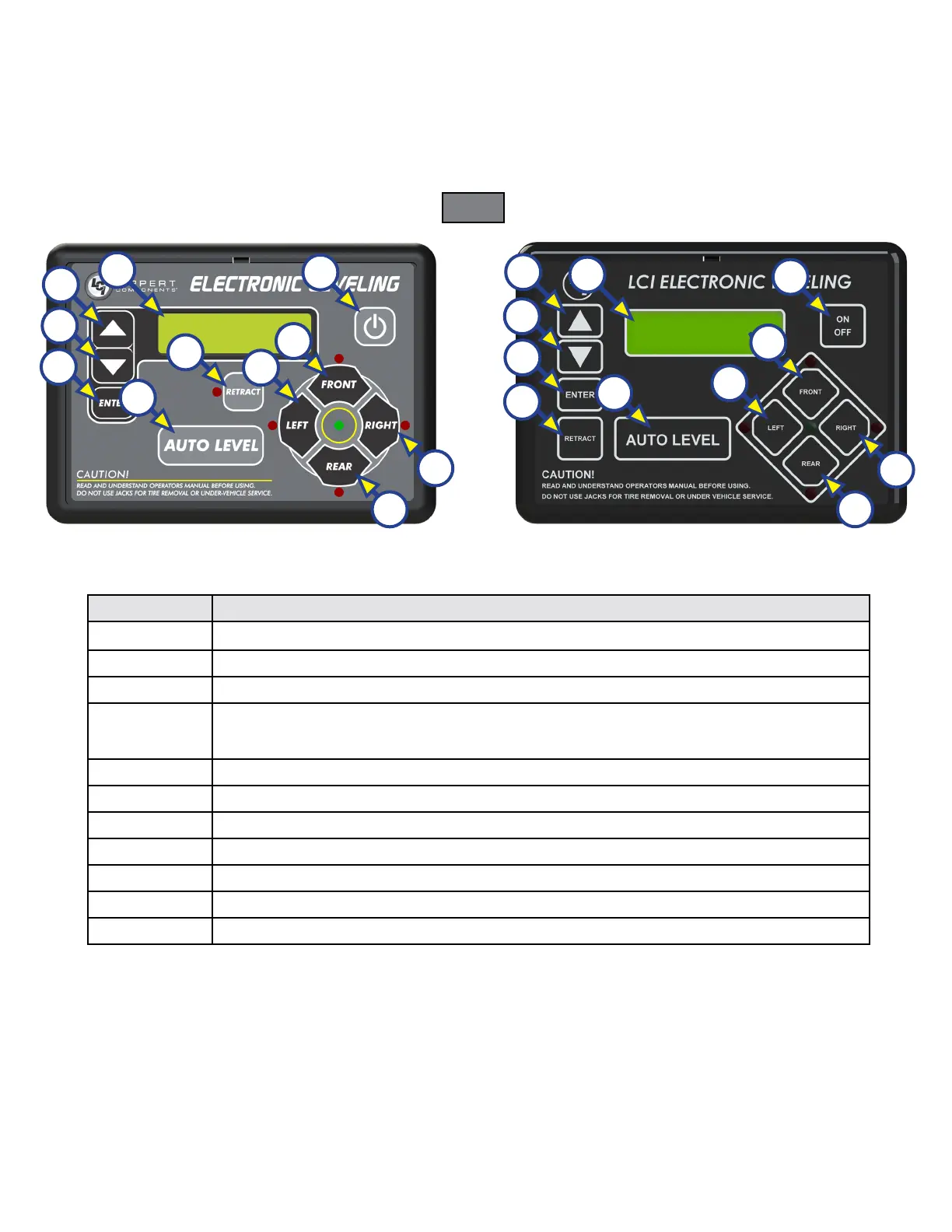

Callout Description
A Up Arrow - Scrolls up through the menu on LCD.
B Down Arrow - Scrolls down through the menu on LCD.
C ENTER - Activates modes and procedures indicated on LCD.
D
RETRACT - Places leveling system into retract mode. - Manual mode ONLY
Press and hold for several seconds to activate Auto Retract Function.
E LCD Display - Displays procedures and results.
F AUTO LEVEL - Places leveling system into auto level mode.
G FRONT - Activates both front jacks in manual mode.
H LEFT - Activates left rear jack in manual mode.
I RIGHT - Activates right rear jack in manual mode.
J REAR - Activates both rear jacks in manual mode.
K Power Button - Turns leveling system on and off.
A
B
E
K
C
D
F
H
G
J
I
Gray
Black
NOTE: Units manufactured before Jan. 2018 will utilize the black touchpad.
