Lippert Components Smart Jack - Manual Override

Rev:11.08.19 Page 38 CCD-0001573-08
Manual Override
Top of Jack Motor Override:
Tools needed: 3/8” drive ratchet and extension (no socket)

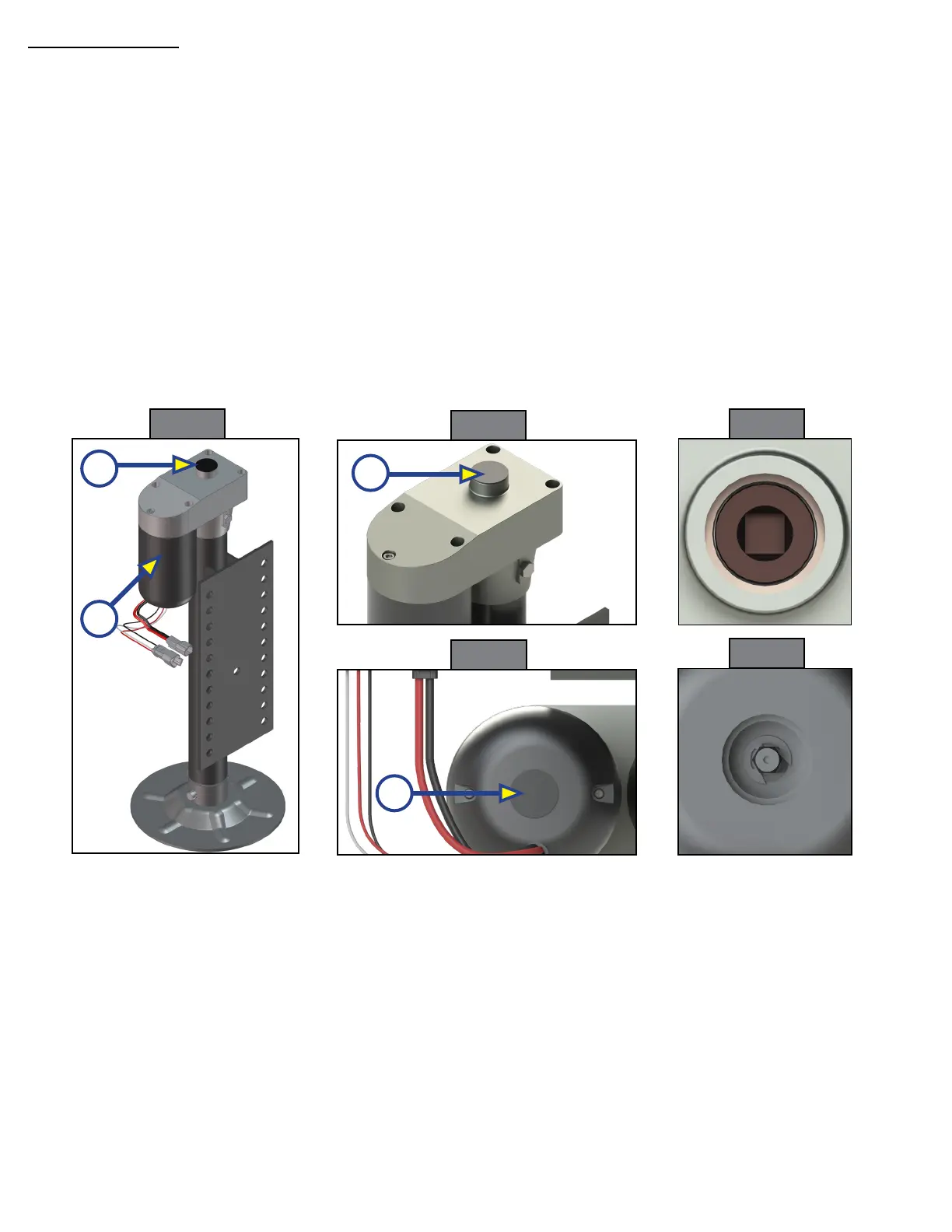

1. Find the port on the top of the jack motor (Fig. 12A).
2. Remove the rubber plug (Fig. 13A).
3. Insert the 3/8” drive ratchet into the port (Fig. 14).
4. Turn the override until the jack extends or retracts to desired position.
Fig. 12
Fig. 13
A
Fig. 14
Fig. 15
Fig. 16
A
A
B
Bottom of Jack Motor Override:
Tools needed: 3/8” drive ratchet and extension, 5/16” socket
1. Find the port on the bottom of the jack motor (Fig. 12B).
2. Remove the rubber plug (Fig. 15A).
3. Insert the 5/16” socket into the port (Fig. 16).
4. Turn the override until the jack extends or retracts to desired position.
