Rev:11.08.19 Page 154 CCD-0001573-08

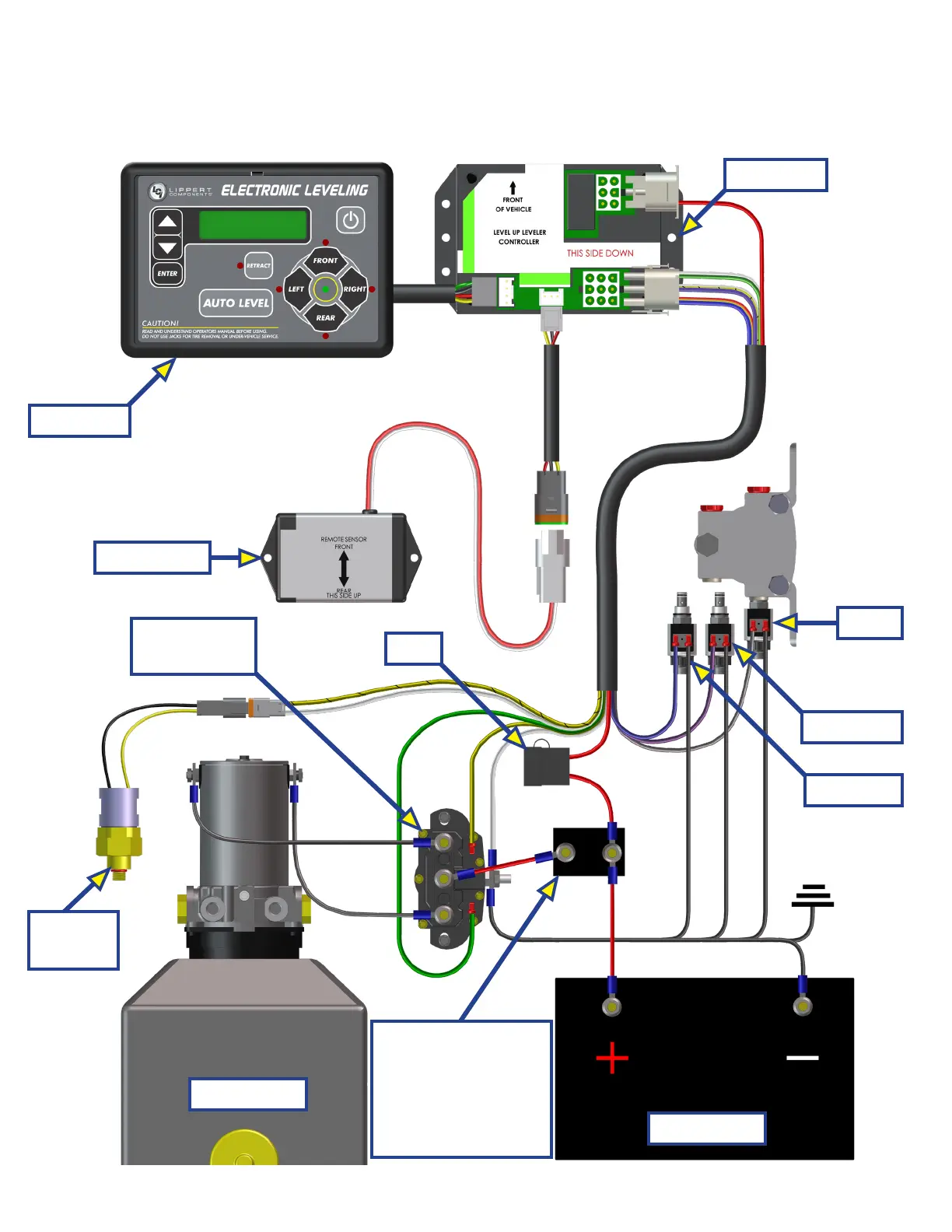

6-Point Wiring Diagram

Controller

Touchpad

Rear Sensor

Pressure

Switch

Power Unit

Battery

Circuit Protection

requirement is 50-

100 A as needed by

RVIA standards and

OEM requirements.

Fuse

Curb Side

Road Side

Valve

Dual Polarity

Solenoid
