Solera
®
Classic Awning
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0001254
Installation
NOTE: All fasteners supporting the awning assembly
MUST have a backer within the structure of the wall of the
unit. Refer to unit’s manufacturer for proper location.
Awning Rail Installation
NOTE: Awning rail not included.
If necessary, install awning rail as follows:
1. Position the awning rail along the line where the roof and
wall meet.

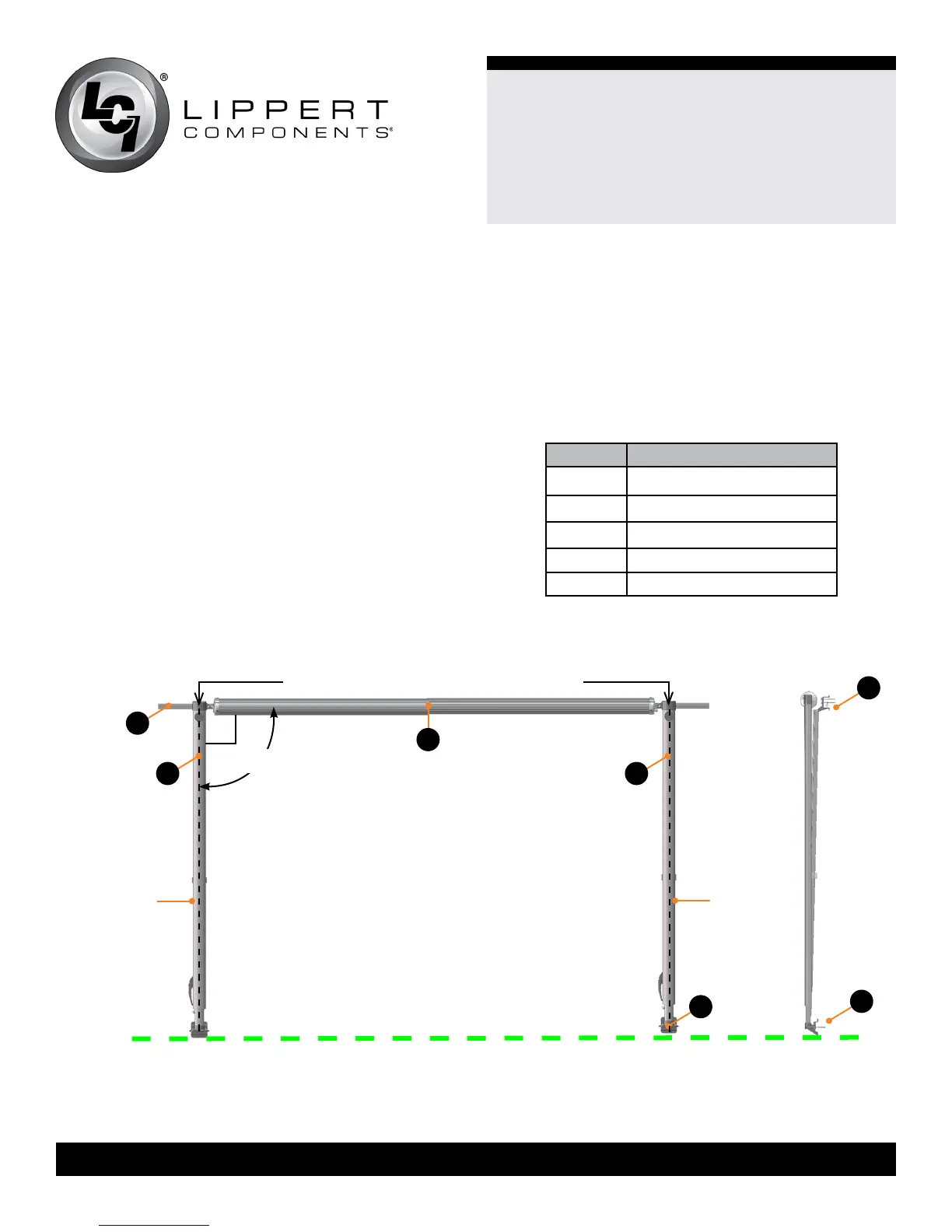

NOTE: The awning rail MUST be level and parallel with the
oor line of the unit (Fig.1).
Floor Line
awning width = bolthead-to-bolthead
Side View
Front Facing View
A
B
E
D
D
B
90°
Fig.1
C
dotted line
= vertical
centerline
dotted line
= vertical
centerline
2. After determining the awning rail’s proper location, mark
its position with a non-permanent method of marking.
3. Seal the back of the awning rail with silicone sealant or
Butyl tape.
4. Align the awning rail on the wall and secure with #10 x
¾” screws, using all fastener holes.
Letter Description
A Awning Rail
B Support Arm Assembly
C Roll Tube Assembly
D Lower Mounting Bracket
E Upper Mounting Bracket
Awning Rail Assembly Parts
