7
lci1.com 574 - 537- 8900 Rev: 03.16.18
Solera
®
Power Awning
Installation and Owner’s Manual
(For Aftermarket Application)
CCD-0001261

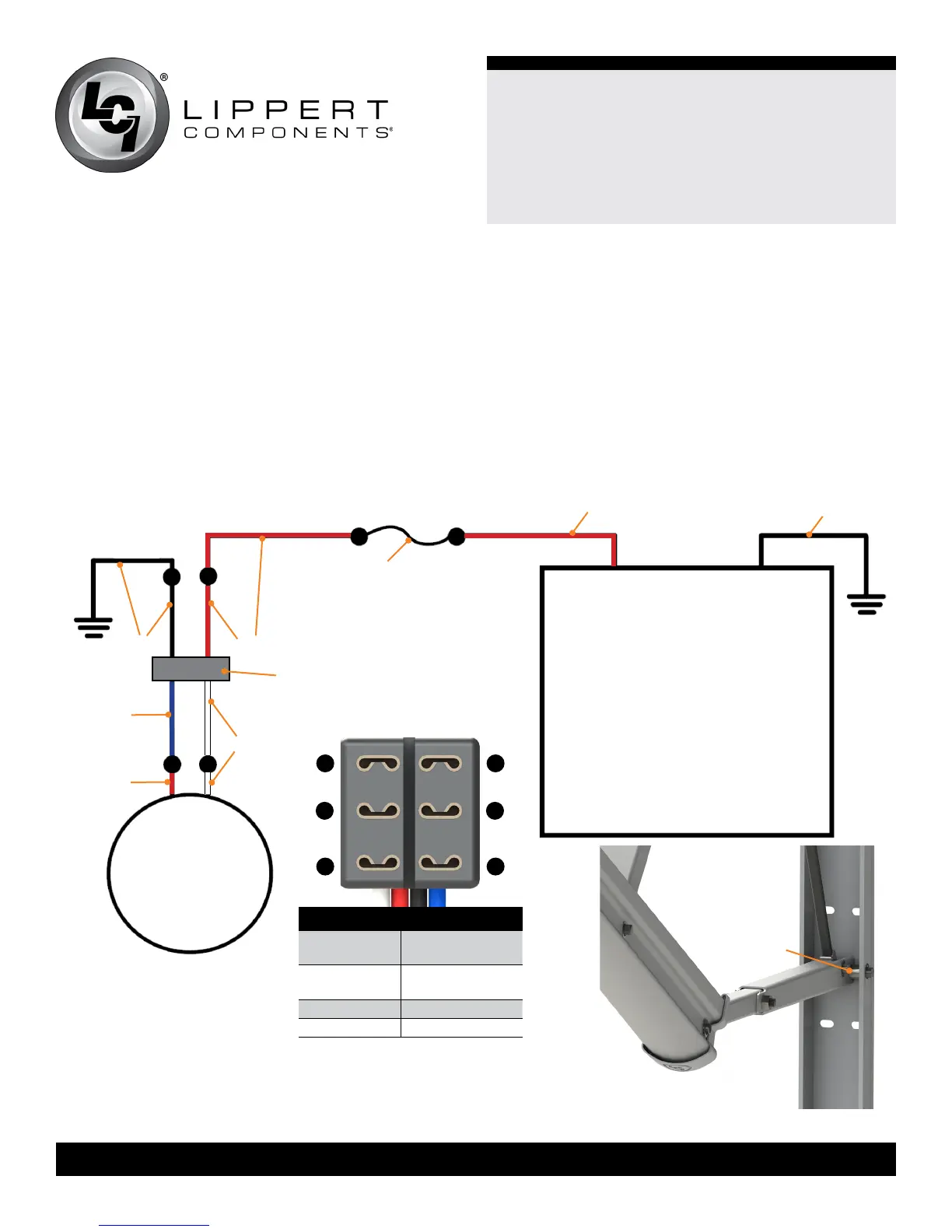

Awning Wiring
Solera Power Awning motors come stock with an internal
6A auto-reset breaker. If this breaker trips, it will reset
in approximately 30 seconds. LCI recommends that the
awning be wired into a 15A circuit breaker.
All wire shall be 14 AWG or higher AWG as necessary to
provide 12V minimum at all times to the LCI-supplied power
cable.
1. Pull the wires from the unit through the support arm
assembly. These wires may be located at the bottom or the
top of the support arm assembly.
2. Connect wiring from the unit to the switch and the
awning drive head per the wiring diagram (Fig.9).
NOTE: Check the manual rocker switch for normal
operation. If the awning is running in reverse of what the
switch indicates, reverse the wires.
NOTE: To prevent pinching of the wires, make sure all
wires are routed on the outside of the pin that secures the
pitch arm to the mount arm (Fig.10).
Fig.9
white
power
15A circuit breaker per
RVIA code (OEM supplied)
ground
manual
rocker
switch
motor
battery, power
source or converter
red
blue
red
black
Fig.10
wires
routed
outside
pin
End View of Wiring Harness
Red
*Jumper wire
1 to 6
Black
*Jumper wire
4 to 3
White 2
Blue 5
1
2
3
4
5
6
*Jumper wires are internal
