Rev: 03.26.20 Page 6 CCD-0001371
Falling slide topper access brackets can cause personal injury, product and/or property damage.
Slide topper access brackets are installed loose on the access plate until nal installation. Make sure
access brackets are secure enough to prevent falling from the access plate.
Installing the Solera Slide Topper Access Bracket
NOTE: The Solera Slide Topper Access Bracket can be installed in two different positions. The lower
position (Fig. 8A), first extrusion from the top of the access bracket, is used for regular clearance.
The higher position (Fig. 9A), second extrusion from the top of the access bracket, is used if the
slide topper requires extra clearance.
NOTE: If installing the slide topper access plate on the T-molding, see "Installing Solera Slide Topper Access
Plate" section (Fig.6), use the first extrusion from the top of the access bracket method (Fig. 8A).

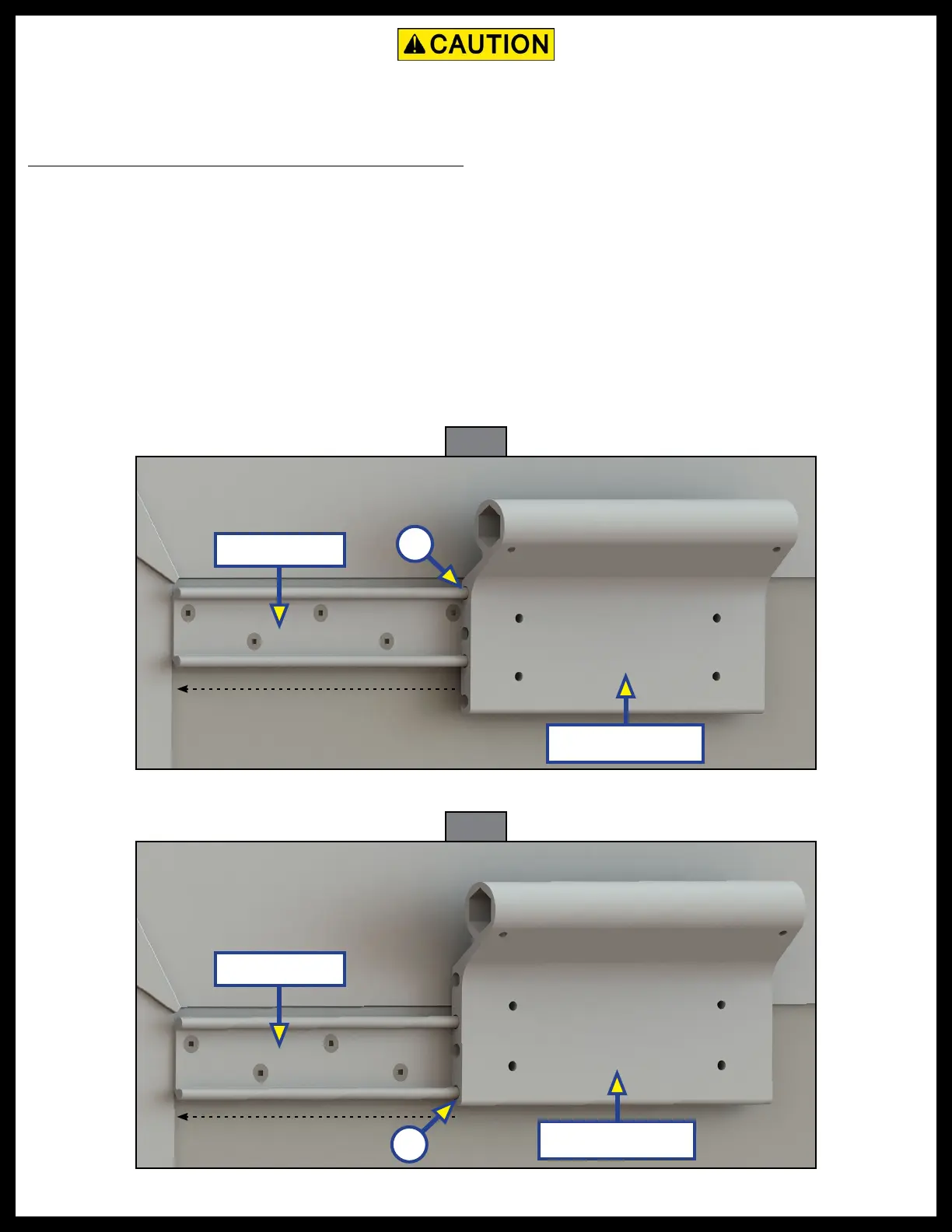

1. Slide an access bracket onto an access plate at the appropriate position (Fig. 8 or Fig. 9) at both ends
of the slide room.
Fig. 8
Fig. 9
Access Bracket
Access Bracket
Access Plate
Access Plate
A
A
To Next Page
