Installation of Solera Slide Topper Assembly

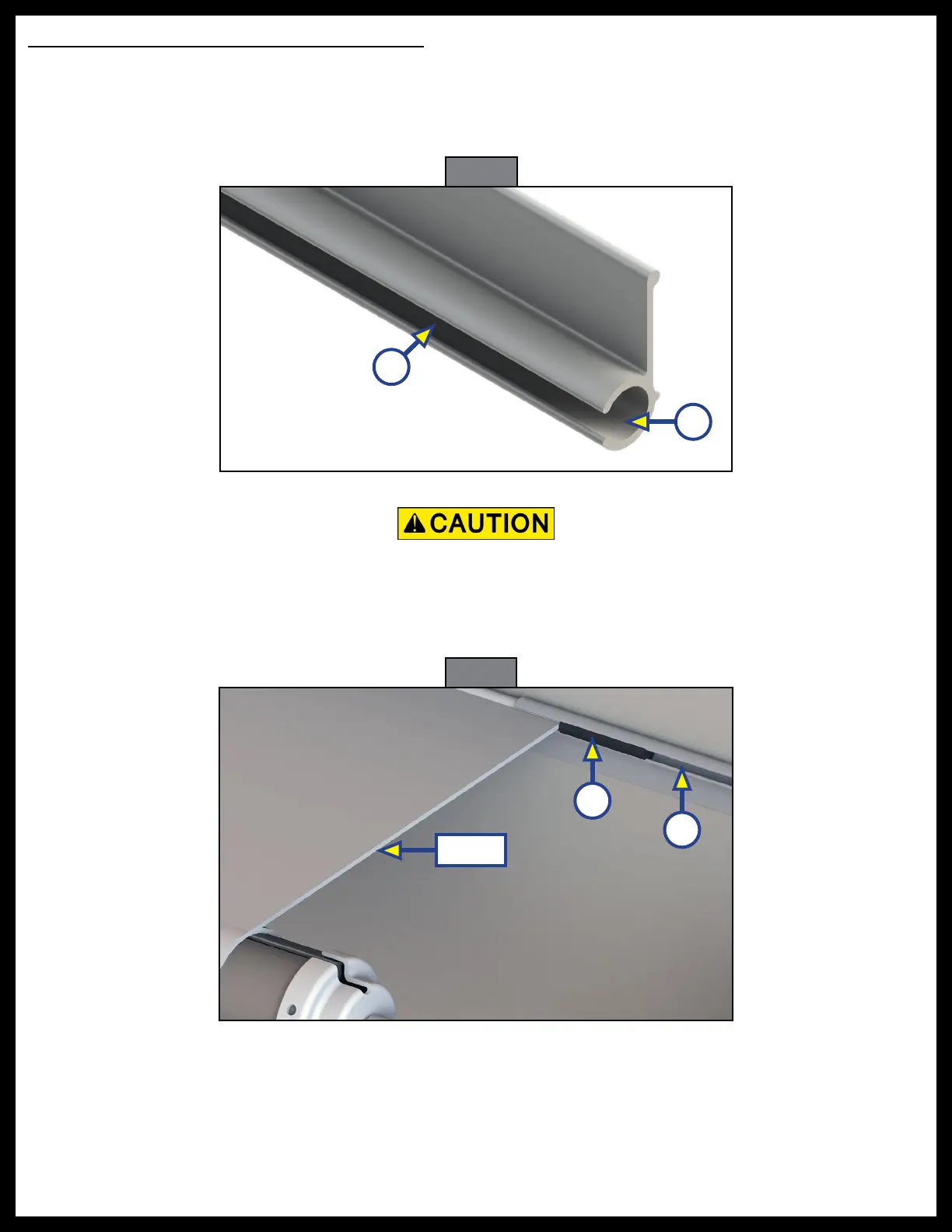

1. To prepare for fabric installation, use a screwdriver to spread open either end of the awning rail on the
installation end (Fig. 10A).
2. To protect the fabric from damage during installation, file any sharp edges or burrs from the awning rail.
3. Spray the inside of the awning rail channel with silicone lubricant (Fig. 10B).
A
B
Unrolling the fabric more than one turn will cause the slider to lose tension and create slack when closing
the slide room. Make sure to leave the slide room closed or not to extend more than 6”.
Fig. 10
4. Remove packaging from the roll tube and unroll a small portion of fabric, no more than one turn.
5. Using at least two people, feed the polycord (Fig. 11A) on the fabric through the awning rail
channel (Fig. 11B).
Fig. 11
Fabric
A
B
