Lippert Components Solera User Manual

3
lci1.com 574-537-8900 Rev: 03.21.19
Solera
®
Universal Hardware
Manual Awning to
Solera 18V Power Awning
(For Aftermarket Applications)
CCD-0001267

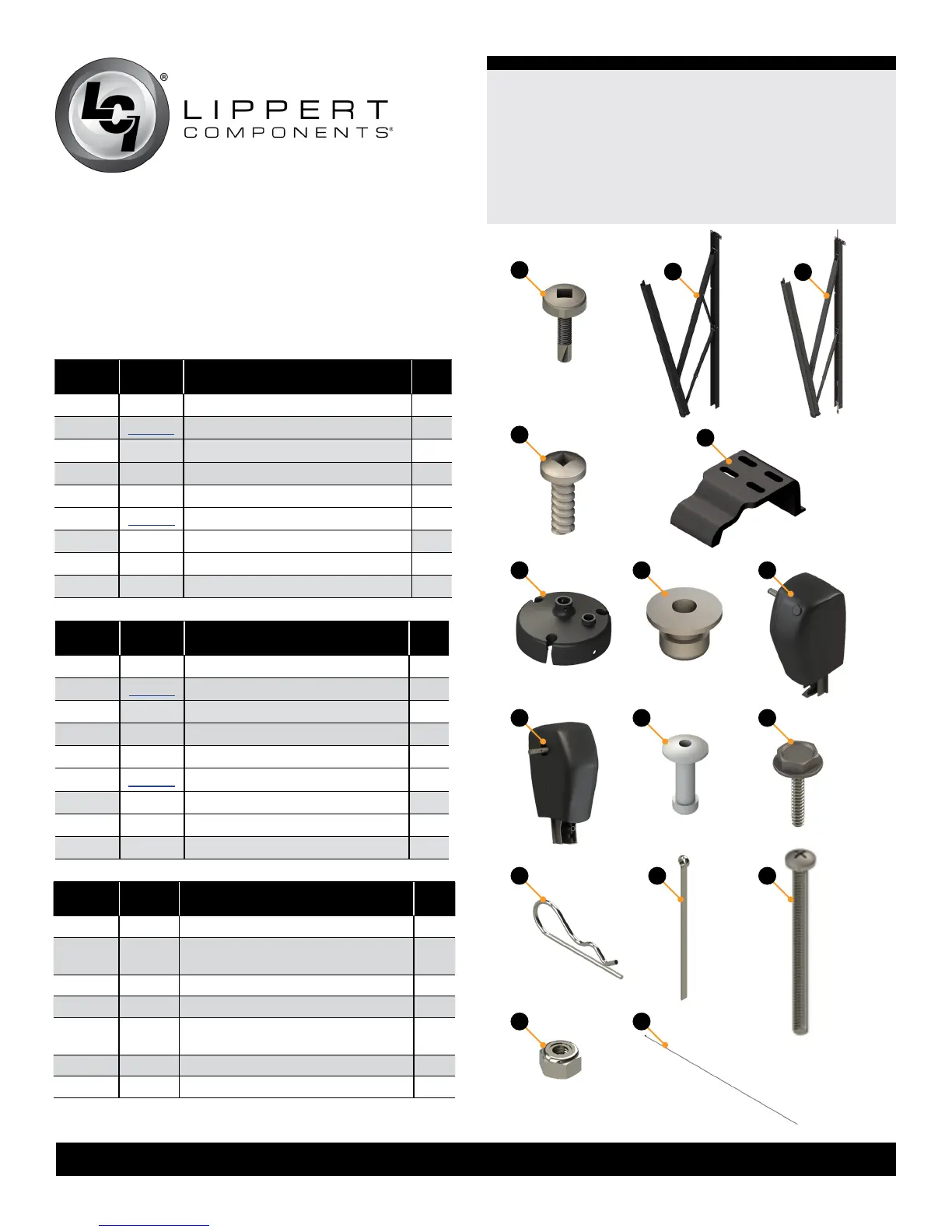

Parts List
Callout PN
Solera Power 18V 69” Kit
Common Parts
Qty
J 237315 Rivet, 3/16” x 1.3” 8
K
281079 Screw, #6-20 x 1/2” Self-Drilling
Hex Washer
2
L 298760 Hairpin Cotter Pin, 0.093” x 2-5/16” 4
M 347119 Cotter Pin, 1/8” x 3” 2
N
384905 Screw, #10 - 32 x 2 1/2” Stainless Steel
Pan Head
2
O 384906 Nylon Locking Nut, #10 - 32 2
P 438247 Cable Tie, Standard, NYL - 30 2
Callout PN
Solera Power 18V 69” Kit
434729 Black
Qty
A 276611
Screw, #8-18 x 1/2” Pan Head
6
B 281154
Support Arm Assembly
1
C 656484
Support Arm Assembly - Battery Pack
1
D 360575
Screw, #8 - 32 x 1/2” Pan Head
2
E 384965
Bracket, Upper Solera Power 2.500”
2
F 423751
End Cap
2
G 346891
Rivet, 3/16” x .450”
1
H 672050
Drive Head Assembly Regal Awning
1
I 672052
Idler Head Assembly Regal Awning
1
A
B
C
D
E
F G H
I J K
L M N
O P
Callout PN
Solera Power 18V 69” Kit
434730 White
Qty
A 675906
Screw, #8 - 18 x 1/2” Pan Head
6
B 281152
Support Arm Assembly
1
C 656483
Support Arm Assembly - Battery Pack
1
D 299630
Screw, #8 - 32 x 1/2”Pan Head
2
E 384964
Bracket, Upper Solera Power 2.500”
2
F 423750
End Cap
2
G 346890
Rivet, 3/16” x .450”
1
H 672049
Drive Head Assembly Regal Awning
1
I 672051
Idler Head Assembly Regal Awning
1
NOTE: Part numbers are shown for identification purposes
only. Not all parts are available for individual sale. All parts
with a link to the Lippert Store can be purchased.
