Solera
®
Universal Hardware
Manual Awning to
Solera 18V Power Awning
(For Aftermarket Applications)
CCD-0001267

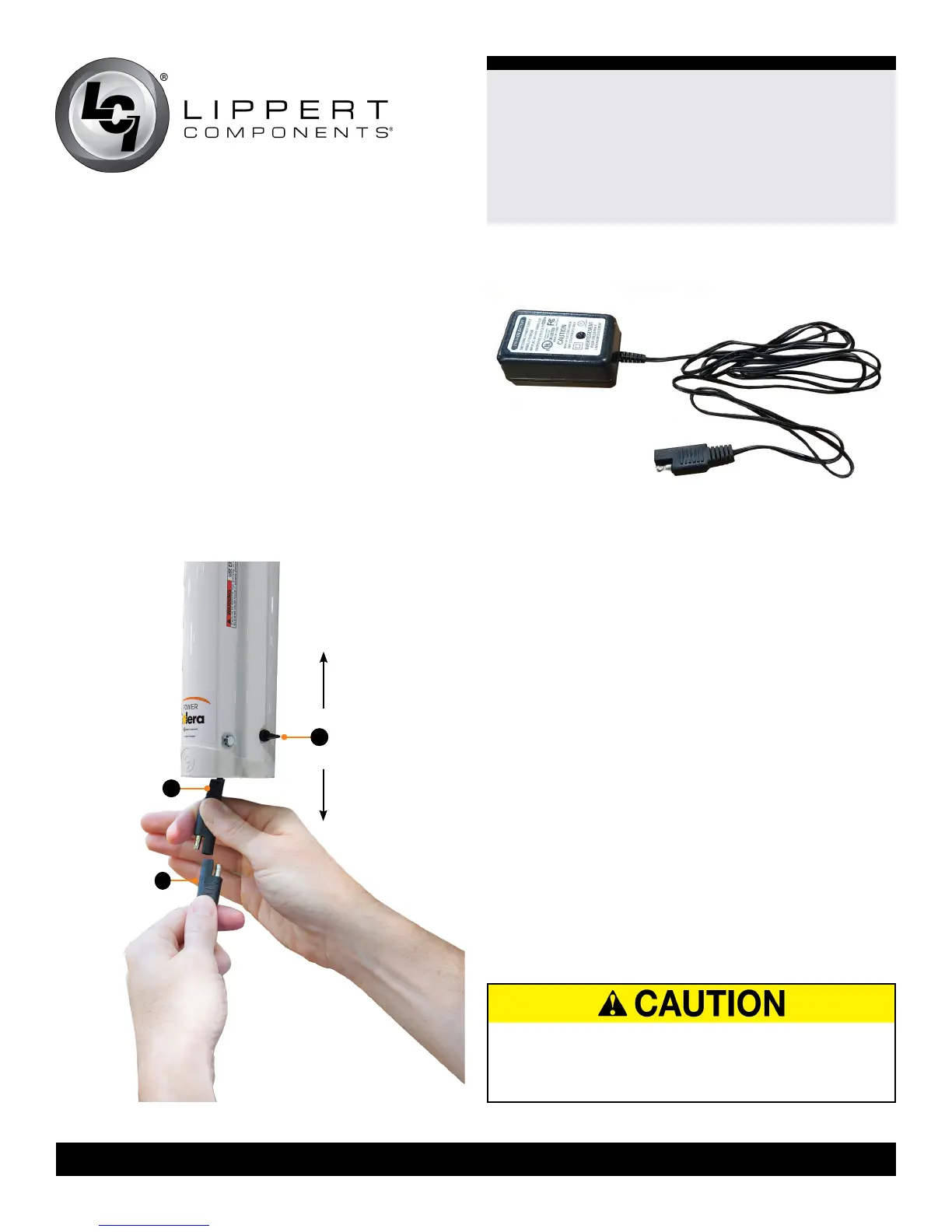

Charging the Battery
NOTE: The battery for the Solera 18V Power Pack is
located inside the drive arm. The awning will operate
22 to 25 times before needing to be recharged.
1. Locate the battery wires (Fig.32A) stored inside the
bottom of the drive arm. The wires will be afxed with
Velcro.
2. Attach the battery wires to the included battery charger
cord (Fig.32B).
3. Plug the charger (Fig.33) into a 110V outlet.
4. When the battery is fully charged, a green light will
illuminate on the charger. A red light indicates the battery
is still charging.
Fig.32
Fig.33
Operating the Awning
Extending and Retracting The Awning
NOTE: The operating switch for extending and retracting
the awning is located at the bottom of the drive arm
(Fig.36C).
1. Verify the battery is fully charged.
2. To extend the awning, press and hold the operating
switch (Fig.32C) up until the awning is extended
completely.
3. To retract the awning, press and hold the operating
switch (Fig.32C) down until the awning is retracted
completely.
NOTE: The awning fabric should always be above the roll
tube. However, if the extend switch is engaged too long or
extend is hit inadvertently instead of retract, the awning will
roll up backward. This is not a defect. To correct the fabric
orientation, press the operating switch down. The awning
will then extend to its correct orientation and normal
operation can resume.
TYING DOWN THE ROLL TUBE ONCE THE AWNING IS
EXTENDED WILL NOT ALLOW THE FREE-FLOATING
SUPPORT ARMS TO WORK AS DESIGNED AND MAY
CAUSE DAMAGE TO THE AWNING OR UNIT.
A
B
C
extend
retract
