lci1.com 574-537-8900 Rev: 03.21.19
Solera
®
Universal Hardware
Manual Awning to
Solera 18V Power Awning
(For Aftermarket Applications)
CCD-0001267

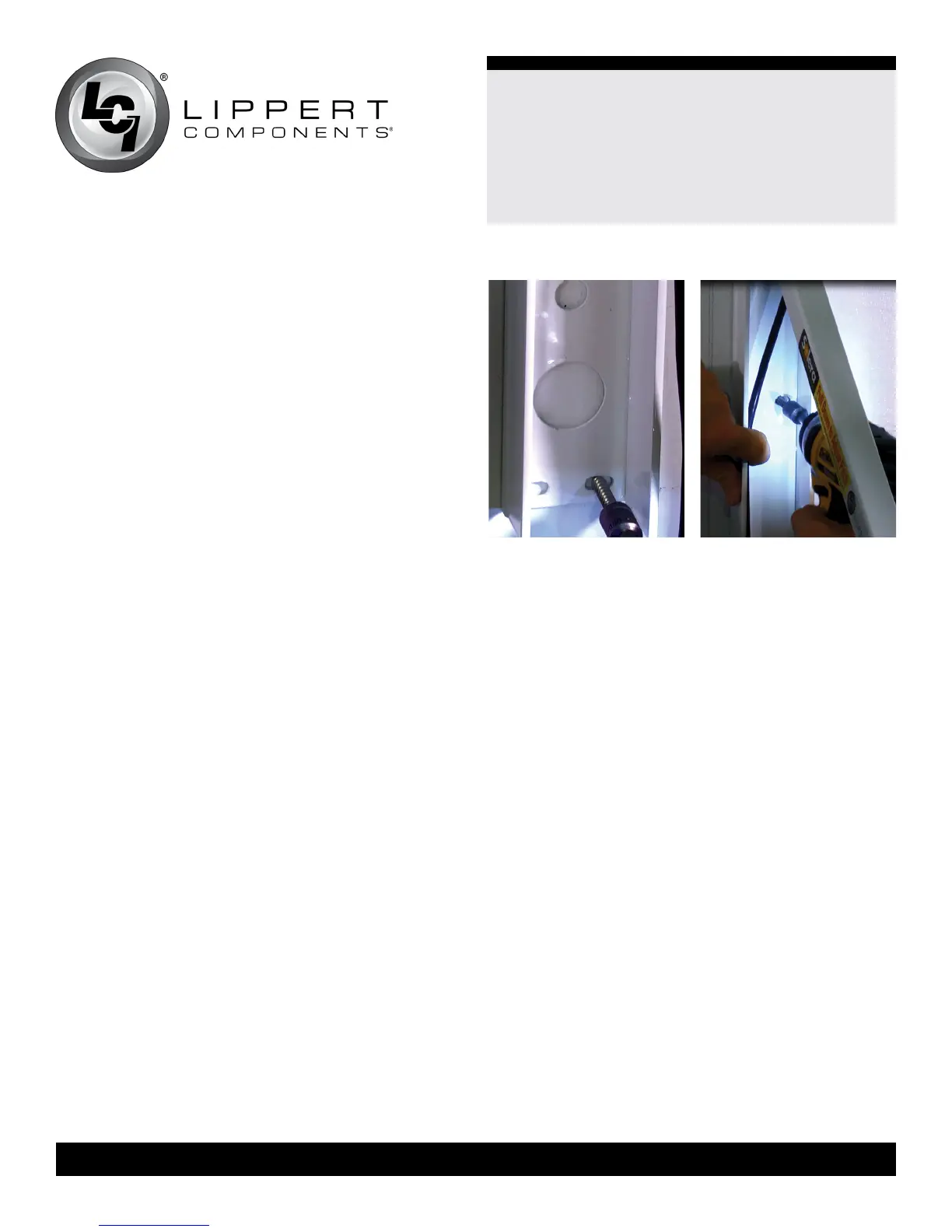

Fig.30 Fig.31
NOTE: Silicone sealant MUST be used on all screws and
holes to prevent water from inltrating the unit.
NOTE: Do NOT install fasteners to the lower and middle
sections of the wall mount arm at this time.
18. Re-install the cotter pin to the idler side end cap.
To properly align the hole for the cotter pin, it may be
necessary to slightly move the awning in or out using
the extend/retract switch. See Operation section in this
manual.
19. Repeat Steps 3-17 for the idler side of the awning,
skipping all cam lock instructions.
NOTE: The idler head does NOT have a cam lock, and
therefore, the cotter pin is holding all the tension of the
spring assembly.
NOTE: Be sure to handle with care and always have a
secure hold of the idler head.
20. Once the drive and idler side conversions are
complete, cut the nylon ties restraining the support arm
assemblies.
21. Use the operation switch at the bottom of the drive
arm assembly to fully extend the awning. See Operation
section of this manual.
22. Remove the manual pull strap from the roll tube.
NOTE: If the drive arm’s battery is not charged, plug the
battery wires into the charger and the charger into a 110V
outlet. See Charging the Battery section in this manual.
The awning should become operational within ve minutes
after being plugged in.
23. Remove the wire covers to expose the lower and
middle sections of the mount arm.
24. Secure the lower (Fig.30) and middle (Fig.31) sections
of the drive mount arm to the unit with the provided
#14 x 1 ¼” screws or rivets. Make sure arms are square
to the unit. There will be two screws in the lower holes
and two screws in the middle holes.
NOTE: Silicone sealant MUST be used on all screws and
holes to prevent water from inltrating the unit.
NOTE: For units with berglass sidewalls, LCI requires the
use of rivets for securing the lower and middle sections of
the mount arm.
NOTE: All screws supporting the awning assembly MUST
have a backer within the structure of the wall of the unit.
25. Repeat Steps 23-24 for the idler mount arm.
26. Replace the wire covers.
To Next Page
