Page 30 Maxmig 210 IMA 578BLA

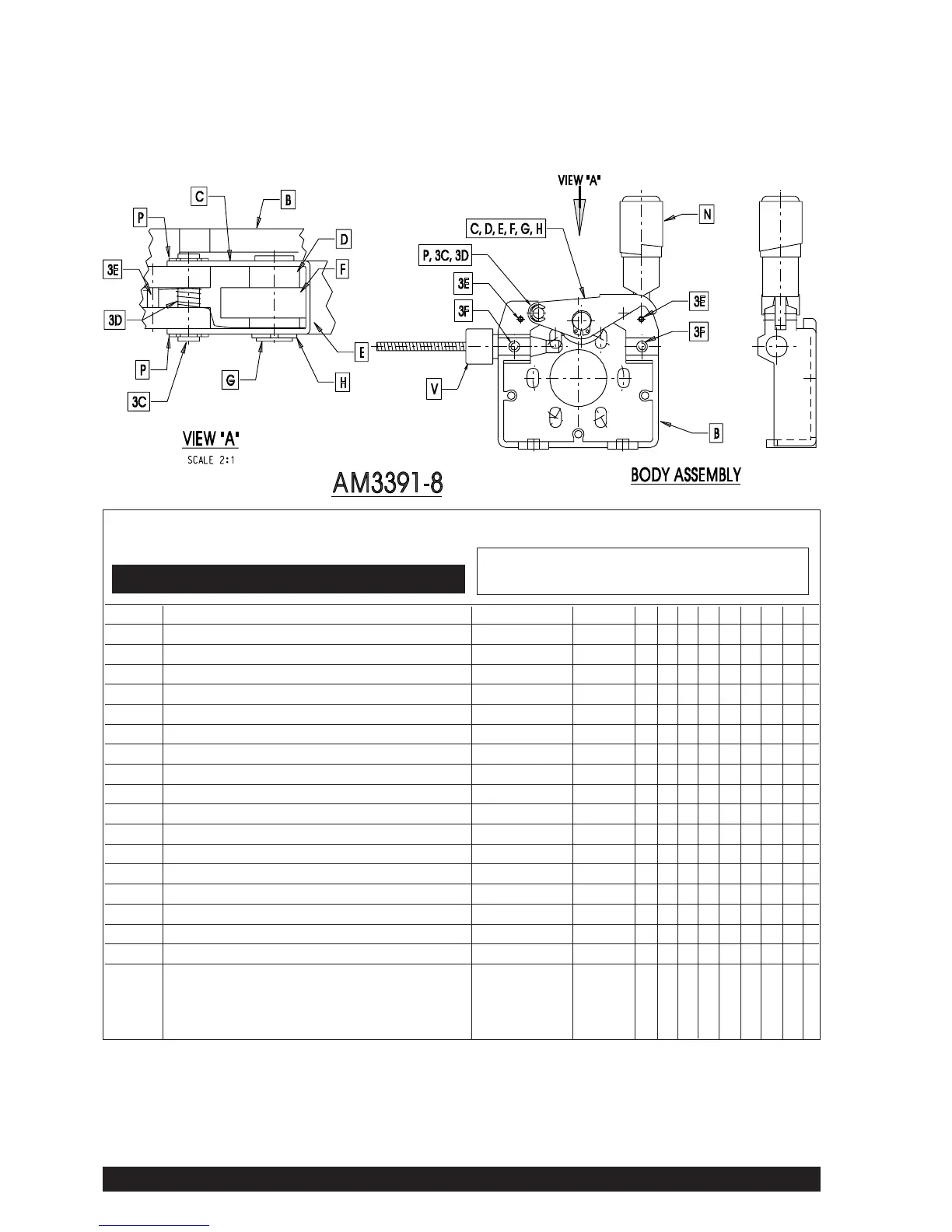

Drive Plate Assembly
Maxidrive 2R
AP-93-D
Operative: 4.7.03
Supersedes: 28.10.98
# Indicates a change this printing.
* Items not illustrated.
ITEM DESCRIPTION PART NO. QTY. 123456789
B Aluminium Body AM3391-6A 1 x
C Idle Roll Arm AM3391-1C 1 x
D Idle Roll Spacer - Thick AM3391-1D 1 x
E Idle Roll Spacer - Thin AM3391-1E 1 x
F Idle Roll AM3391-1F 1 x
G Idle Roll Shaft AM3391-1G 1 x
H Circlip (Idle Roll) AM3391-1H 1 x
N Tensioner AM3391-1N 1 x
P Circlip (Idle Roll Arm Shaft) AM 3391-1P 1 x
R* Drive Roll Retaining Screw AM3391-1R 1 x
V Incoming Guide Tube AM3391-1V 1 x
3C Idle Roll Arm Shaft AM3391-3C 1 x
3D Idle Roll Spring AM3391-3D 1 x
3E Roll Pin AM3391-3E 1 x
3F Grub Screw AM3391-3F 1 x
3G* Drive Roll 0.9-1.2mm Solid AS4449-8 1 x
3H* Drive Roll Adaptor AM3391-3H 1 x
Use only the parts marked “X” in the column under the
heading number called for in the model index page.
Recommended Spare Parts are highlighted in bold
Nut, bolt and washer sizes are given so they may be procured locally.
