Connectors
M12 Aviation Connector
The HAP (TX) uses the high-reliability M12 aviation connector (male). The M12 12P A-code fully
shielded male connector meets the IEC 61076-2-101 standard. The connector type is Finecables,
and the port number is MA12MAHD12STXXXB14. The corresponding female connector type is
Finecables, and the port number is MA12FAHD12STXXXB14. Both connectors have an IP rating
of IP67. Users can connect the HAP (TX) with the Livox Aviation Connector 1-to-3 Splitter Cable
(sold separately) for transmission of power, control signal, and data. Users can also replace the
cable with other cables to improve the dustproof and waterproof protection of the HAP (TX).
Livox Aviation Connector 1-to-3 Splitter Cable
Users can connect the HAP (TX) with the Livox Aviation Connector 1-to-3 Splitter Cable (sold
separately). The Livox Aviation Connector 1-to-3 Splitter Cable has an M12 aviation connector
(female) on one end, and the other end is split into the power, network, and function cables.
The M12 aviation connector (female) connects to the M12 aviation connector (male) on the HAP
(TX). The power cable connects to external DC power supply. The network cable has an RJ-45
network connector which connects to the RJ-45 connector on a computer for data transmission
during testing. The function cable does not need to be used as it has no electrical current when
using with the HAP (TX).

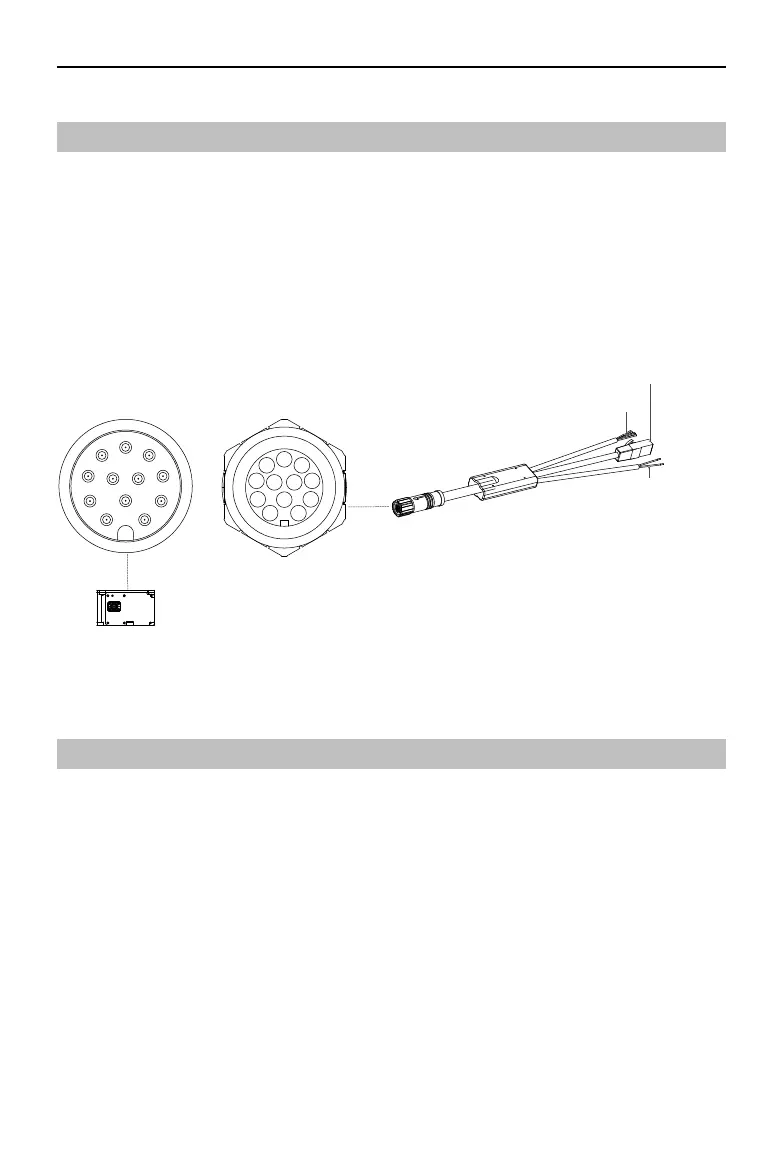

See below for more information on the HAP (TX) M12 aviation connector (male) and the Livox
Aviation Connector 1-to-3 Splitter Cable.
M12 Aviation Connector (Male)
M12 Aviation Connector (Female)
Power cable
RJ-45 Network Connector
Function Cable
12
3
4
5
11
10
12
6
7
8
9
1
2
3
4
5
11
10
12
6
7
8
9
