Instruction Manual

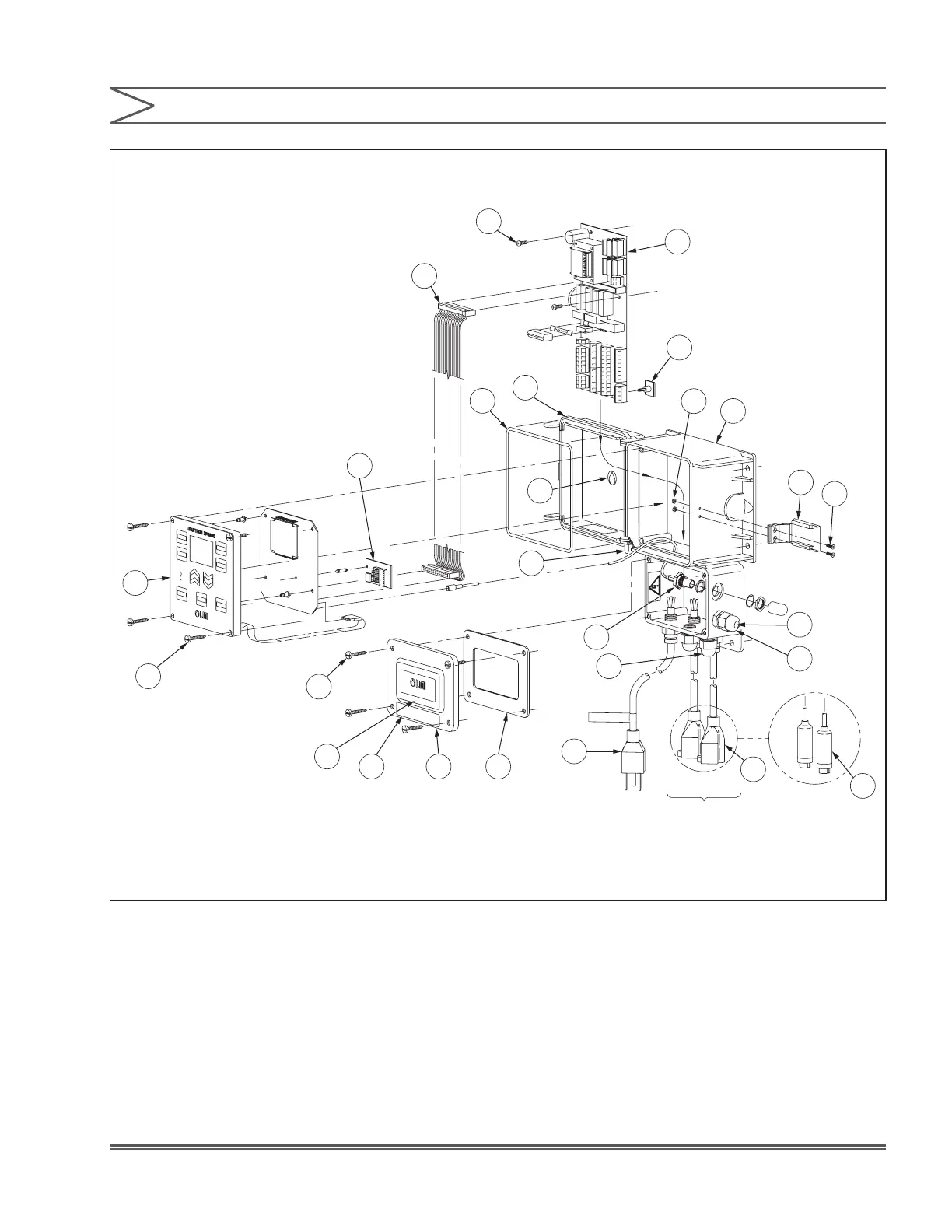

SECTION 10 - EXPLODED VIEW
1
15V
(U.S. VERSION ONL
Y)
ON / OFF
CONTROL
PROPORTIONAL
CONTROL
5
6
3
1
4
2
11
12
23
23
26
10
8
13
14
24
15
21
21
19
18
27
20
17
9
7
16
32
34
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
5
2 Unpacking
6
FIGURE 1. Unpacking Items
6
3 Installation
7
Pre-Installation
7
Environment
7
Mounting the Electronic Enclosure
7
FIGURE 2. Minimum Clearances
7
FIGURE 3A. Typical In-Line Installation
8
FIGURE 3B. Typical Batch Installation
8
Electrical Installation
9
Electrical Connections
9
FIGURE 4. Electrode and Pump Connections
10
FIGURE 5. Terminal Strip
11
Terminal Board Signal Description
12
Field Wiring Instructions
13
FIGURE 6. Circuit Board
13
Ph ADJUSTMENT PUMP(S)
14
Keypad and Display
14
FIGURE 7. Keypad
14
4 Operation
16
Default Settings
16
FIGURE 8. on / off Control
16
FIGURE 9. Proportional
16
Proportional Mode
17
FIGURE 10. Pump a Control Profile
17
ON / off Mode
18
Alarms
20
Calibration (Viewing Last Calibration Data)
21
New Calibration
21
Pump Timers and Solenoid Valve Control Timers
23
Pump Run Time
23
Solenoid Delay Pump Valve Time
23
Setting Timers
24
Solenoid Valve Control
24
Display Key
25
Advanced Menu
26
5 Maintenance
27
Ph ELECTRODE and CABLE
27
6 Troubleshooting
28
Error Messages
28
7 Dp5000 Specifications
29
8 Program Log
31
9 Parts List
32
10 Exploded View
33
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
