4.2.1. Part setup

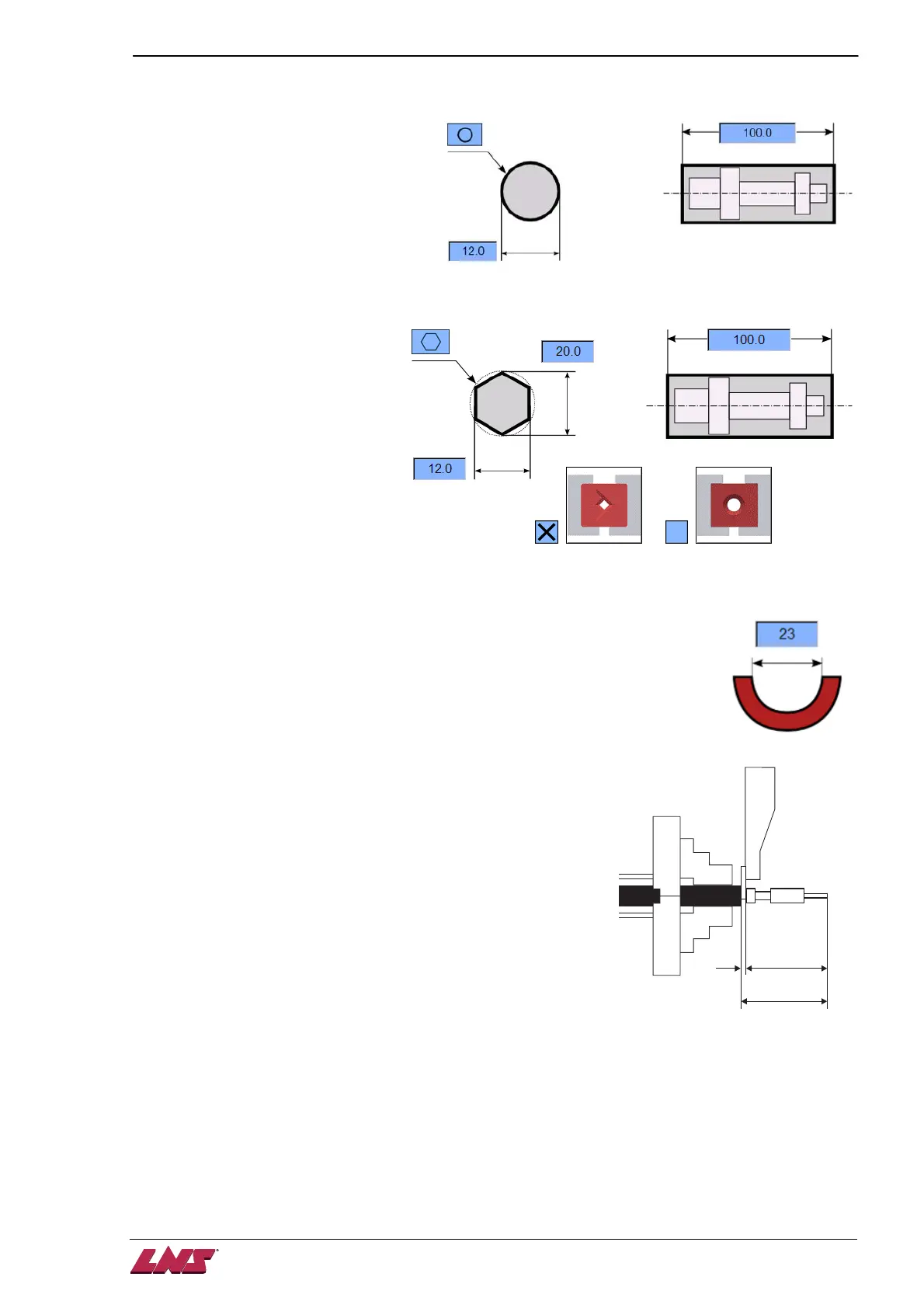

Material shape
Round material:
outer bar diameter
Hex / square material:
diameter across flats
diameter across corners
Front rest guiding element
When the material is
profiled, the bar feed
system will try several times
(for 2 minutes), to position
the bar inside the clamping
device of the lathe. The
accuracy of the positioning
is also assured by a
positioning procedure
designed specifically for
profiled bars.
Guiding elements diameter
The diameter of the guiding elements is always proposed for change after
the pusher changeover cycle.
Alternatively, it can be changed anytime in the main menu > MISC
FUNCTIONS > PAGE DOWN, and enter the new guiding element value.
Total part feed out length
The feed-out length (Lt) includes the part length (Lp), the cut-off tool
width (C) and the face-off length (not represented on the picture,
depending on the program).
