START UP MANUAL 21
QUICK LOAD SERVO III

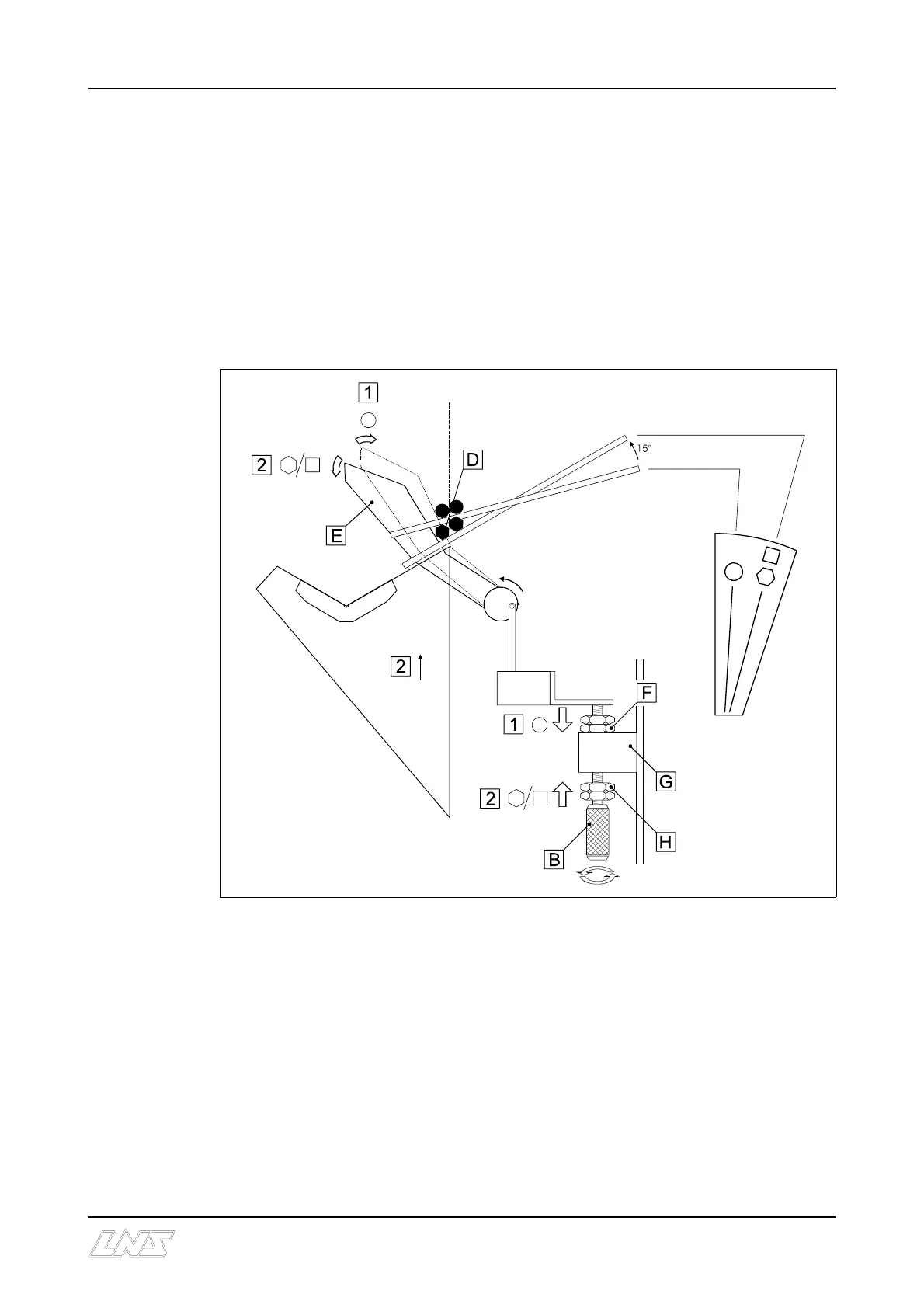

Like the loading table, the loading fingers also have two working positions :
S Round bars
S Profiled bars.
Fingers set-up for loading profiled bars :
C While screwing the knurled knob (B), the loading fingers (E) tilt. Continue turning
until the lower nuts (H) rest against the block (G), in position 2.
C Place two bars (D) on the table, against the loading fingers (E).
C Load manually to check the adjustment.
Fingers set-up for loading round bars :
C Adjust the slope of the table to the round bar loading position.
C Adjust the stops by unscrewing the knurled handle (B) until the top nuts (F) rest
against the block (G), in position 1.
If the slope of the table must be adjusted between the two indicated positions, adjust
the slope to accommodate this setting. The main point is that only one bar should be
loaded when the loading table rises.
