5.3 SLA-3 I/O Wiring

Note: K1,K2 is the electromagnetic valve with feedback monitoring or

safety relay in the bending machine system Fig.5-1.

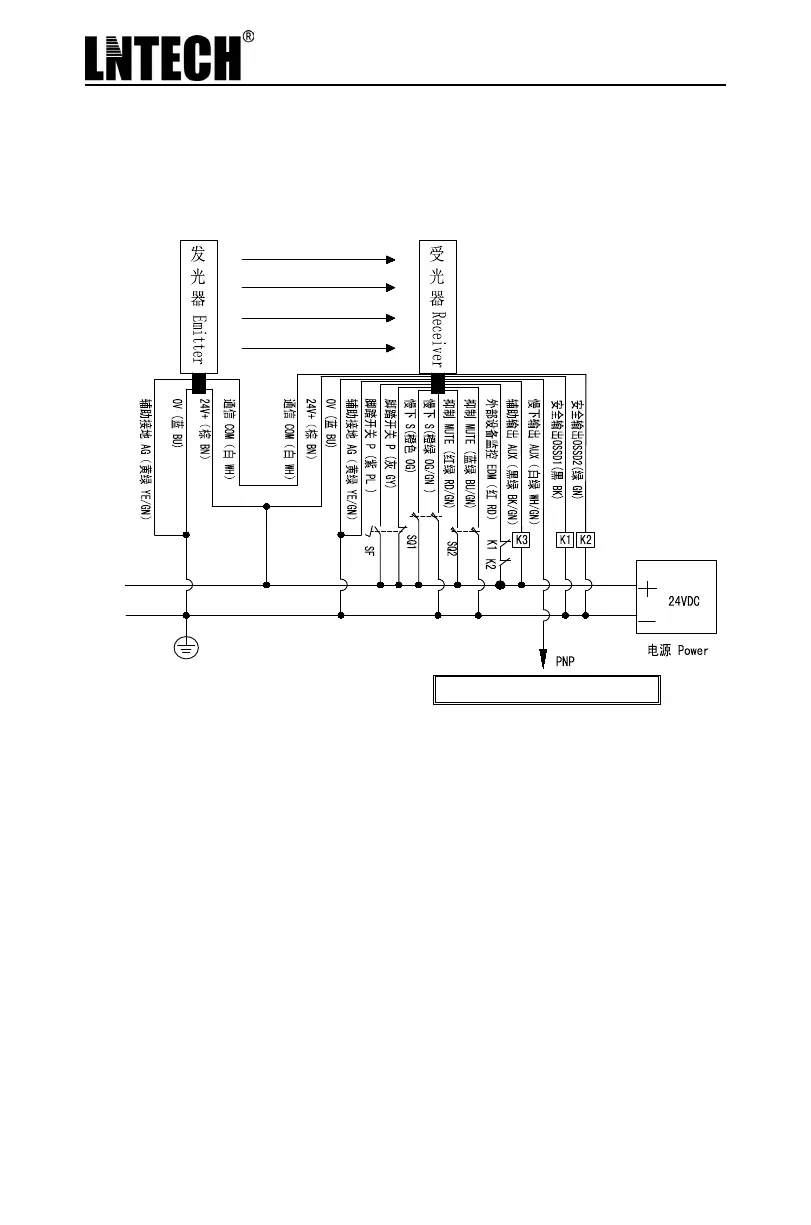

Fig.5-2 I/O Wiring

Wiring Procedure

：

1. connect with power 24VDC

2. short EDM cable with auxiliary output if no need

3. check the pedal, low speed closing,muting signal

4. connect with the pedal signal,i.e. purple,grey cable, check and conrm

the wiring correct

Bending machine system
