8. Installation of the unit

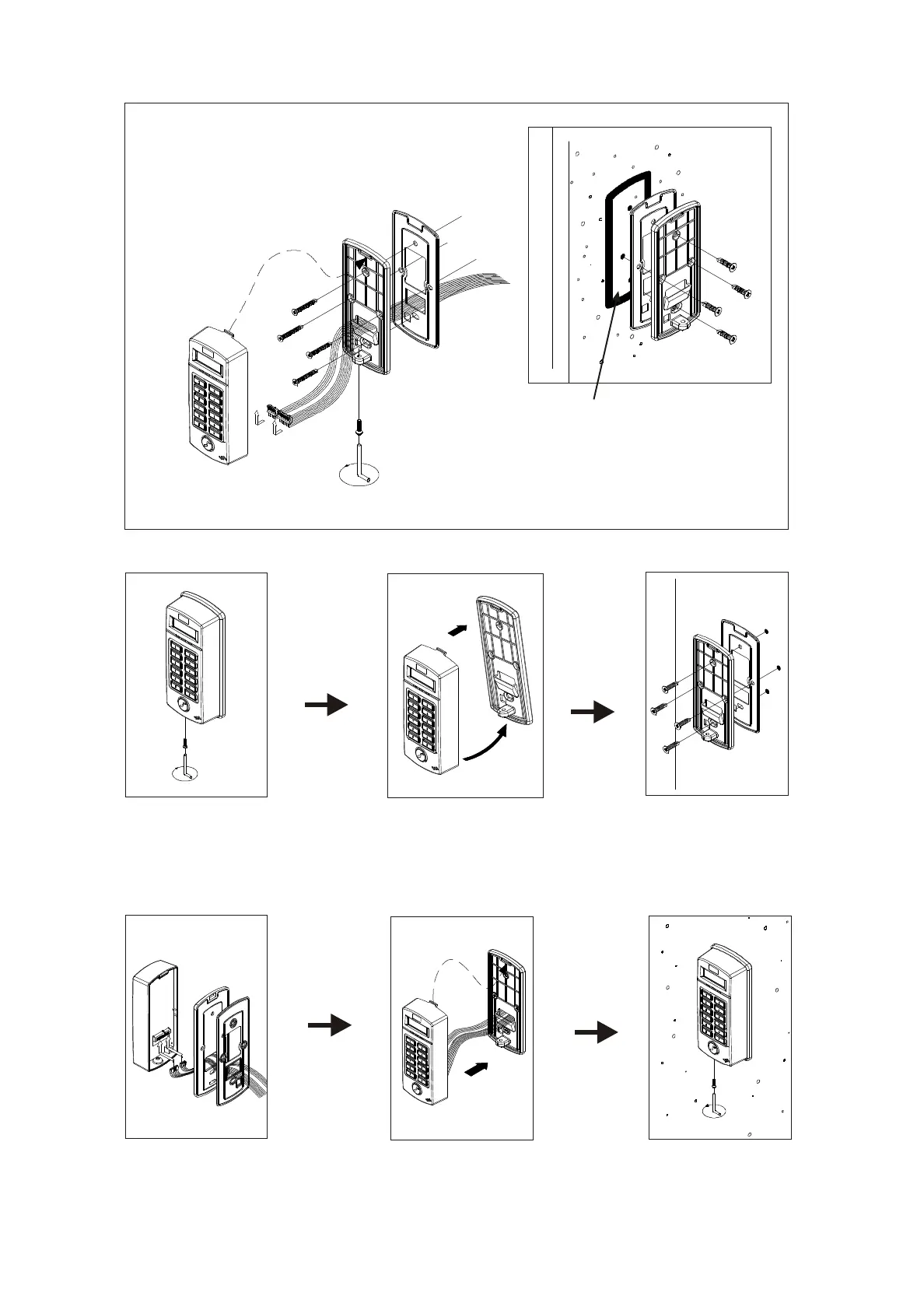

Step1:
Step4:
Use attached screwdriver
to unscrew the screws.
Separate the panel base
from the unit.
Screw the panel base and
waterproof rubber cushion
tight on the wall.
Place the wires through the
waterproof rubber cushion and
panel base in order. Connect
the wires with the unit.
Push the remaining wires in
the case and place both panel
base and the unit back together.
Use attached screwdriver
to tighten the screws.
Please apply waterproof silicone between
the mounted wall and rubber cushion on
rough wall to prevent water leakage to the
wiring hole in the back.
