Loewe 56435 - Pin Description - Main Board; XP1 to Basic Board

43
Mainboard 72615.060 Basic board 72615.060
XP1 zum Basicboard
XP1 to basic board
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
PSU on/off - 5V=aus, 0V=ein
5V
Masse
Masse
Masse
12V
12V
12V
12V
Masse
Masse
24V
24V
n.b.
PSU on/off - 5V=off, 0V=on
5V
GND
GND
GND
12V
12V
12V
12V
GND
GND
24V
24V
n.c.
XP9 zur Festplatte
XP9 to hard disk
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Masse
SATA_RXP
SATA_RXN
Masse
SATA_TXP
SATA_TXN
Masse
Masse
Masse
GND
SATA_RXP
SATA_RXN
GND
SATA_TXP
SATA_TXN
GND
GND
GND
XP12 zur Festplatte
XP12 to hard disk
1
2
1
2
Masse
5V
GND
5V
XP26 zur IR-Unit
XP26 to IR unit
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
7
8
9
10
11
LED rot - 0V=aus, 3,3V=ein
n.b.
LED blau - 0V=aus, 3,3V=ein
5V
RSIG
LED weiß - 0V=aus, 0,8V-3,3V=ein
LED grün - 0V=aus, 3,3V=ein
n.b.
OPC - 0V-ca.2,5V
n.b.
Masse
LED red- 0V=off, 3,3V=on
n.b.
LED blue - 0V=off, 3,3V=on
5V
RSIG
LED white - 0V=off, 0,8V-3,3V=on
LED green - 0V=off, 3,3V=on
n.b.
OPC - 0V-ca.2,5V
n.b.
GND

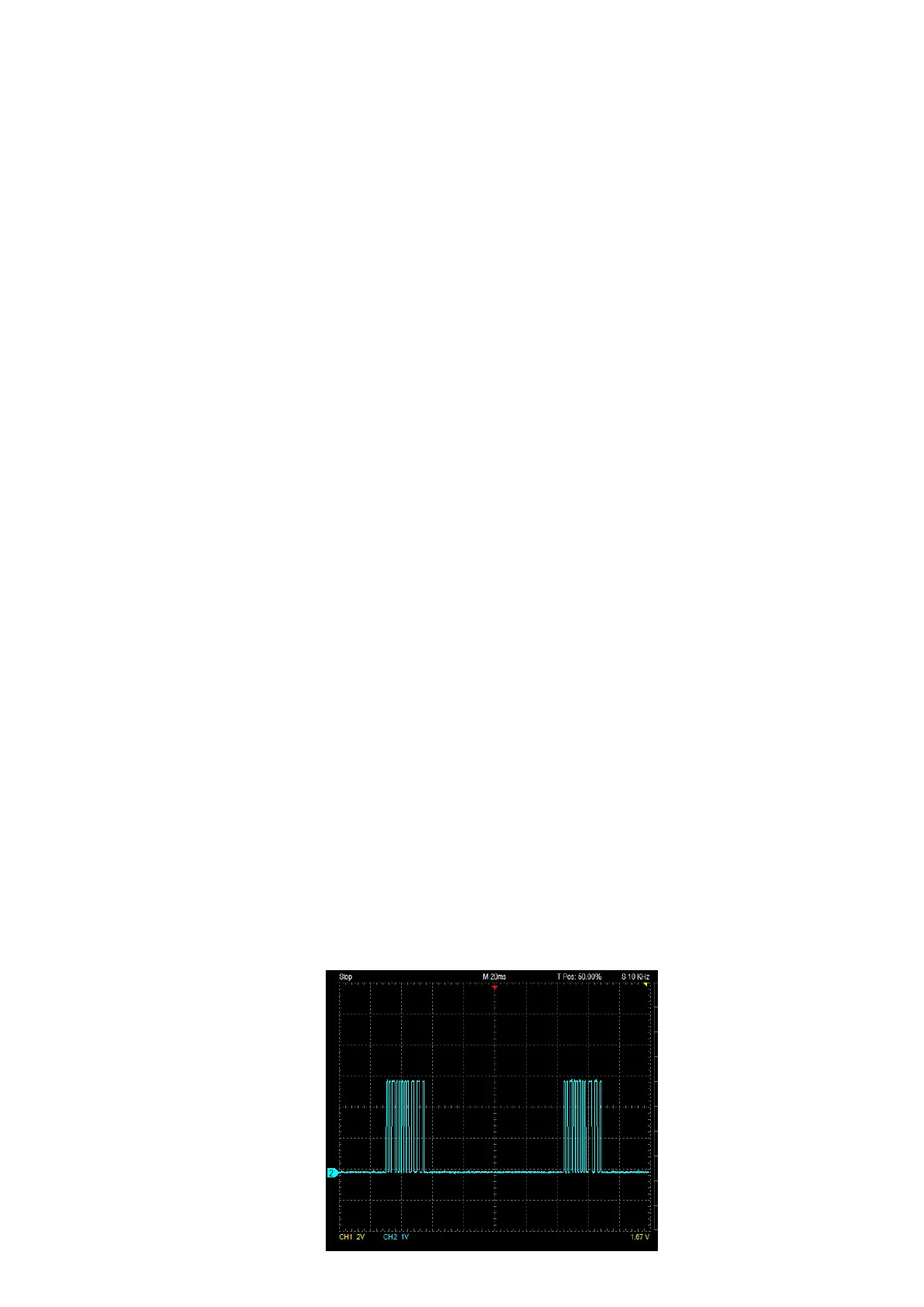

Pin 5
RSIG
