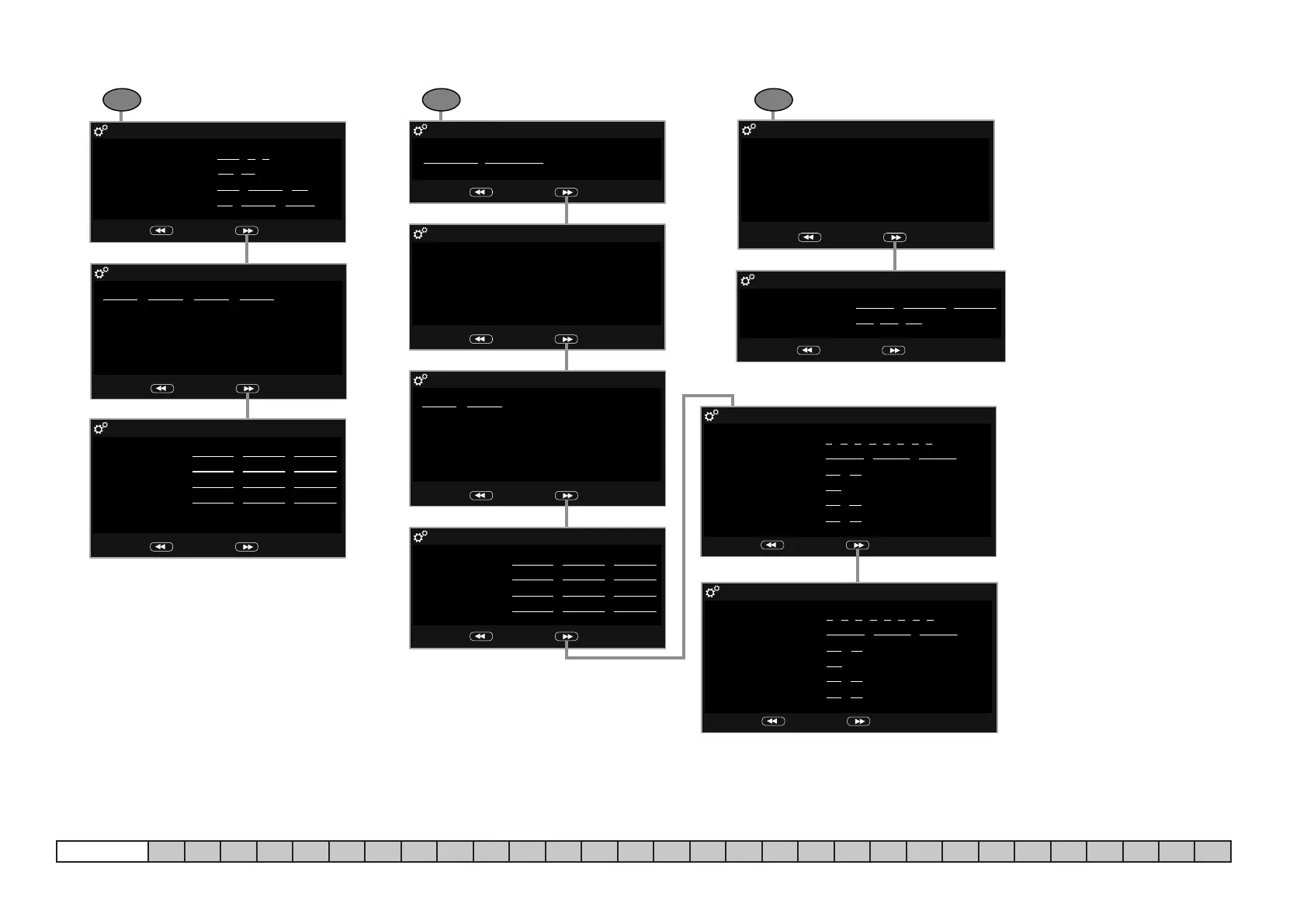

Menu - antenna (ANB)
Go to: LOC HOA HOB TVA TVB RA VD SRA SRB MB EP AF PI AU ST CTA CTB NMA NMB NMC COA COB COC COD ANA ANB EX MU HOT SVA
Settings DiSEEqC multiple switch
Back with Proceed with
With the ......
Repeat rate
Control voltage 13/18V
22kHz signal
Toneburst
none 1 2
off on
Band Position off
off Position Option
Number of system channels used
Back with Proceed with
Do you wish to use .....
One channel Two channels
Select satellites
Back with Proceed with
Please specify here which ....
Optus D1 160°E
Türksat 42°E
Hellas Sat2 39°E
:
ASTRA1 19,2°E
Eutelsat 16A 16°E
Hot Bird 13°E
:
Eutelsat 5
Nilesat 7°
Eutelsat 7
:
Select satellites
Back with Proceed with
Please select satellite 1 to satellite 4.
Satellite 1 Satellite 2 Satellit 3e Satellite 4
ASTRA3 23,5°E
ASTRA1 19,2°E
Eutelsat 16A 16°E
:
none
Optus D1 160°E
Türksat 42°E
:
Thor/Intel
Eutelsat 5
Nilesat 7°
:
Select DiSEqC unicable communal installation
Back with Proceed with
Please enter here which ....
DELTA SUM-516
DELTA SUM-518
DELTA SUM-918
:
User defined
AXING SES 86/96
AXING SES 46/56
:
DELTA
DELTA
DUR-li
:
LNB frequency, supply voltage
Back with Proceed with
Please specify the oscillator frequency ....
Satellite 1 low band 9750MHz 10000MHz 10200MHz
Supply voltage off 13V 18V
ANB1 ANB2 ANB3
* depend on selected
installation
LNB frequencies
Back with Proceed with
Please specify the oscillator frequency .....
Satellite 1 low band 9750MHz 10000MHz 10200MHz
Satellite 1 high band 10600MHz 10750MHz 11000MHz
Satellite 2 low band 9750MHz 10000MHz 10200MHz
Satellite 2 high band 10600MHz 10750MHz 11000MHz
: : : :
Select satellites
Back with Proceed with
Please select satellite 1 and satellite 2.
Satellite 1 Satellite 2
ASTRA3 23,5°E
ASTRA1 19,2°E
Eutelsat 16A 16°E
:
none
Optus D1 160°E
Türksat 42°E
:
Thor/Intel
Eutelsat 5
Nilesat 7°
:
LNB frequencies
Back with Proceed with
Please specify the oscillator frequency .....
Satellite 1 low band 9750MHz 10000MHz 10200MHz
Satellite 1 high band 10600MHz 10750MHz 11000MHz
Satellite 2 low band 9750MHz 10000MHz 10200MHz
Satellite 2 high band 10600MHz 10750MHz 11000MHz
Manual registration (for socket ANT SAT)
Back with Proceed with
Please log on .....
Transmission channel
Transmission frequency
PIN protection *
Define/change PIN *
DiSEqC envelope mode *
Low-pass filter *
1 2 3 4 5 6 7 8
1285MHz 1400MHz 1516MHz .....
yes no
000
yes no
yes no
Manual registration (for socket ANT SAT 2 or second frequency)
Back with Proceed with
Please log on .....
Transmission channel
Transmission frequency
PIN protection *
Define/change PIN *
DiSEqC envelope mode *
Low-pass filter *
1 2 3 4 5 6 7 8
1285MHz 1400MHz 1516MHz .....
yes no
000
yes no
yes no
