16 Battle Ax Skid Loader OM
Set-up Instructions
Cutter Bar Adjustment
NOTE: The cutter bar can be adjusted back or forward
to increase or decrease the distance between
the bar and the rotor.
WARNING: Shut down and disconnect
hydraulic hoses from skid loader before
adjusting the cutter bar.

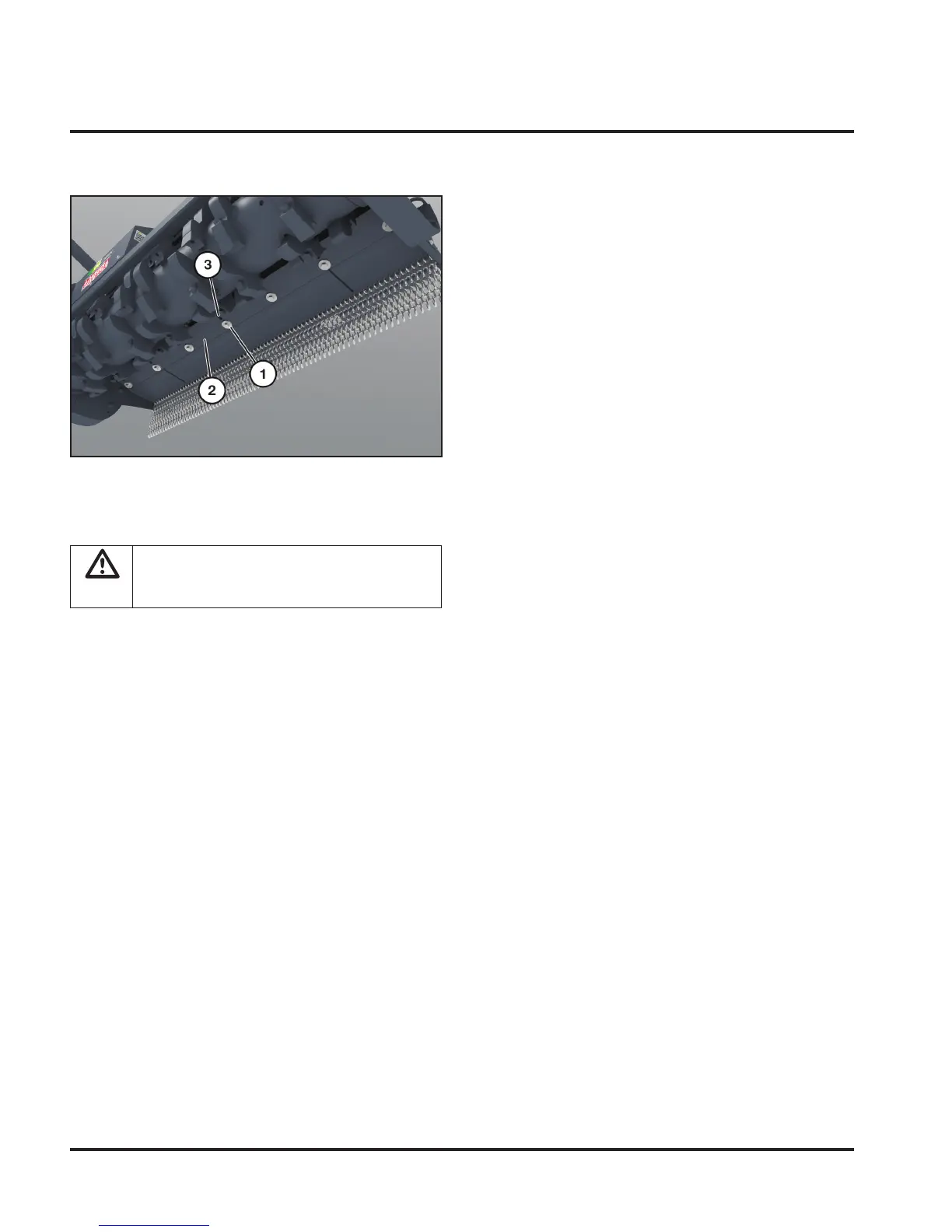

Loosen the seven bolts with washers (1) securing the
cutter bar (2) to the frame. Move the cutter bar either
forward or back making sure the distance moved is
consistent through the entire length of the cutter bar.
Retighten bolts.
To move the cutter bar a greater distance, remove the
bolts, washer, and bar and reposition into the next row
of bolt holes (3).
