22 Battle Ax Skid Loader OM
Maintenance

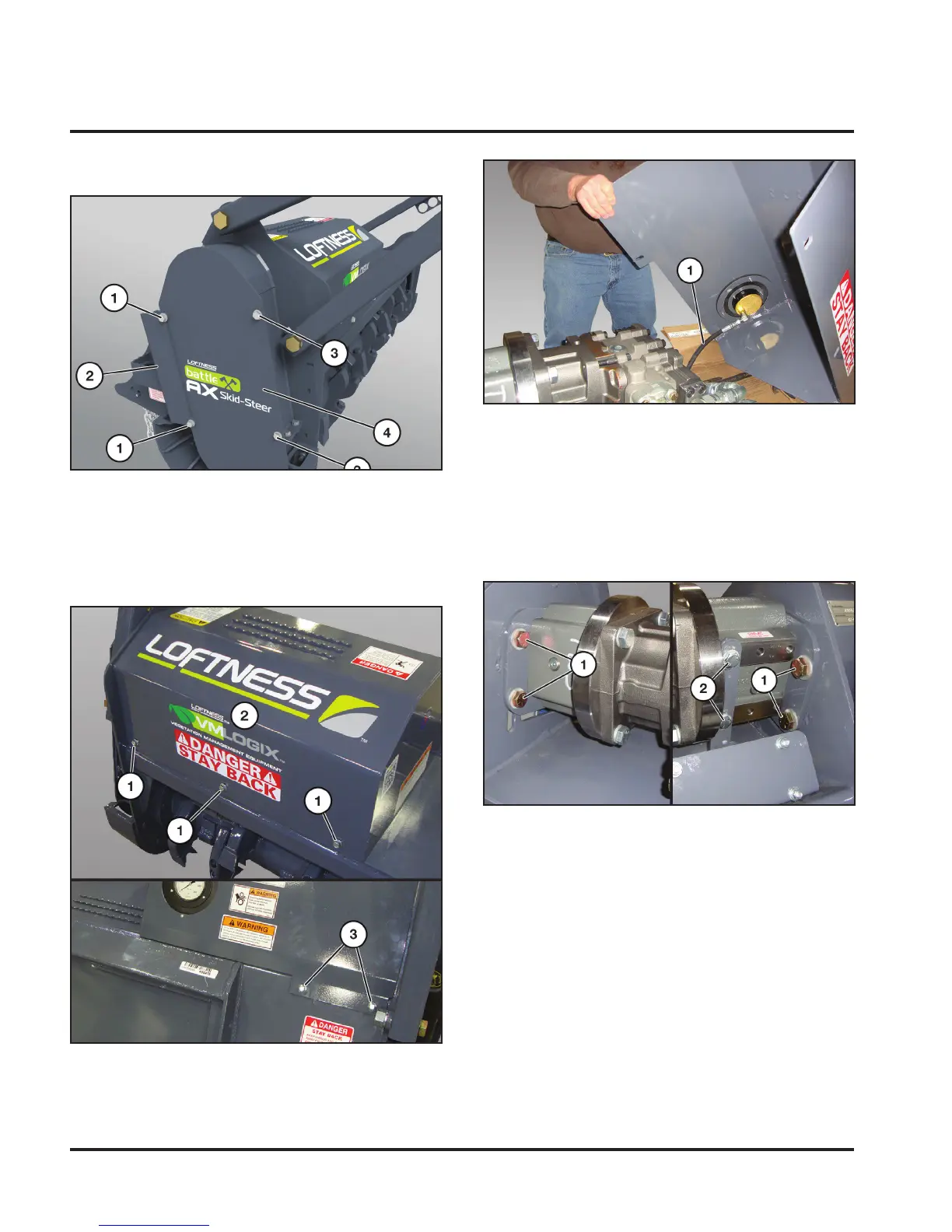

Removing Belt Cover
Remove the two bolts (1) and the manual cover (2).
Remove the three bolts (3) and lift the drive belt cover (4)
off of the frame.
Removing Motor Cover
Remove the 3 bolts (1) on the front of the motor cover (2)
followed by the two bolts (3) at the rear.
Carefully lift the cover off of the frame, being cautious not
to pinch or damage the pressure gauge hose (1) under
the motor cover.
Belt Adjustment
Remove belt cover and motor cover following the
instructions earlier on this page.
Loosen the four bolts (1). Loosen the overhung load
adapter support bracket bolts (2).
(Procedure continued on following page.)
