38 Battle Ax Skid Loader OM

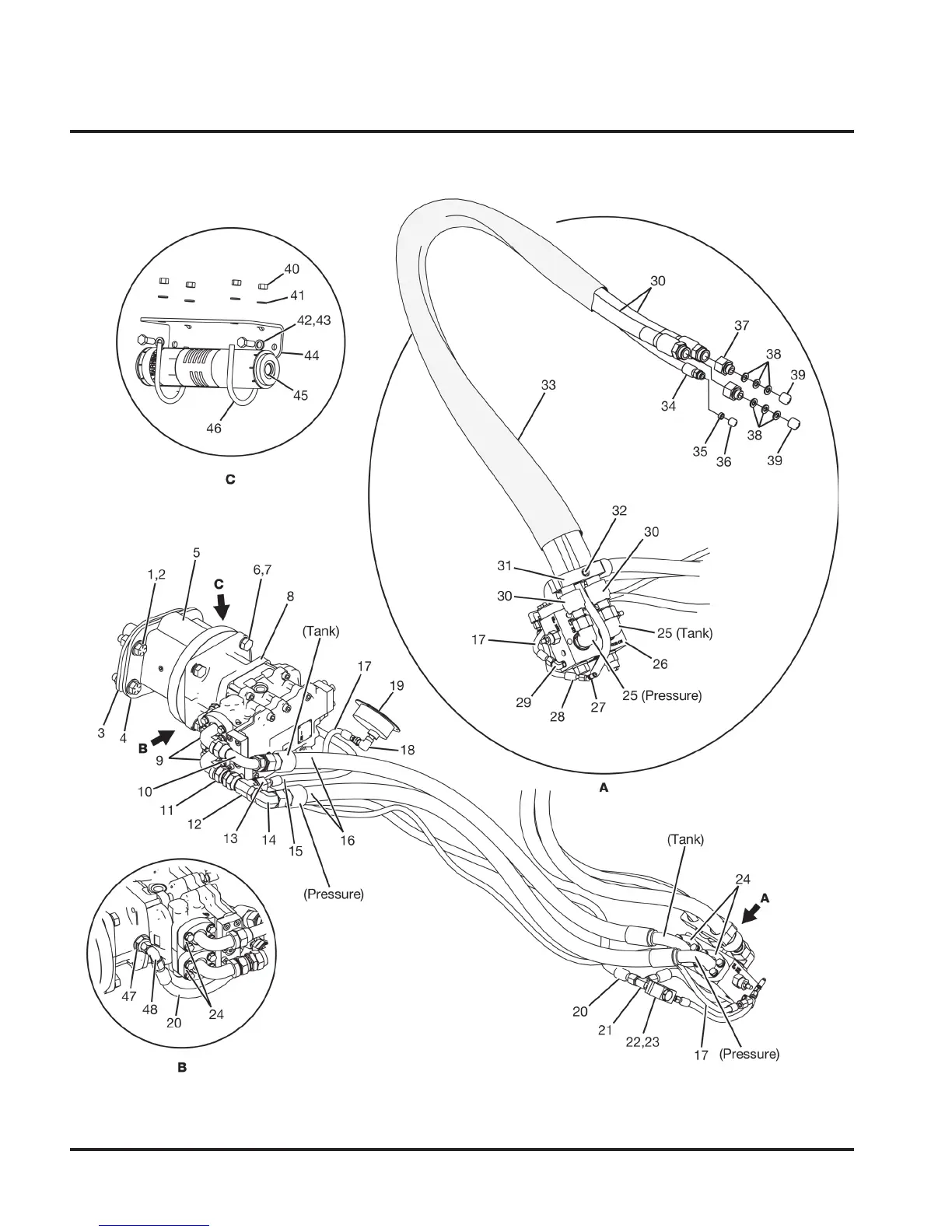

Hydraulics, Parker Motor with Brake (Cont’d)

Parts Identiﬁcation

* Parts breakdown of item 6

(N51193) is on page 51.

* Parts breakdown of item 9

(N38488) is on page 50.

* Parts breakdown of item 25

(N21669) is on page 48.
