Logenex A202CR - TBG-1 Installation Diagram; TBG-1 Wiring Connections

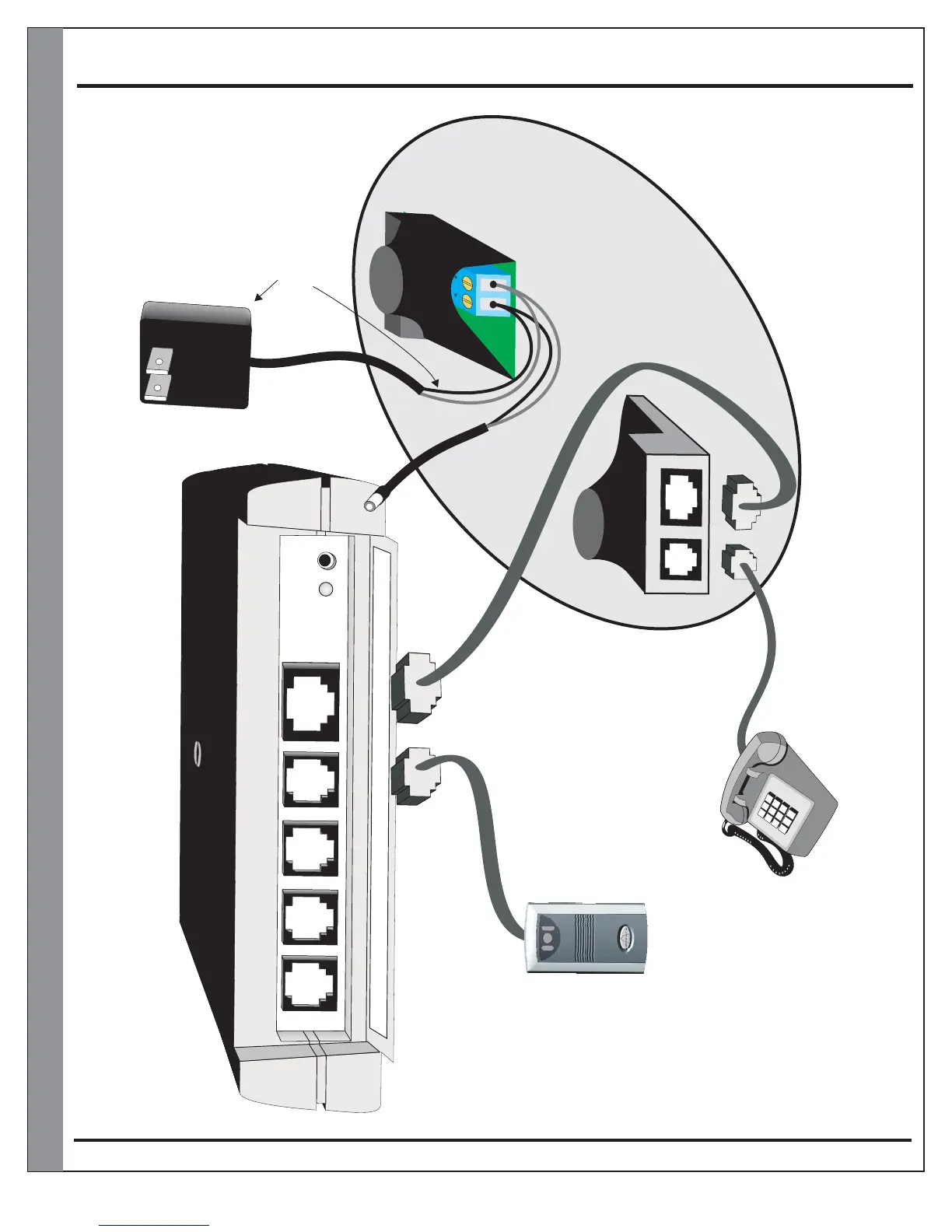

TBG-1 Installation Diagram
Page 9
A202CR & A204CR
RJ11 Modular Wire
(Supplied with unit)
16V AC
Output
To telephone
or KSU/PBX phone system
Existing Power Supply
supplied with TeleDoorBell
Controller / speaker kit.
Splice the power cables
and split them between
the Controller & TBG-1
RJ11 RJ45
Reverse
View
16V AC
Front View
TBG-1
Front & Rear
View
Spk/Rly#4 Spk/Rly#3 Spk/Rly#2 Spk/Rly#1 Tele Line In & Out Power Plug
