LOGICDATA SMARTneo-3G Manual

SMARTNEO - OPERATING MANUAL // PAGE 13

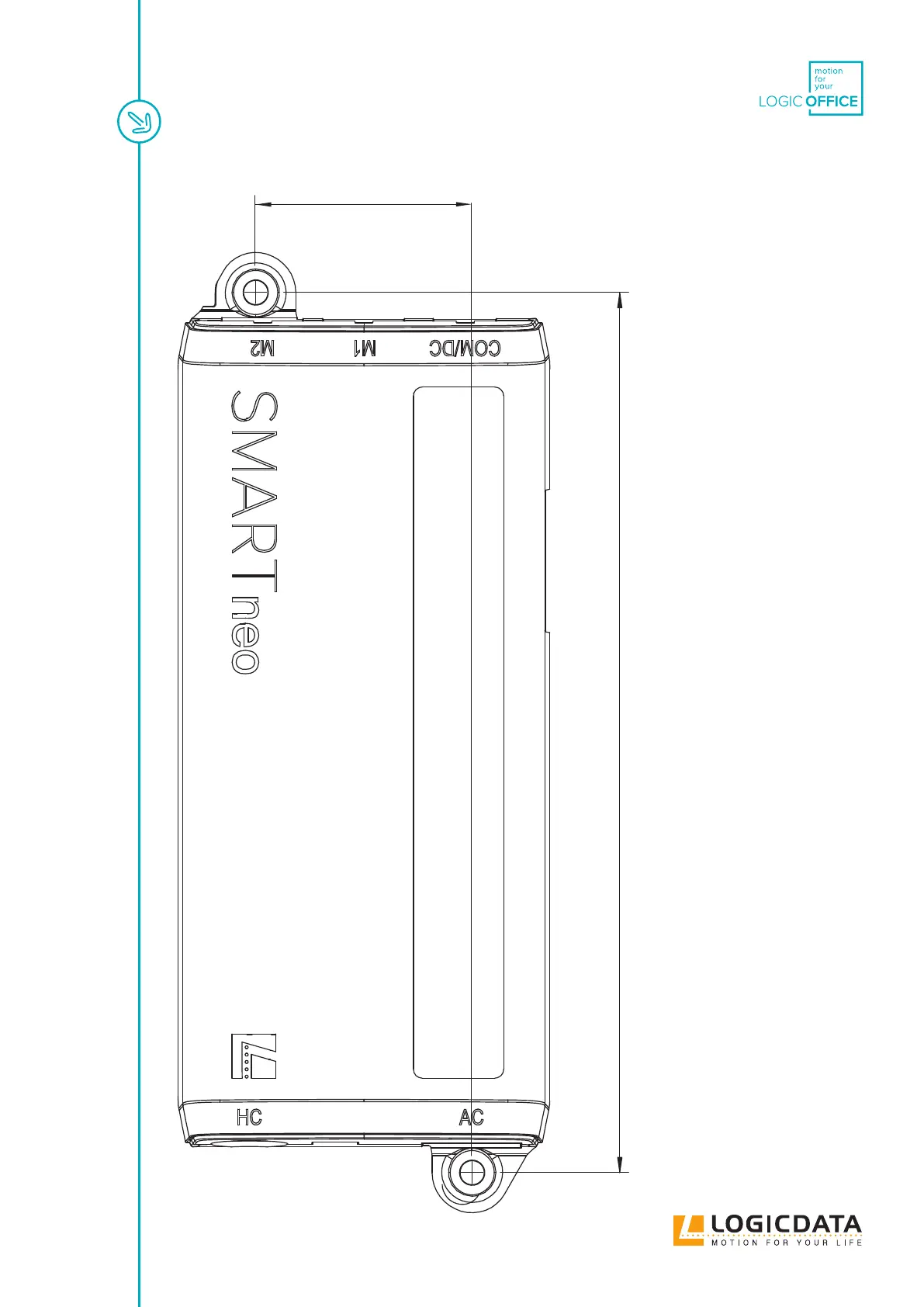

DRILLING TEMPLATE
The mounting points for the
SMARTneo-2G have a diam-
eter of 5.5 mm.
The drilled holes must be
200 mm (lengthways) and
49.2 mm (widthways) apart.
The entire housing of the
SMARTneo-2G must be un-
derneath the table.
49.2 mm (±0.15 mm)
1,937 " (± 0,006 ")
200.0 mm (±0.35mm)
7.874 " (±0,014 ")
