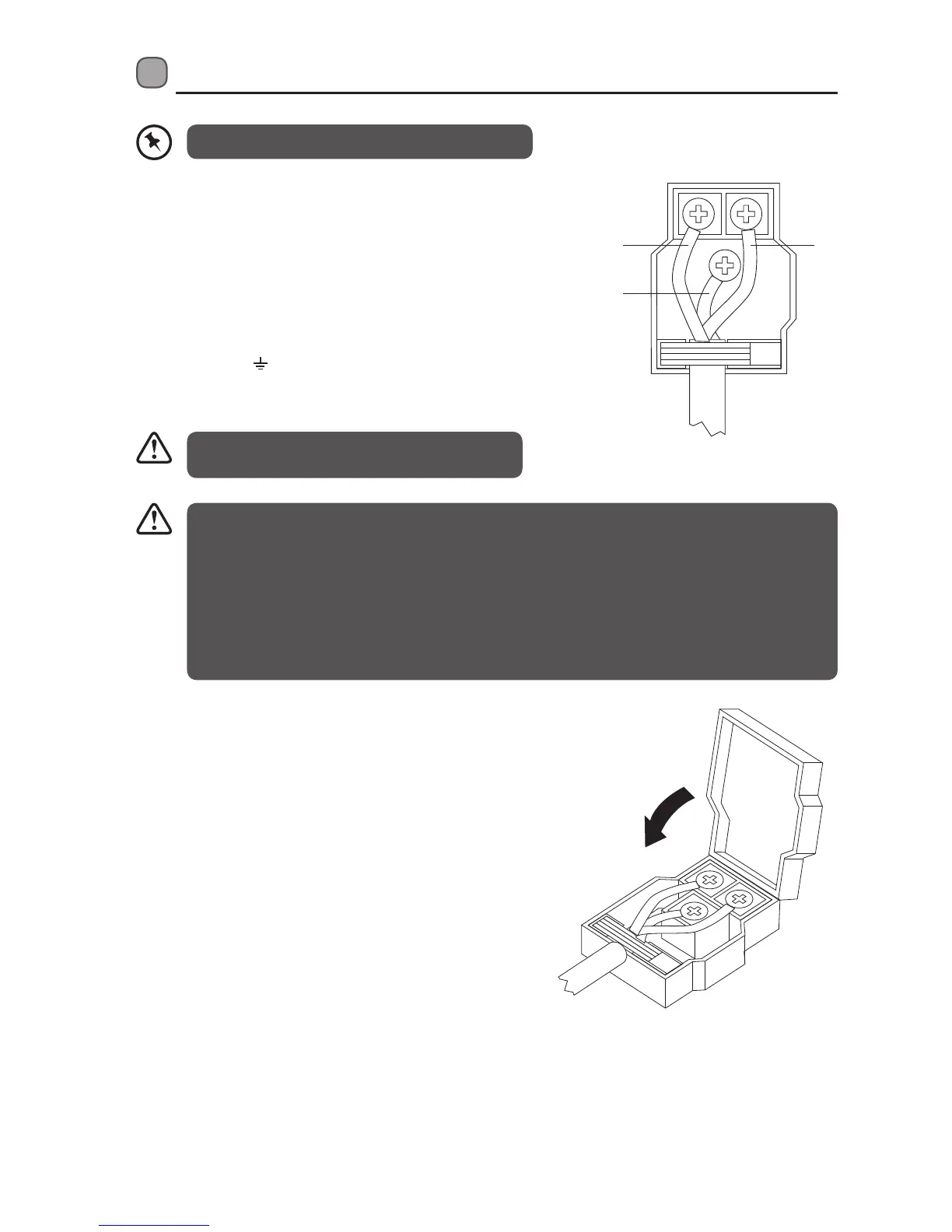

Logik LBMULB13 - Wiring Instructions

1. To connect to a mains power supply of 220-240~V, follow the
instructions below:
a) Unscrew the cable bracket.
b) Connect the LIVE wire to L.
c) Connect the NEUTRAL wire to N.
d) Connect the EARTH wire (normally yellow/green) to the
EARTHING
connector.
e) Replace the cable bracket and screw securely into place.
L
E
N
• If the mains cable is damaged and needs to be replaced, this should be done by a qualified person
using the proper tools, so as to avoid any accidents.
• If the ceramic hob is being connected directly to the mains supply, an omnipolar circuit breaker
must be installed with a minimum gap of 3mm between the contacts.
• The installer must ensure that the correct electrical connection has been made and that it complies
with safety regulations.
• The mains cable must not be bent or compressed.
• The mains cable must be checked regularly and only replaced by a qualified person.
Always place the wire on the side of the screw
which follows the tightening direction (clockwise).
Wiring Instructions
This connection is only for cables 4mm – 6mm thick.
2. After all connections are thoroughly checked and secure,
replace the Terminal Box cover. Snap the cover back on.
Ensure it is secure.
