21

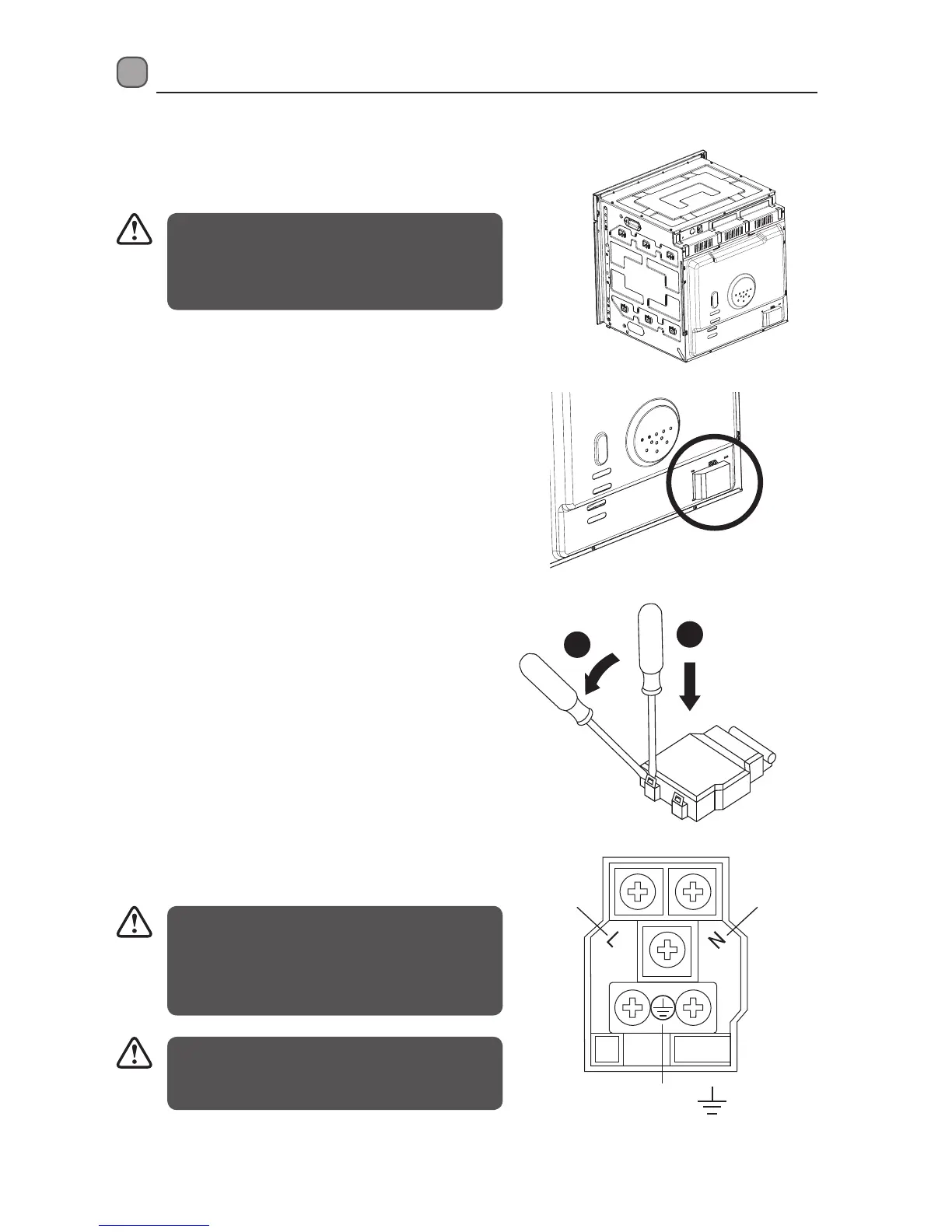

Electrical Connection
Fitting Guidelines
The oven is manufactured to work with single-phase alternating
current (230V – 240V/50Hz). The connection diagram is also found
next to the cover of the connection box.
Locate The Terminal Box
• All electrical work should be carried out by a
suitably qualified and authorised electrician.
• No alterations or wilful changes in the electricity
supply should be carried out.
* All images are for indication only; please refer to your individual unit for actual item.
1
2
Prise O The Box Cover
Layout of The Terminal Box
Live Wire
connection
Neutral Wire
connection
Earth Wire
connection
• Voltage of heating elements 220V – 240V.
• This product must be earthed.
• For this connection a power with a minimum
specification of H05VV-F (PVC insulated and
sheathed) 3 x 4mm
2
should be used.
This appliance must be earthed.
For this connection, ‘Twin and Earth 6242Y’ type
cable can be used.
LBMULB13_IB_130620_chris.indd 21 20/6/13 11:42 AM
