logitrans LOGIFLEX SELF MAXI - Hydraulic Oil Change Procedure

- 16 -
A
6.0 Long live Logiflex Maxi...
6.2 Oil change
Draining the oil:
1. Bring the unloaded forks down to the lowest position.
2. Most of the oil can be drained by loosening the hydraulic hose union in the
bottom of the cylinder. Activate the hydraulic pump by pressure on the switch.
The oil will run out.
3. Take off the side plates.

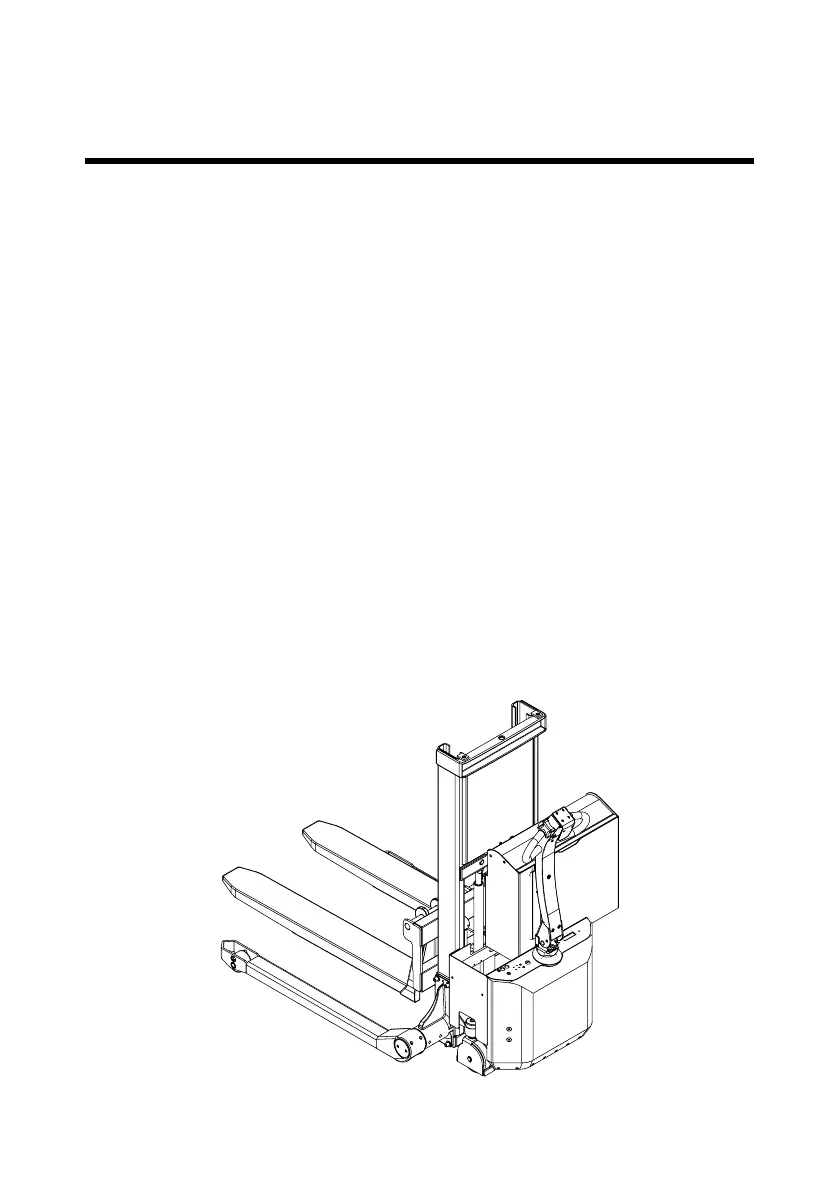

4. Take off the cables of the battery and push the battery box to the right side. (Fig. A)
5 The remaining oil can be drained from the oil tank by taking off the oil tank.
6. Place the oil tank and the hydraulic hose again.
7. Oilislledinbyremovingtheangularhosenipplefromthetank.
8. Oil quantity:
The oil level is measured from the upper edge of the tank and downwards
SELF Maxi 1001/920 - 1600
SELFS 1001/890 - 1570 approx. 3 litre 40 mm
SELF Maxi 1001/1910 - 2450
SELFS Maxi 1001/1880-2420 approx. 3,5 litre 32 mm
SELF Maxi 1001/2850 & SELFS Maxi 1001/2820 approx. 4 litre 25 mm
SELF Maxi 1001/3300 & SELFS Maxi 1001/3270 approx. 4,5 litre Metal tank
half full.
9. Rettheangularhosenippleandbleedthesystem(see6.3)
