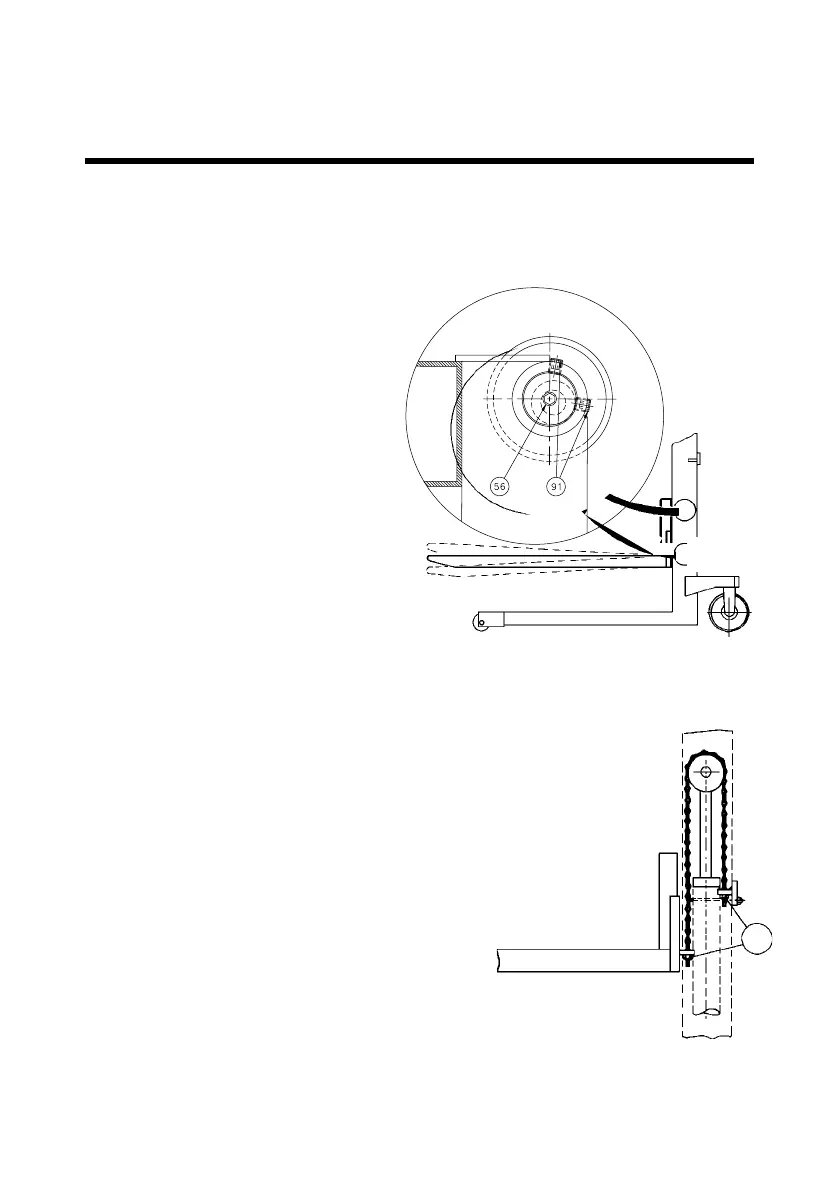

6.5 Fork adjustment
Two of the rollers on the fork bracket are mounted on eccentric pins, so that they
can be adjusted. The adjustable rollers are at the top.
1. Loosen screw (pos. 91)
(key width 5 mm).
2. Eccentric pins (pos. 56)
(key width 8 mm) can now be
turned to give the necessary fork
adjustment.
3. Adjustment must be made on both
sides to ensure uniform loading of
the rollers.
6.6 Adjustment of lifting chain
The chains shall be adjusted so that:
• they lift equally
• they are equally tight
• The lifting movement has to stop in the cylinder, before the
• mast rolls touch the top stop.
After adjusting, please check:
a: Fork bracket: the forks have to be placed above
the wheels
b: Adjustable carriage: the forks are to be kept clear of
theoor.
The nuts (pos. 18) are to be adjusted
(nut M12, key width 19 mm).
6.0 Long live Logiflex Maxi...
