logitrans ROTATOR SELFR - Page 23

23
400
900
1450
1880
Max. sideways moment
SELFR 560x1250
Max. sideways moment
SELFR 680x1250
Max. sideways moment
SELFSR 560x1250 with 850 mm
straddle legs
Upper
edgge forks

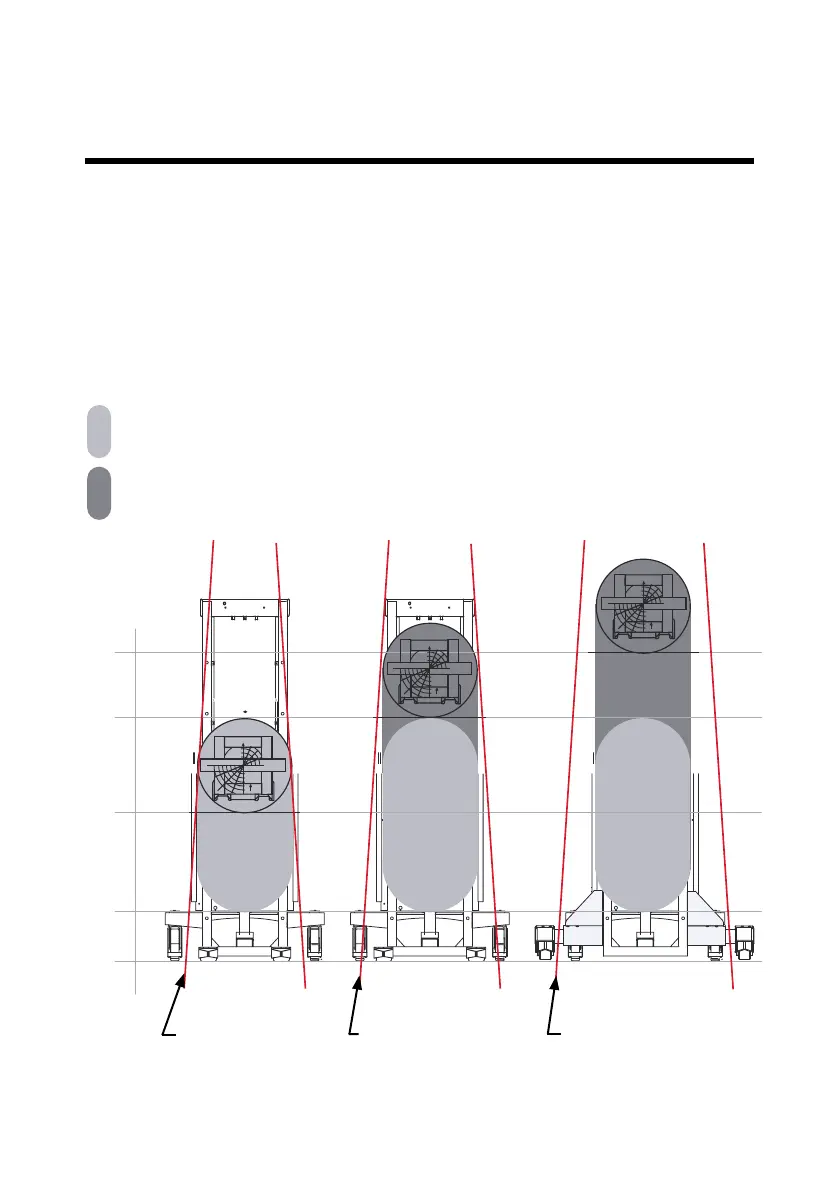

Range of maximum load 1000 kg /700Nm
of Rotator in special version
Normal range for the maximum load 1000 kg /700Nm,
fork height 400-900 mm.
Special version
The top stop can be set to other intervals than between 400-900 mm.
The height of the top stop depends on the width of the Rotator, as a wide Rotator
can manage a larger sideways movement.
E.g. On a Rotator with 850 mm straddle legs, the stop can be placed at a
maximum fork height of 1880 mm.
