30

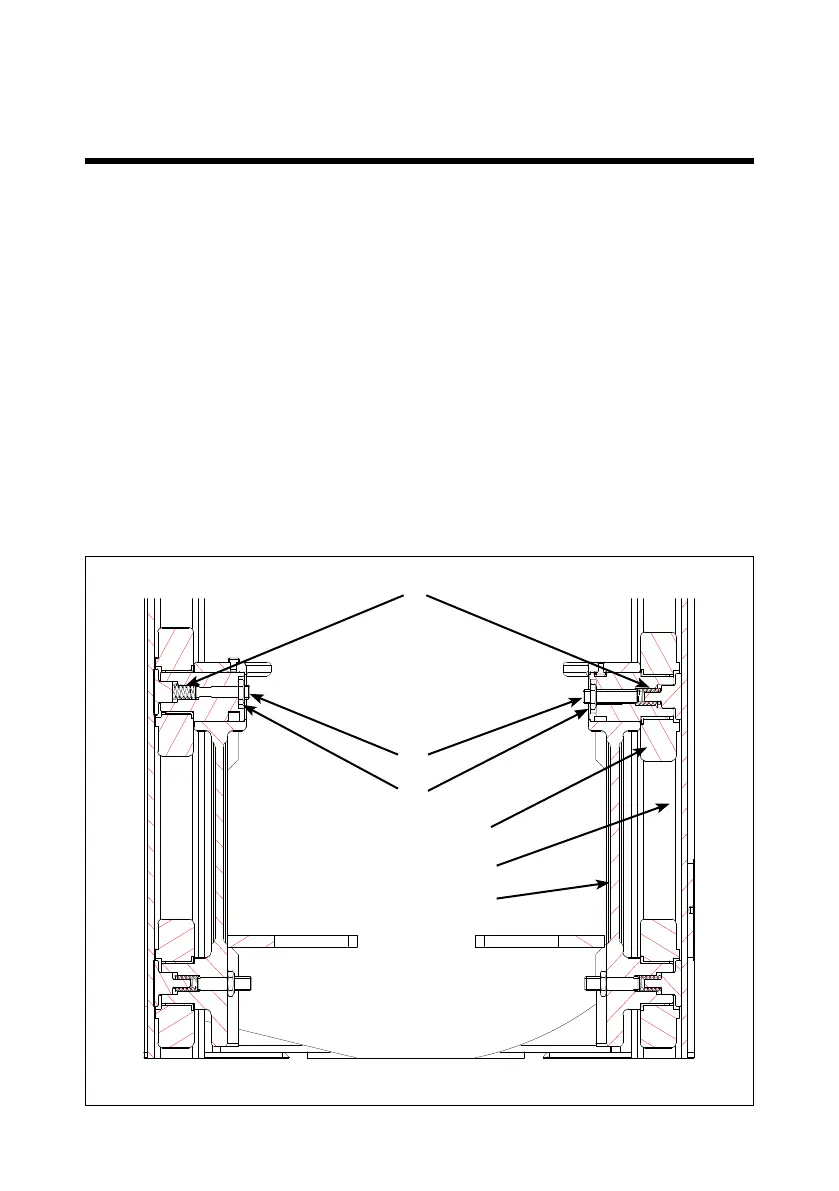

C
A
B
C-prole (mast)
Mast roll
Carriage
6.6 Adjustment of side play
1. Screw (A) is loosened counter-clockwise, until resistancedisappears.
2. Turn the screw clockwise, until resistance appears. The following 1.5 to 2.5
turns of the screw will be a tightening of the spring (C).
3. When a larger resistance appears, make 0.25 turn counter-clockwise,
and the counter nut (B) will be tightened.
4. Pump the forks to its top position, and when lowering it has to slide to
the bottom. If this is not the case, loosen screw A, make ca. 0.5 turn
counter-clockwise and repeat point 4.
6.0 Long live the Rotator
