31
A1
A1
A2
A2
B1
B2
ca.5mm
ca.2-3 mm

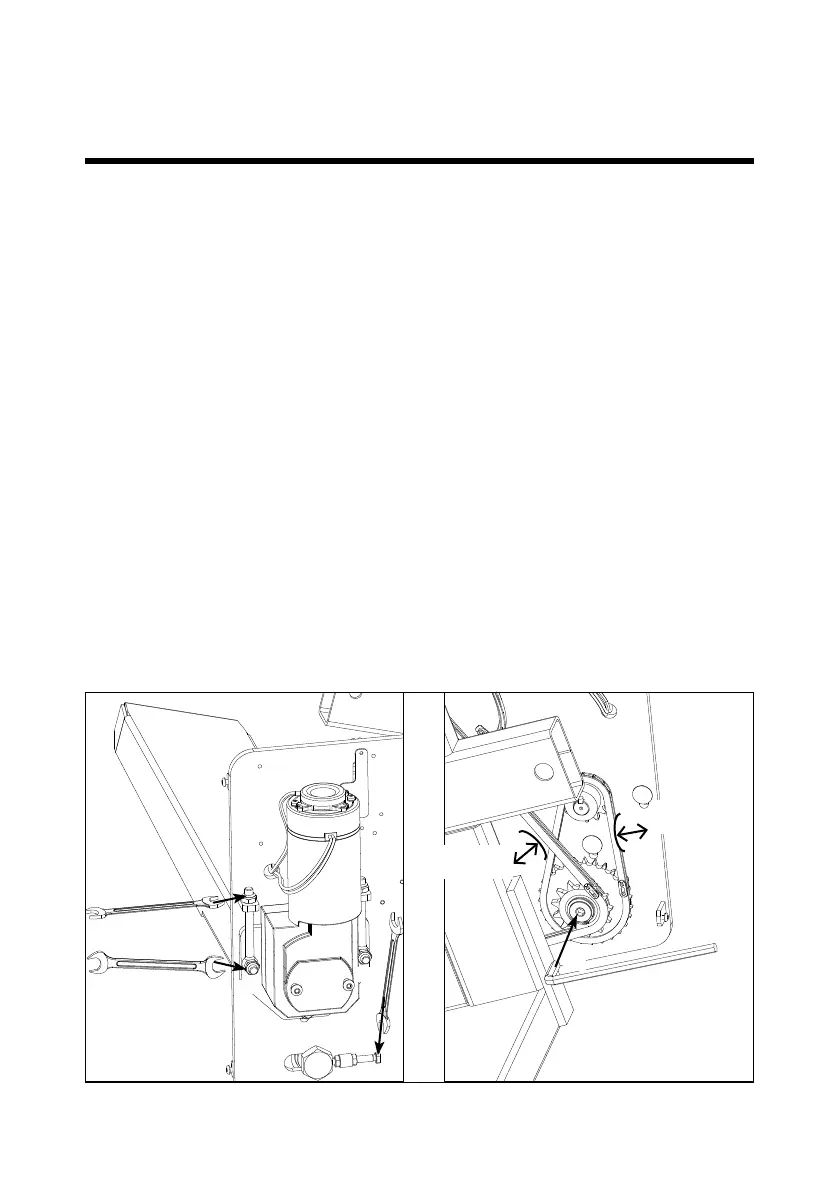

6.7 Adjusting the Rotator
Tensioning the chains
When the unloaded forks can be tilted manually approx. 5 cm, the chains should
be tensioned.
This is done by:
1. Removing the covers from the rotator carriage and the gear motor.
2. Loosening the gear motor (A1)
3. Loosening chain wheel (B1)
4. Turning the nut (B2), so that the fork chain is tensioned, until the slack is
about 5 mm.
5. Tightening the chain wheel (B1)
6. Tightening the nuts for the gear motor (A2), so that the chain is tensioned,
until the slack is about 2-3 mm. Tighten the nuts (A1) again.
7. Replace the covers.
NOTE! Check that the fork chain is tighened correctly in the whole rotation area
after adjusting the chains.
