Section 4 Disassembly and service
Disassembly / reassembly

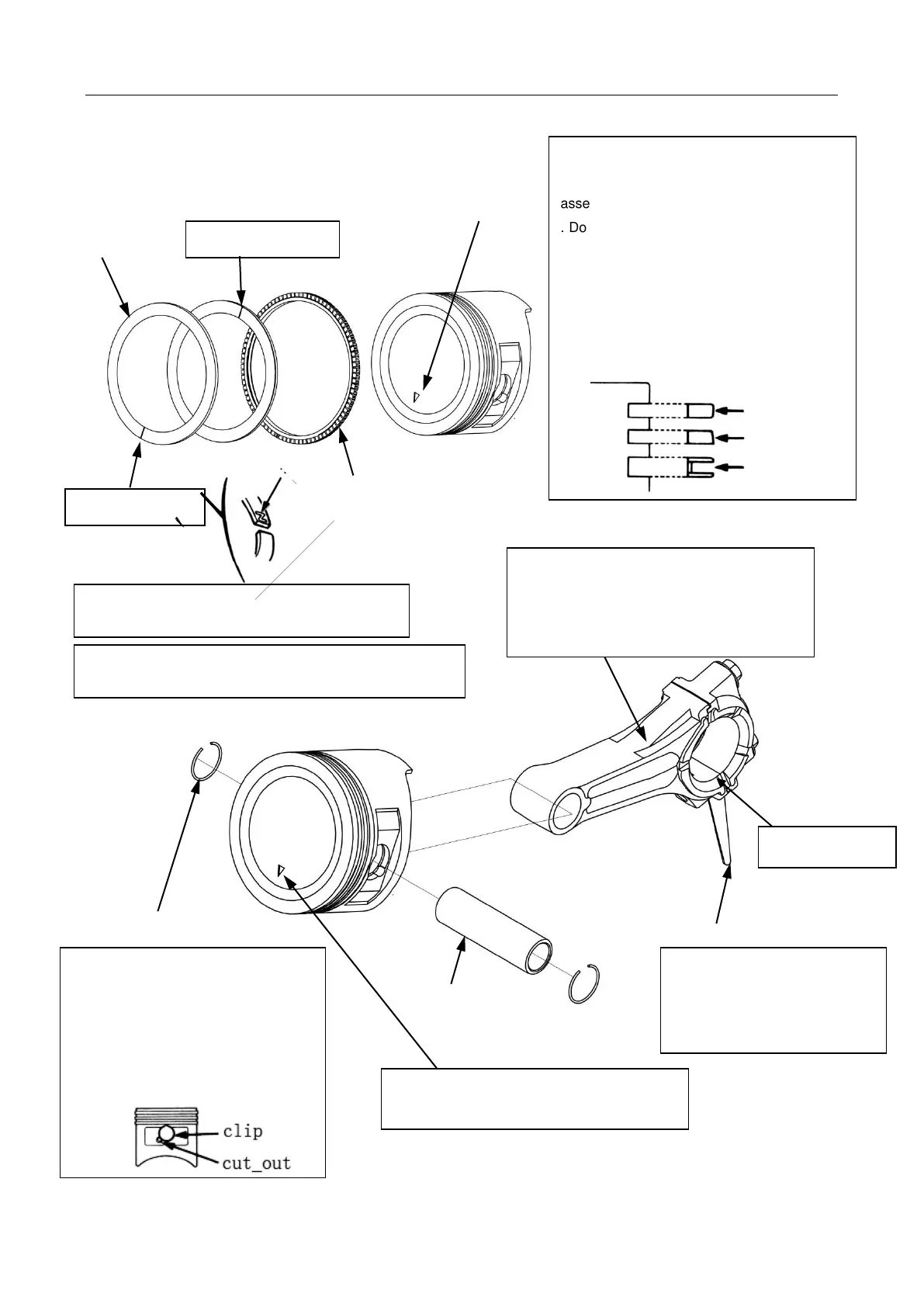

Piston connecting rod
Attention:
Oil Splash Spoon point
the same direction of the
Piston Rotation Arrow
Assembly:
. Put the piston ring sign facing up when
assembling.
. Don’t wrongly assemble the top ring and the
second ring.
. After assembling, be sure the piston can
freely move.
. Stagger the open of the piston to piston pin
hole with 120 degree.
First
ring
Second Ring
Attention: Piston Rotation Arrow
should point at Valve Lifter
Attention:
First and Second Rings are stagger 150°～210°
Attention:
Scrape Rings are stagger 150°～ 210°from the oil Ring
Piston Rotation Arrow
Assembly: Put the one end
into the piston slot, clamp
other end by sharp nose
pliers and revolve into slot.
Don’t let the open of clip
aiming at the piston pin slot.
Connecting rod
Assembly: Put the long end of the
connecting rod aiming at the
triangular mark when assembling
To Next Page
