Section 4 Disassembly and service
4.13 Governor
Disassembly / reassembly

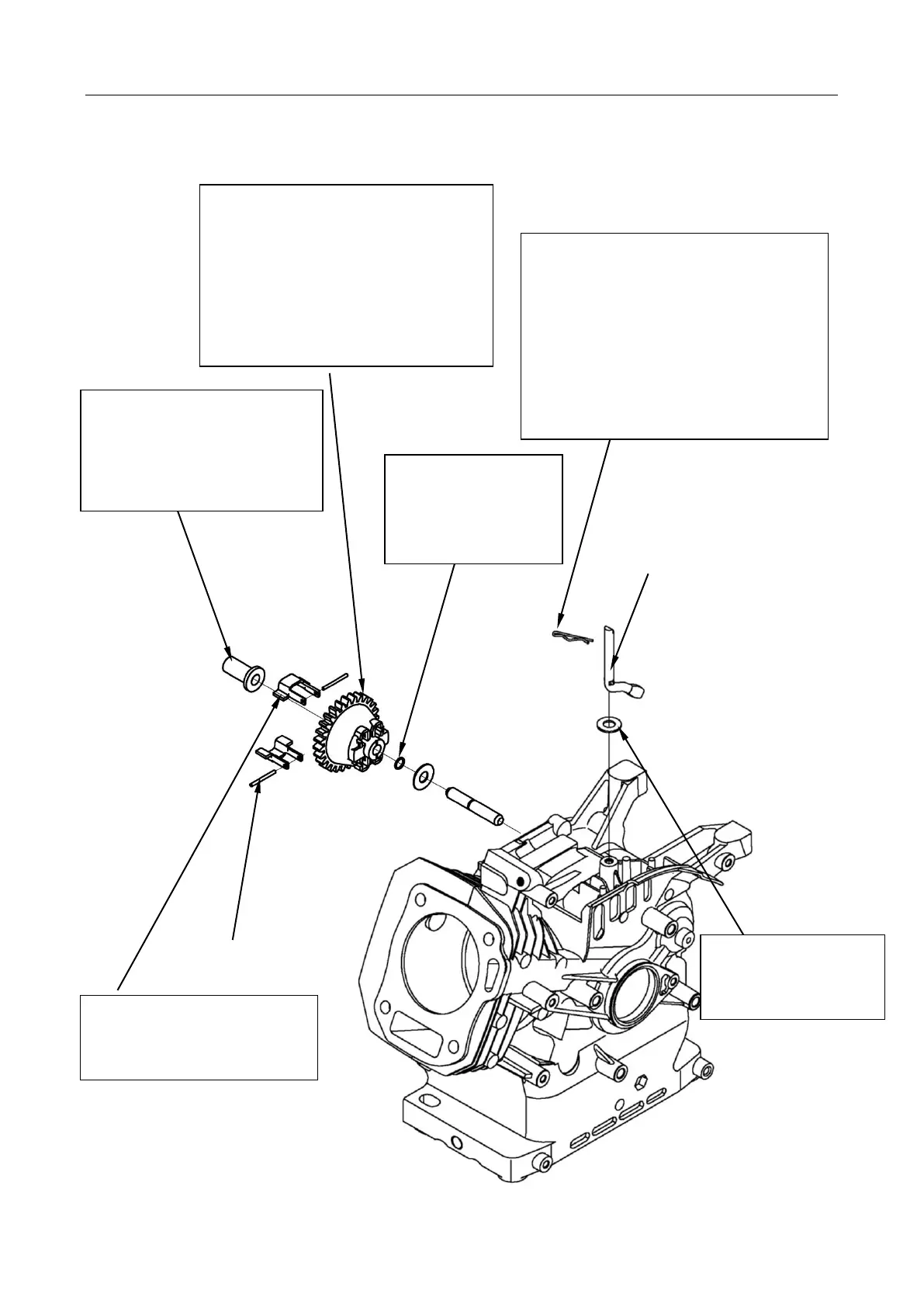

Assembly:
. Check the gear for no worn and
damaged before assembling.
. Check if governor flyweight has
been assembled before assembling
crankshaft.
Governor flyweight
Assembly: Check flyweight
for freely turning.
Clip:
Assembly: Firmly
snap in the slot of
the shaft.
Governor slider
Separate the governor
flyweight and fix in, then,
check for smoothly moving.
Washer
Assembly: Assemble
in the case
Assembly:
. Immediately fit the split pin after
assembling governor arm and move
the governor arm to against the
governor slider.
. Insert the straight side of the split
pin into the slot of the governor arm.
