LONCIN G250F - 4.6 Carburetor Service

Section 4 Disassembly and service
4.6 Carburetor
a、Disassembly/Reassembly
WARNING
Loosen the drain bolt and drain the carburetor before disassembling. Fuel vapor or
spilled fuel may ignite.
b、
Assembling:
Clean internal passages and orifice
with compressed air. Pay attention to
direction of pad when assembling
Insulating pad
Disassembly:
disassemble reset spring,
pull the carburetor out,
when throttle notch aligns
on line with lever, and pull
the governor lever off.

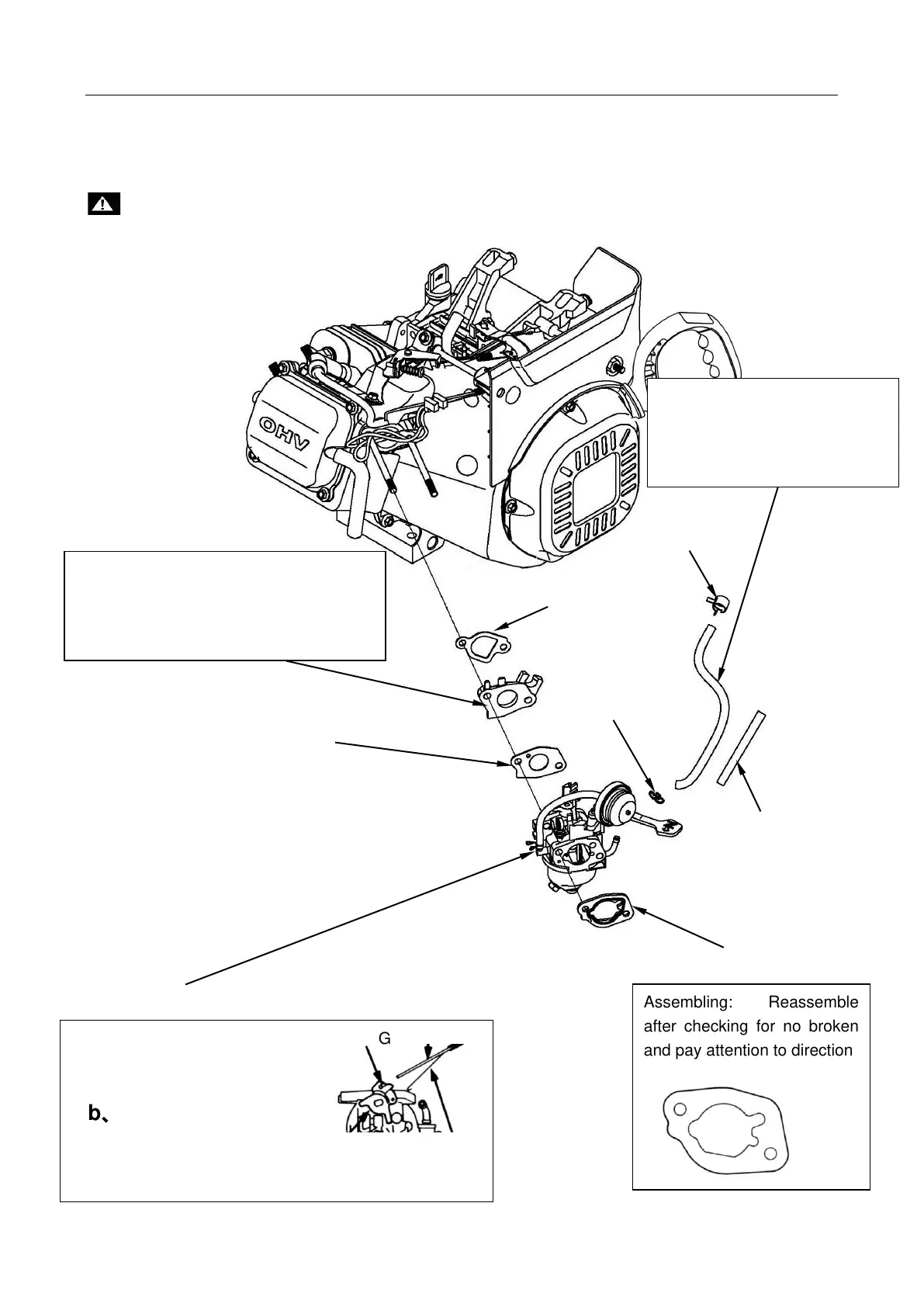

Carburetor
Insulator Gasket
Carburetor Gasket
Throttle
Reset spring
Governor lever
Notch
Air Cleaner Elbow Gasket
Assembling: Reassemble
after checking for no broken
and pay attention to direction
4-7
Fuel tube
Assembly: Check for no crack
or aged before assembling, if
necessary, please replace.
Safeguard tube
CLIP,TUBE
COLLAR
