Section 4 Disassembly and service

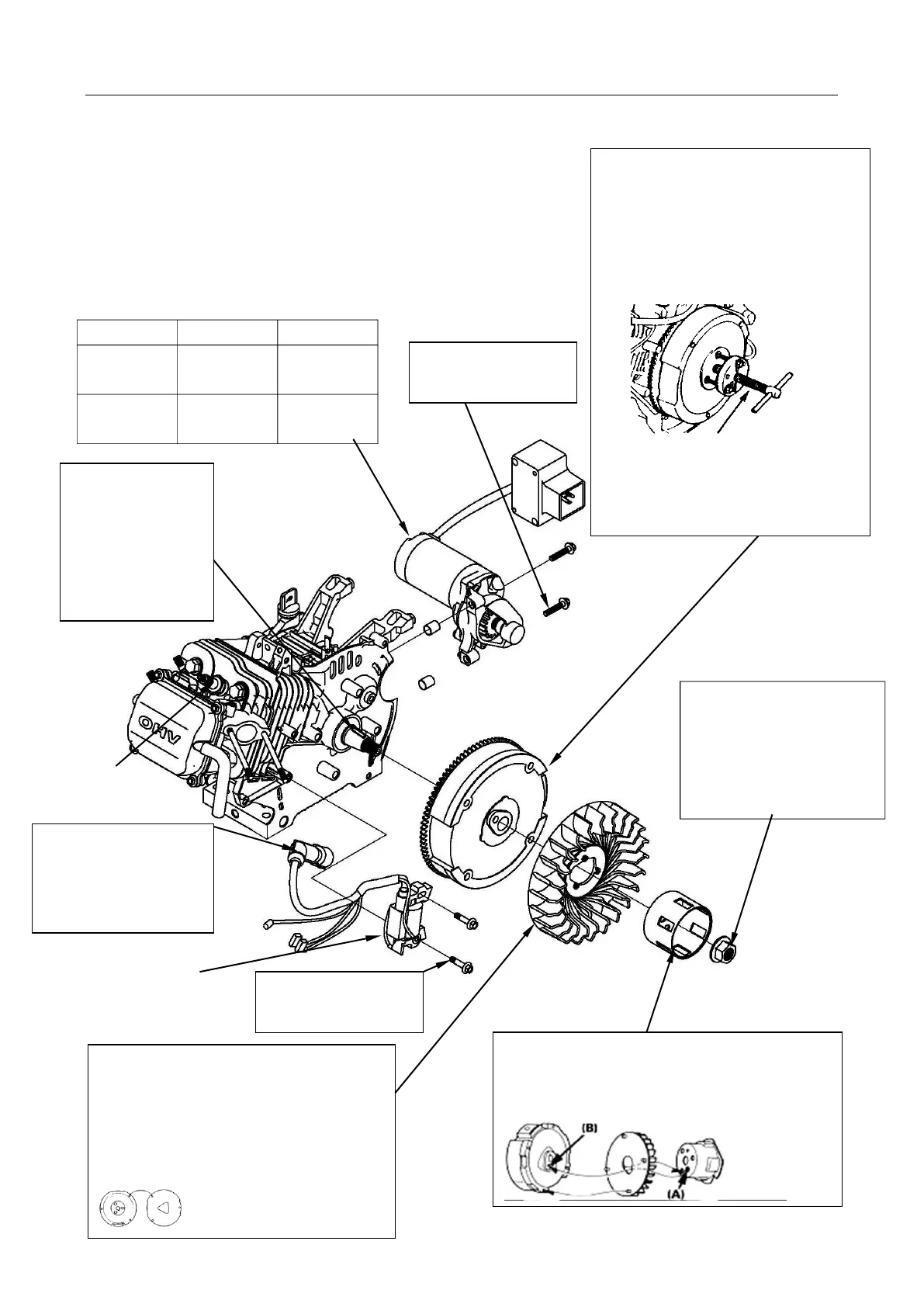

4.10 Flywheel, ignition coil
a、Disassembly/Reassembly
<Starting motor>
. Remove the igniting coil before
removing flywheel
. Don’t hit the flywheel with a
hammer. Remove as shown on
the drawing with a special tool.
Reassembly: Degrease the
crankshaft taper face and flywheel
hole, then assemble.
Start the motor, and measure motor
operation performance, if the operation
performance is not within the maintenance,
disassemble
After assembling,
check to be sure
that the woodruff
key is still in its
slot on the
crankshaft.
Caution: When servicing, take care not
to damage the fan blades.
Reassembly: Assemble the fan,
aligning the four lugs on the back of the
fan with the small holes in the flywheel.
Assemble, aligning the lugs on the starting
cup with the small holes in the flywheel
center
Assembly:
Check for cracked or
damaged insulation,
replace if necessary.
Bolt: M6×35, (2)
Torque: (8~12)N•m
80-90N.m (Apply engine
oil on the thread.)
Disassembly/reassembly:
Insert a screwdriver or
another tool into the hole
of starter pulley to prevent
flywheel from rotating.
Bolt: M6×25, (2)
Torque: (8~12)N•m
