Section 4 Disassembly and service

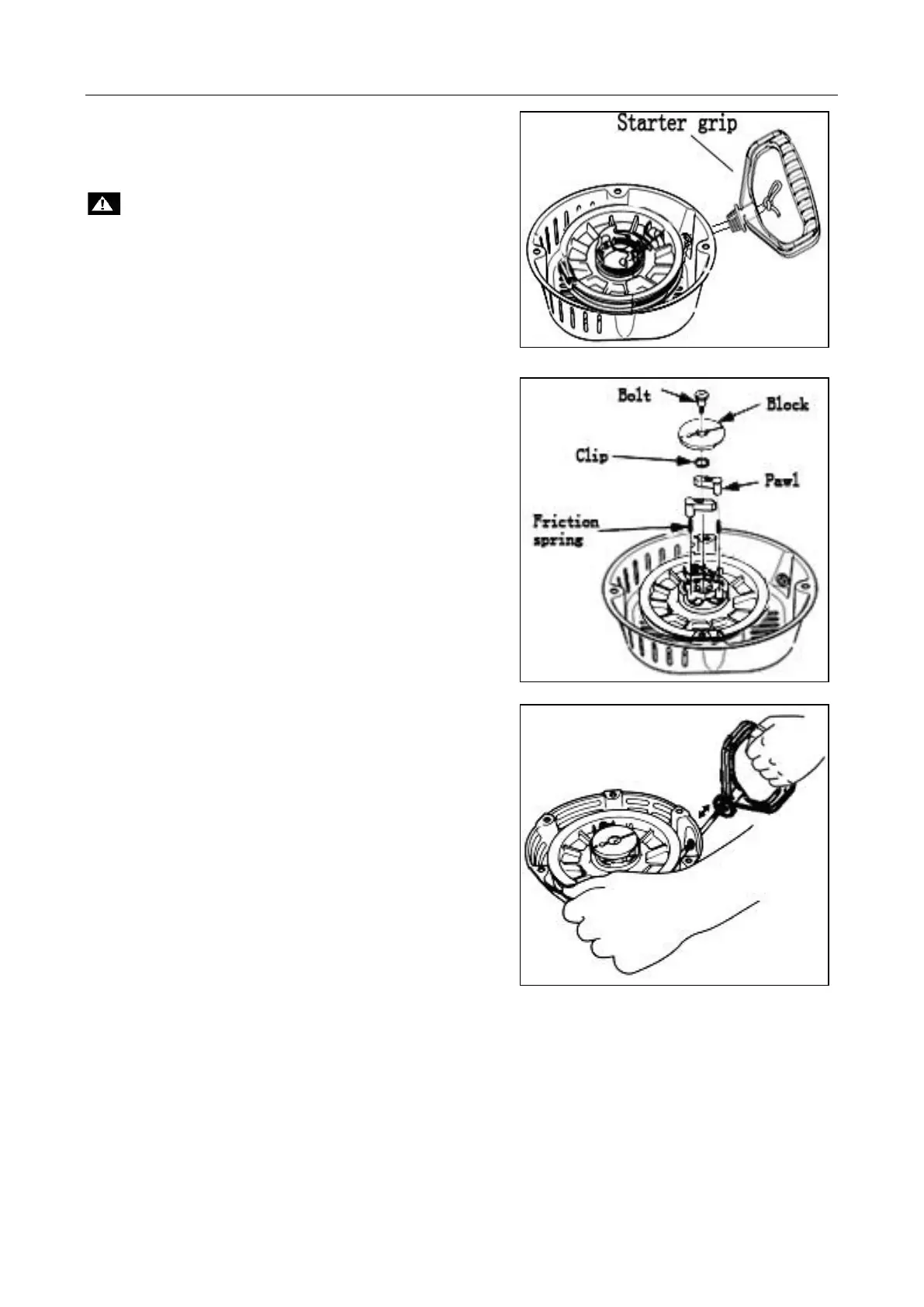

Pass the starter rope through the starter tray, and
tie as shown as drawing.
WARNING
Don’t allow the starter wheel leaving off the starter
tray, otherwise, the spring fly out to injure person.
Assemble the pawl and friction spring together on
the starter wheel, tighten the bolt of bolt.
Pull the starter rope several times to make sure if
the pawl moves correctly.
