Section 4 Disassembly and service

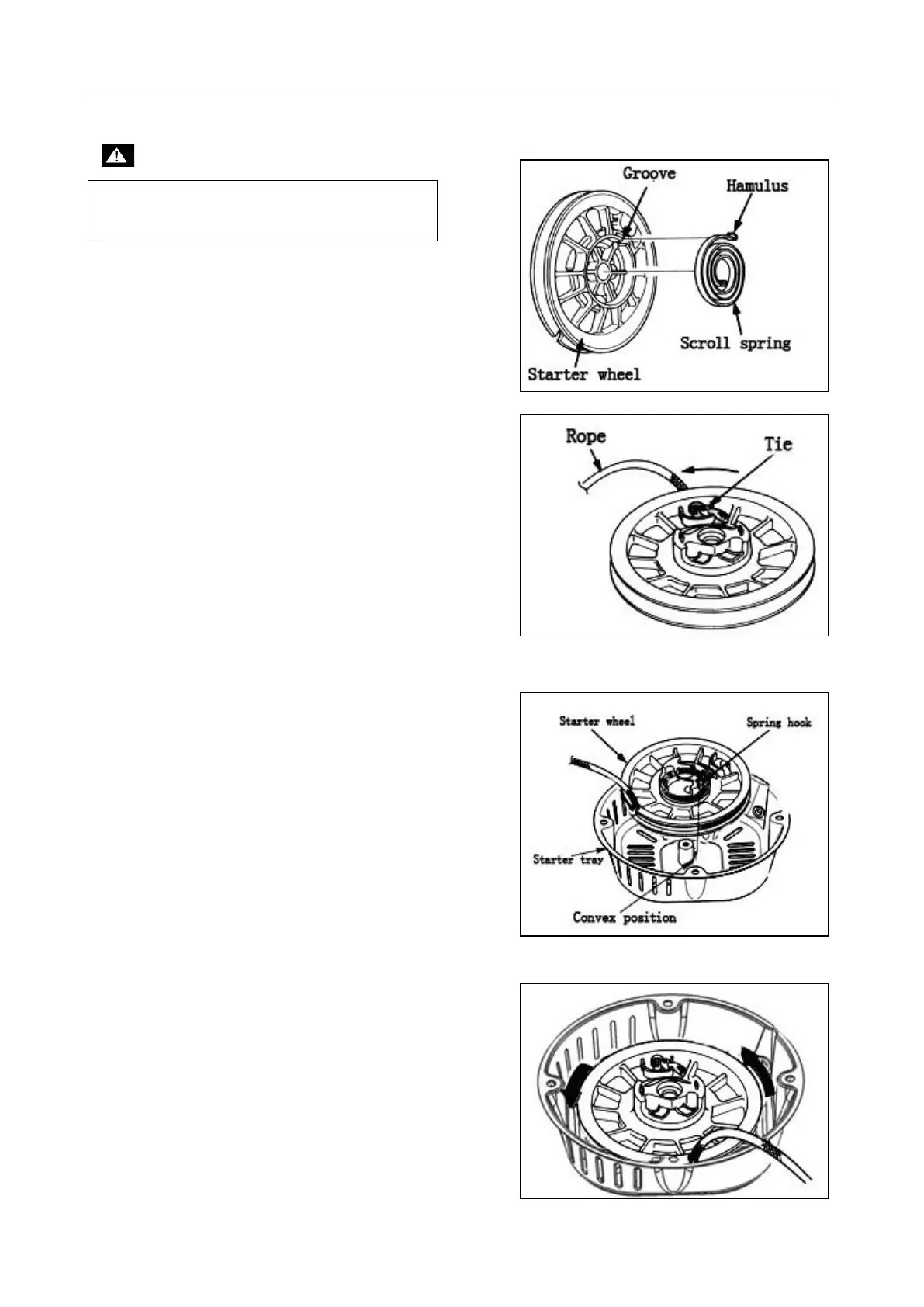

b、Recoil starter assembly
WARNING
Insert the hook on the outer side of the scroll
spring into the hole of the starter
Pass the rope through the hole of the starter wheel
and tie the end of rope (shown on drawing ), wind
the rope onto the reel in the arrowed direction ,
and remain about 30cm outside the starter wheel.
Note： Make sure remaining about 30cm rope
outside the starter wheel.
Assemble the starter wheel on the starter reel,
insert the hook on the inner side of scroll spring on
the convex position of starter dray.
Grasp the starter grip and pre-turn starter wheel
two turns as shown as arrow direction.
Wear gloves and eye protectors.
Don’t let the spring out when disassembling.
