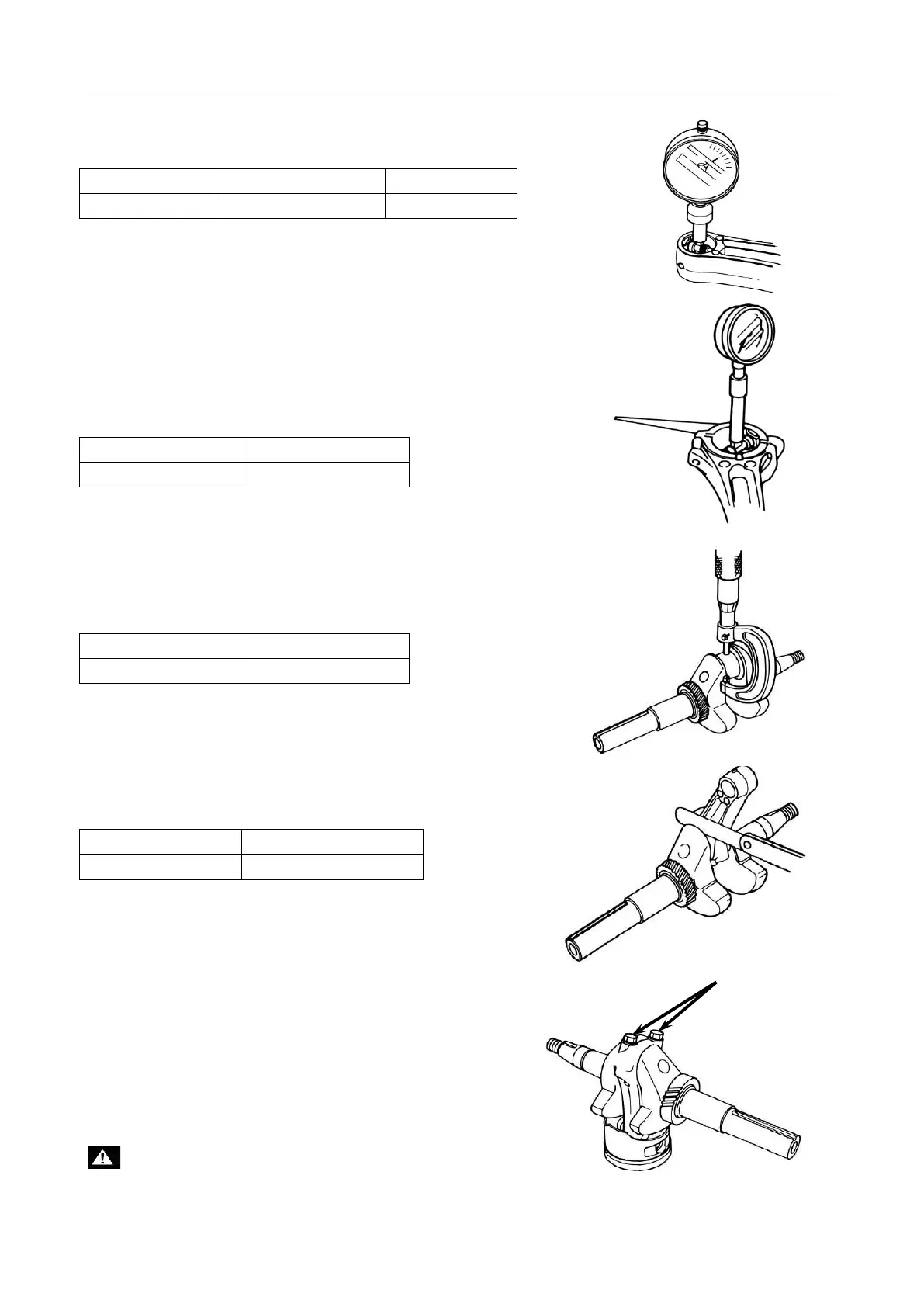

Section 4 Disassembly and service
Connecting rod small end ID
Connecting rod big end ID
Original size
Crankshaft pin OD
Connecting rod big end axial clearance
Connecting rod big end oil clearance(Radial)
1) Clean all oil from the crankshaft neck journal
and inside side.
2) Place a piece of plastic gauge on the crankshaft
neck journal, assemble connecting rod, and tighten
the bolts to specified torque.
Bolt torque：14 N·m
