CHAPTER III MACHINE OPERATION
39
3. Before using the safety belt, inspect whether the lock of the safety belt can function normally or
not.
3.2.5 THE USE OF SECURITY ROD
3.2.5.1 Before engine starts, pull down the security bar, that is locked state. As shown in figure 14:

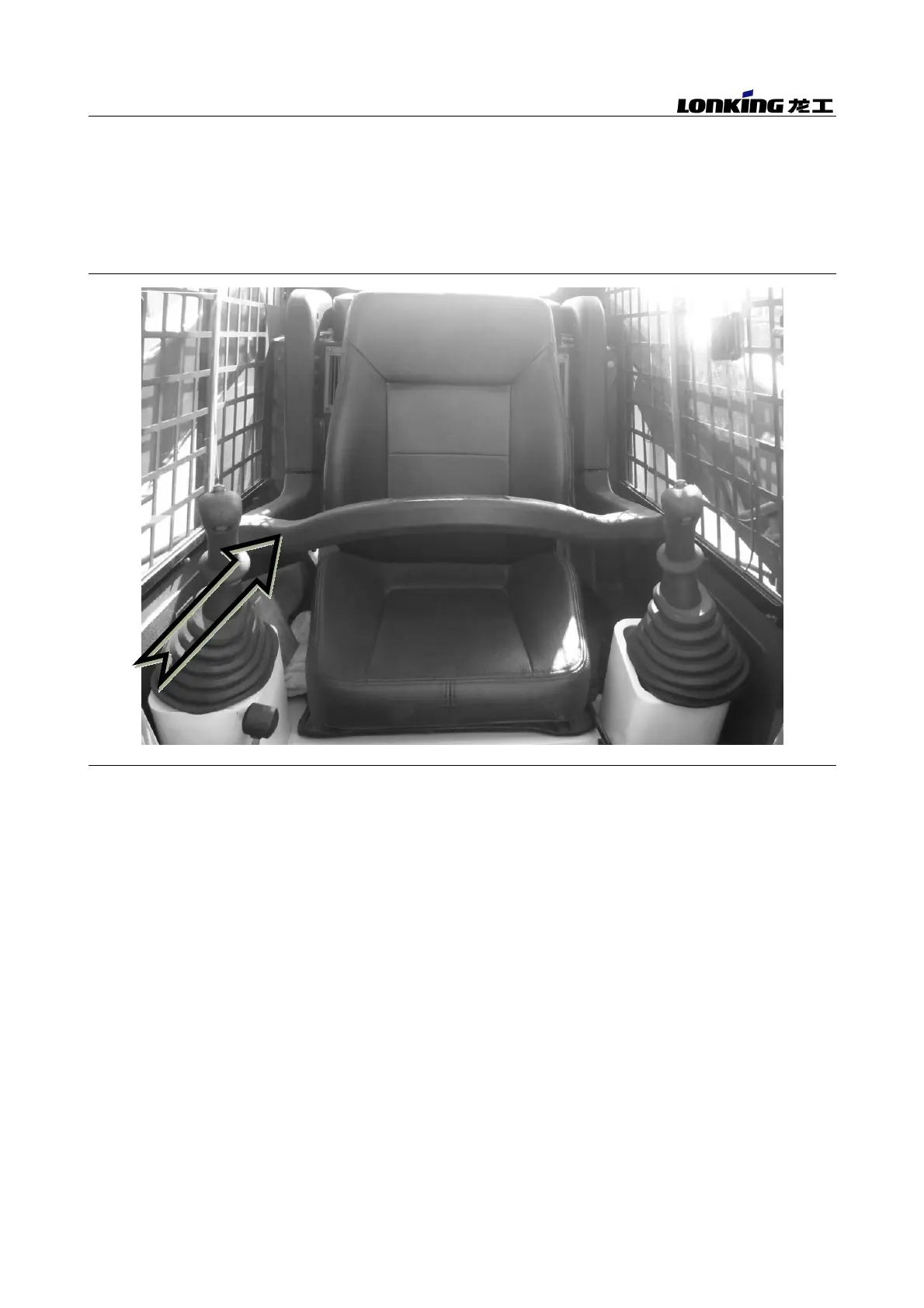

Figure 14 SECURITY ROD
3.2.5.2 Security rod: Security bar is very important for operator, when a sudden stop during the
moving, it will protect the driver from the forward force and keep the driver safely on the seat. At the
same time can be used as handrail.
3.2.5.3 When the safety rod lifts, the sensor of the safety rod is cut off, once the safety brake is
locked, the whole hydraulic and driving system will be locked, so the bucket and booms can not work
anymore. Lowered the safety lever to the horizontal position, the sensor is connected, so the braking
light of the electrical meter will be turned off , and then the driving and boom hydraulic system will
function again, in order to operate the machine normally. (As shown below)
