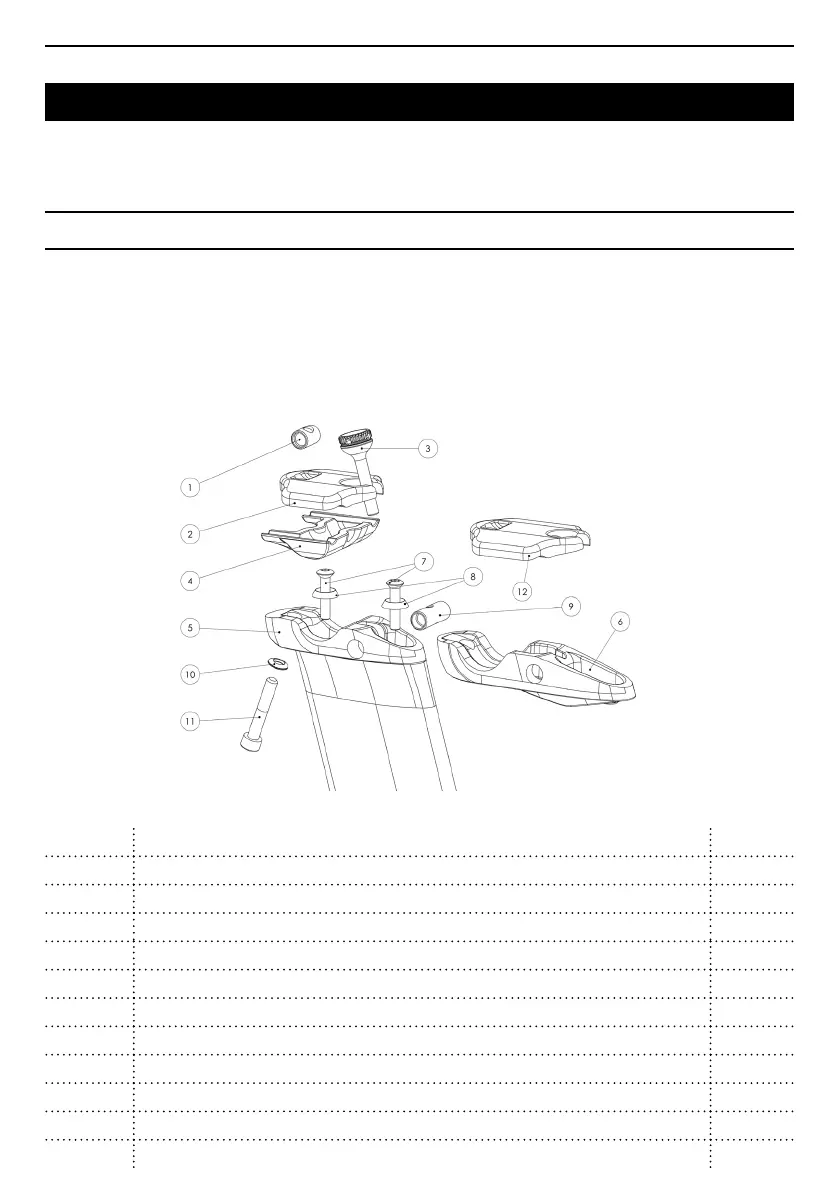

INSTALLING THE SADDLE CLAMP
Before cutting your seat tube, please assemble the saddle clamp with the provided ttings.
Select either the short or long saddle clamp depending on the fore-aft position required. These saddle
clamps are reversible to achieve the desired position and virtual seat post angle. Each must be used with its
respective clamp plate: short clamp + short clamp plate / long clamp + long clamp plate.
1 M6 10x14 barrel nut x1
2 Short clamp plate x1
3 Adjustment roller - threadlocker ex: LOCTITE 243 x1
4 Asymmetrical cradle x1
5 Short clamp x1
6 Long clamp x1
7 TBXF M5x25 screw - Torx T25 - 5Nm - threadlocker ex: LOCTITE 243 x2
8 Conical M5 washer x2
9 M6 10x25 barrel nut x1
10 Spherical washer x1
11 M6x35 screw - Allen HEX5 - 8Nm - threadlocker ex: LOCTITE 243 x1
12 Long clamp plate x1
