INSTALLING THE FRONT WHEEL FITTINGS
In the case delivered with your bike, you will nd a bag containing all the necessary parts to install the ttings
compatible with your wheels.
These ttings allow you to mount a Ø12mm, at seat thru axle or a standard axle depending on the type of
wheels used.

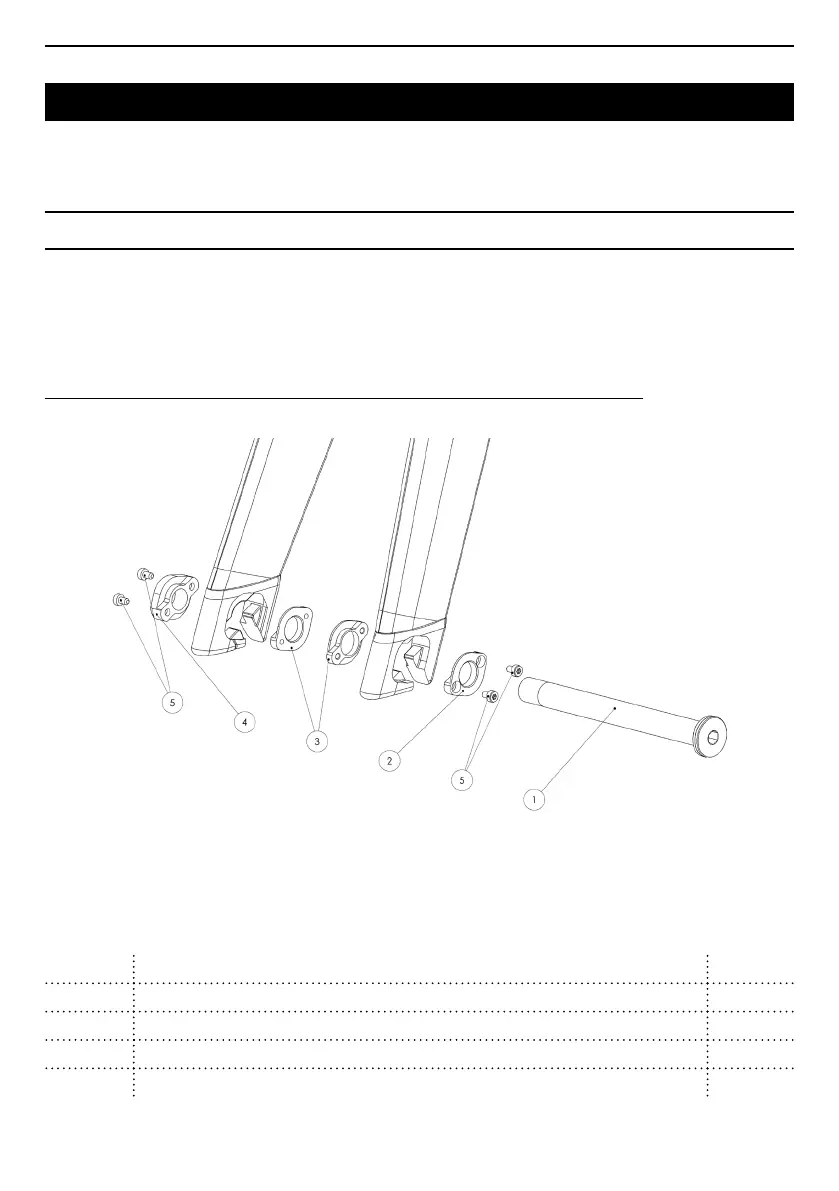

EXPLODED VIEW OF THE FRONT WHEEL FITTINGS FOR A Ø12MM THRU AXLE
1 12mm front thru axle - Allen HEX 6 - 10Nm - greased x1
2 Smooth washer x1
3 Threaded washer x2
4 M12 nut x1
5 M3x5 screw - Torx T10 - 1Nm - threadlocker ex.: LOCTITE 243 x4
