Look T20 - Installing the Bicycle Fork

5
EN

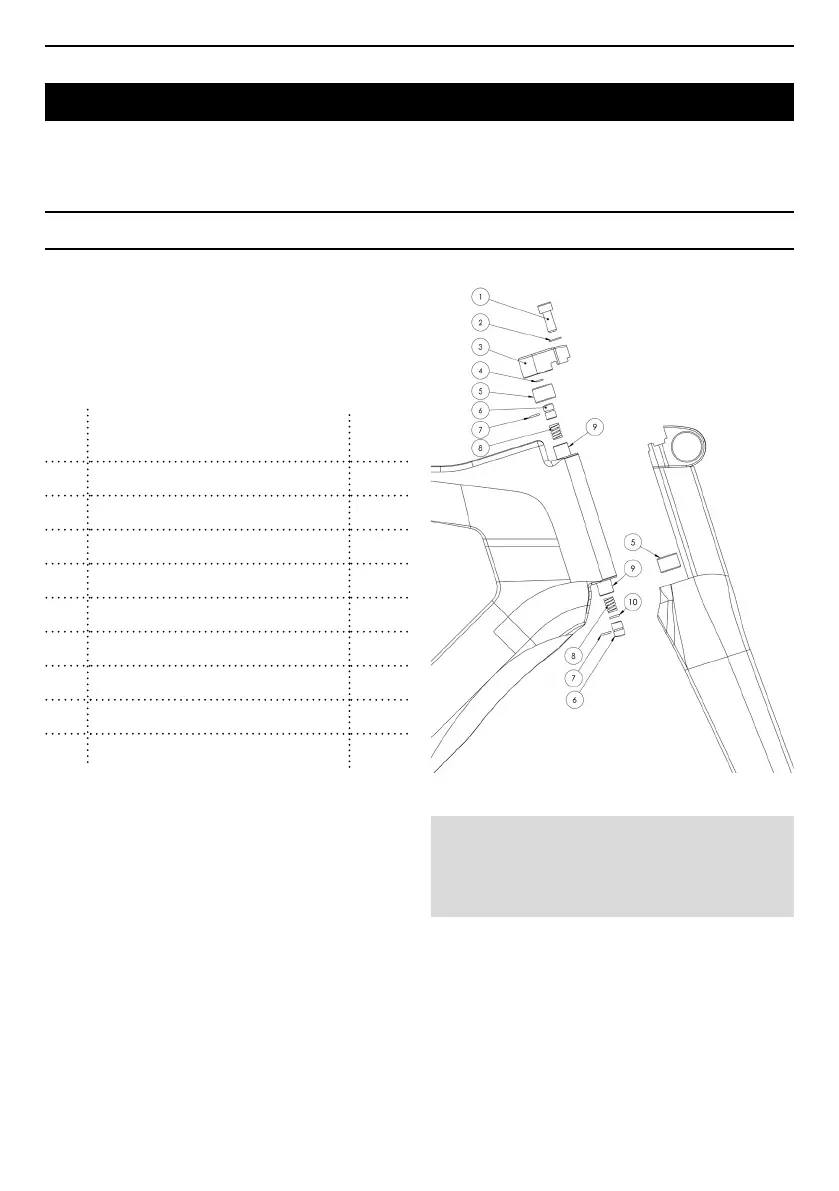

When assembling, disassembling and/or servicing
your bicycle, please refer to the diagram below to
ensure all the headset parts are in the correct posi-
tion and order.
* Upper parts 3, 4 & 5 are delivered pre-assembled.
* Lower part 5 is delivered tted into the fork.
* The steerer tube (9) ts into the frame.
Note : The CHC M8x20 screw (1) must be coated
with a medium threadlocker such as LOCTITE
243
TM
and tightened to a torque of 8 Nm
1
CHC M8x20 screw - Allen HEX 6 - 8Nm -
threadlocker ex.: LOCTITE 243
x1
2 Steerer tube I stem spacer x1
3 Headset cap x1
4 Spacer 6.2x1* x1
5 Needle roller bearing* x2
6 Steerer spring block x2
7
Piston seal x2
8
Steerer spring x2
9
Steerer tube* x2
10
Spacer 9.5x1.5 x1
INSALLING THE FORK
