22
EN
Please not that it is important to always follow
the mounting instructions described above.

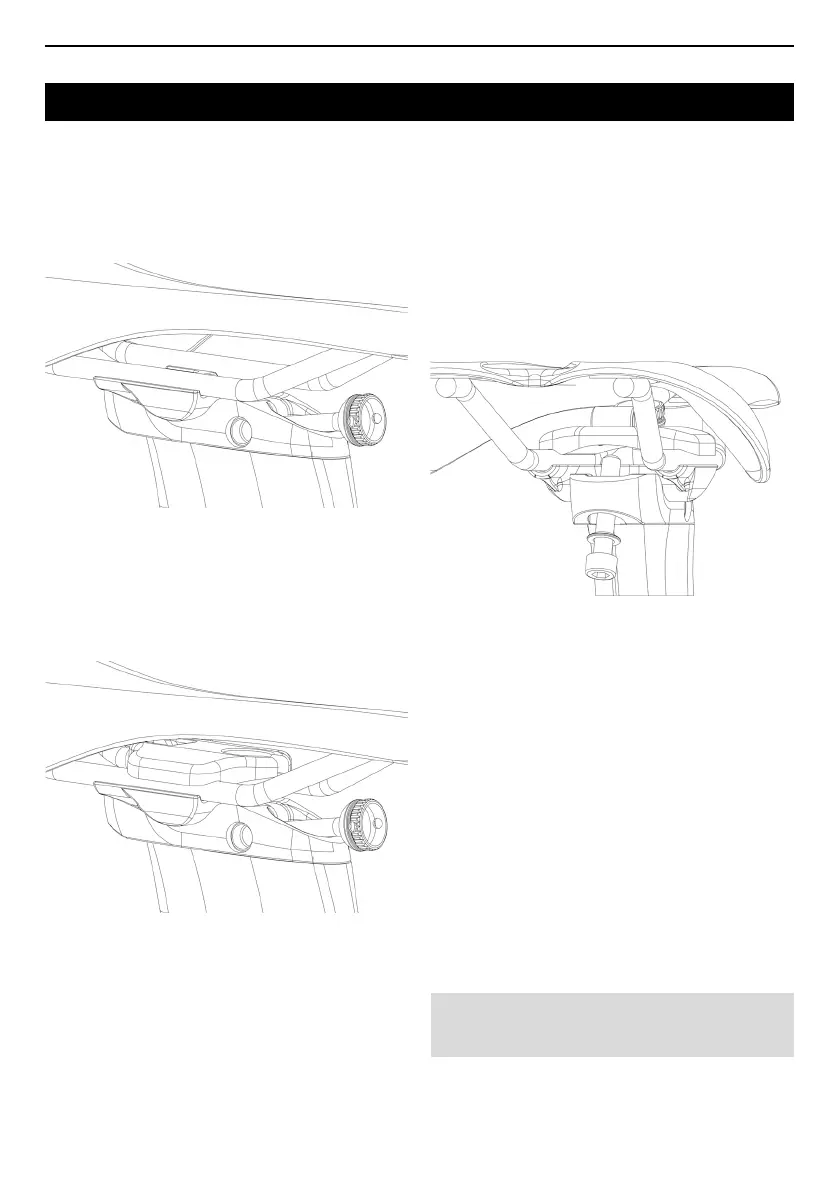

6 I Position the clamp plate over the saddle rails
so that they are locked between the plate and the
asymmetrical cradle.
5 I Place your saddle in the cradle (the ttings are
compatible with all saddle rail types).
7 I Insert the spherical washer and M6x35 screw
into the M6 10x14 barrel nut and pre-tighten. Lift the
roller in the saddle clamp and use it to adjust the
saddle tilt. Tighten to a torque of 8Nm using a torque
wrench tted with an Allen HEX5 head..
Tightening or loosening the roller allows you to
precisely adjust the saddle angle. Before every
adjustment, loosen the rear M6x35 screw, twist
the roller to adjust the saddle angle and re-
tighten the rear screw.
The holes through the side of the roller allow you to
slide an Allen key or other tool through the roller to
assist with rotation if it is difficult to do so with your
ngers.
The roller also allows you to memorise your
saddle angle for future reference. Simply remove
the rear M6x35 screw and tilt the roller forward
without unscrewing it. When reassembling your
components, tilt the roller back into position in the
saddle clamp and tighten the rear screw again to a
torque of 8Nm.
