29
EN

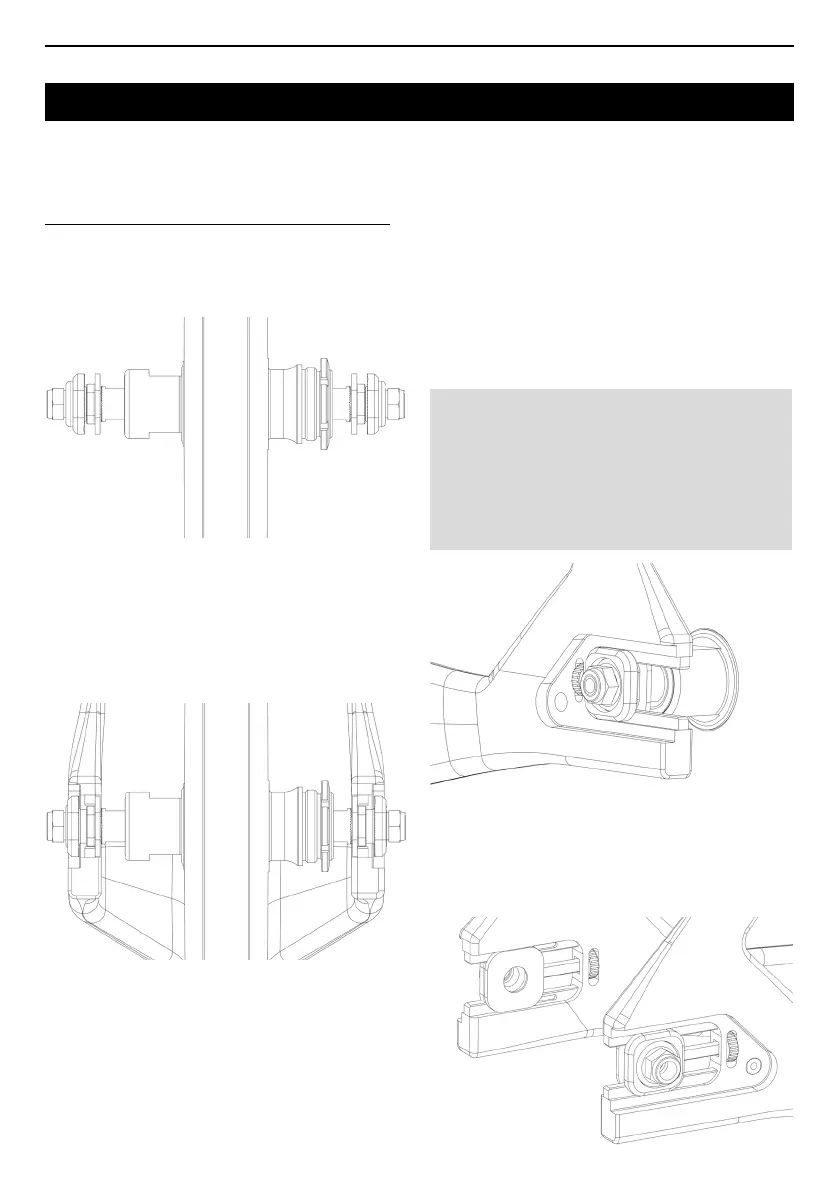

1 I Place the wheel in the frame so that the metal
surfaces of the rear dropouts t between the counter
plates (inside) and support plates (outside).
2 I Adjust the chain tension and tighten the axle
nuts. The axle nuts slot into the dedicated recesses.
Mount the standard axle ttings on the axle (the counter plates are used on both the thru axle and standard
axle setups), without tightening completely.
4 I Ensure the adjustment screws rest against the
assembled plates by turning the adjustment rollers
on each side. This will prevent the wheel sliding
forward under intense pressure.
INSTALLING THE STANDARD AXLE FITTINGS
CAUTION : the plates must rest on the metal
surfaces, not on any carbon part as this could
sustain damage.
Excessive tightening of the axle nuts (torque
above 10Nm) can cause permanent damage
or deformation of the ttings, and affect the
efficiency of the wheel locking system.
